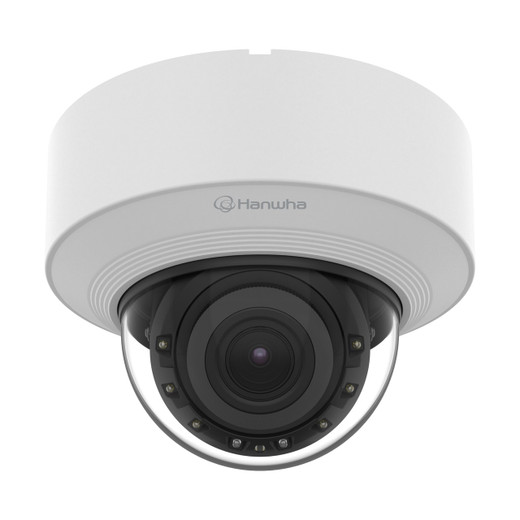

Hanwha XND-C7083RV 4MP Vandal-Resistant Dome IP Camera

Hanwha XND-C7083RV 4MP Vandal-Resistant Dome IP Camera

Overview

The Hanwha XND-C7083RV is a 4MP indoor dome camera built for surveillance deployments where coverage flexibility and object intelligence matter. Its motorized zoom lens (2.8–10mm) lets you adjust field of view without physical lens swaps—a practical advantage when you're commissioning multiple cameras and need to dial in coverage per location. The 2592 × 1520 resolution and varifocal design trade some per-pixel density against lens versatility; if you need maximum detail from a single, fixed viewing angle, a higher-megapixel fixed-lens unit may be a better fit.

The XND-C7083RV (often searched as XND C7083RV) pairs standard PoE power with on-camera AI analytics—object detection, directional detection, enter/exit, and line-crossing logic run locally on the device. This reduces VMS processing load and lets you trigger alerts at the edge without uploading raw video. H.265 compression further reduces bandwidth and storage costs by roughly 40–60% compared to H.264, a meaningful factor on 24/7 recording across multiple cameras.

Key Features

• Motorized Varifocal Lens (2.8–10mm): Adjust focal length without swapping optics. Covers wide hallways down to narrow corridors or fixed-point monitoring—one lens handles multiple deployment scenarios, reducing SKU complexity and spare-parts overhead.
• 4MP Resolution (2592 × 1520): Adequate for identifying faces and objects at typical indoor distances (10–25 feet). Trade-off: not a 5MP or 8MP unit, so zoom-in forensics will show less per-pixel detail. Best paired with wide-angle deployment rather than long-distance monitoring.
• AI Object Detection & Classification: Embedded AI engine detects and classifies people, vehicles, and objects in real time. Reduces false alarms from shadows or animals—meaningful on premises with frequent motion (parking lots, retail entries) where alert fatigue is a cost driver.
• WiseIR Night Vision (131 ft / 40m): Built-in 850nm IR LEDs deliver usable grayscale video in total darkness. 131 feet covers most indoor spaces; outdoor perimeter use would benefit from higher-power external IR or a dedicated outdoor camera with greater range.
• H.265 & H.264 Codec Support: H.265 cuts bitrate roughly in half at equal quality—important for bandwidth-constrained deployments or multi-camera NVR storage planning. Falls back to H.264 for older VMS systems that don't decode H.265 natively.
• extremeWDR (Wide Dynamic Range): Balances bright and dark areas in scenes with mixed lighting (e.g., hallways with skylights, warehouse loading docks). Prevents blown-out highlights or crushed shadows, preserving forensic detail across lighting transitions.
• IP52 & IK08 Environmental Ratings: IP52 protects against dust and water splash—suitable for indoor dusty environments (warehouses, factories) but not direct rain or high-pressure wash. IK08 means it withstands significant physical impact (not accidental bumps only), useful for high-traffic or vandal-prone areas. Skip this model if you need full submersion (IP67) or extreme impact protection (IK10).
• PoE Power (IEEE 802.3af, Class 3): Draws under 13W, so standard 802.3af PoE switches won't strain. No separate 12VDC supply needed, simplifying cabling and reducing install labor. Verify your switch has available power budget on per-port or global basis.
• Gyro-Stabilized Image: Built-in gyroscope compensates for camera shake in real time. Useful if ceiling-mounted dome sits on flexible framing or if vibration from HVAC/machinery affects adjacent walls. Not a substitute for structural isolation but helps reduce jitter-induced compression artifacts.
• Business Intelligence (People Counting, Heat Mapping, Queue Management): AI-based analytics count occupants, map foot traffic density, and track queue lengths. Useful for retail conversion analysis or warehouse traffic flow optimization. Requires integration with a business intelligence platform or custom third-party application via open API.
• MicroSD Local Storage (up to 512GB assumed): Onboard card slot for failsafe recording if NVR or network link goes down. Limits storage to hours rather than weeks but prevents gaps in critical moments. Clarify card capacity and retention period per your security policy.
• Dual I/O Ports (Alarm): Connect two external alarm inputs or relay outputs—useful for integrating door sensors, panic buttons, or triggering external strobes or intercoms on detection events.

Integration & Compatibility

The XND-C7083RV supports ONVIF and industry-standard IP surveillance platforms. Open API support allows custom third-party application integration for specialized workflows. Consult your NVR or VMS manufacturer's camera compatibility list before deployment; while ONVIF Profile S compliance is industry norm, older or proprietary systems may require firmware updates or specific configuration.

Operating temperature range is 14°F to 122°F (–10°C to 50°C), suitable for most indoor climates. If mounting in unheated attics, server rooms, or outdoor-equivalent spaces, verify this range covers your environment.

When to Choose a Different Model

If your deployment requires higher-megapixel fidelity (8MP+), fixed single focal length (to minimize mechanics and cost), or outdoor IP67/IK10 ratings, consider other models in the Hanwha surveillance line. For long-distance outdoor perimeter monitoring, look at dedicated outdoor bullet or PTZ cameras. If people or vehicle recognition is the primary driver and budget allows, confirm the AI model version supports those taxonomies before committing.

Frequently Asked Questions

Q: Does the XND-C7083RV support ONVIF?

A: Yes, the camera supports ONVIF-compliant integrations, making it compatible with most major VMS platforms including Milestone, Genetec, and others that implement ONVIF Profile S. Verify your specific VMS version for confirmed support.

Q: What is the actual IR range of the XND-C7083RV?

A: Built-in WiseIR extends to 131 feet (approximately 40 meters) in total darkness. Actual usable range depends on reflectance of objects and lens settings; moving the zoom lens toward wider angles may reduce effective range slightly.

Q: Can the XND-C7083RV be used outdoors?

A: The IP52 rating means it tolerates dust and water splash in sheltered locations, but it is not rated for direct rain or high-pressure wash. For true outdoor exposure, select an outdoor-rated model (IP66 or higher).

Q: Does the motorized zoom lens require additional power or special wiring?

A: No. The zoom mechanism draws power from the single PoE connection; no auxiliary control lines or separate 24VDC supplies are required. Zoom is typically controlled via VMS client or REST API calls.

Q: What compression modes does the XND-C7083RV support?

A: The camera supports H.265, H.264, MJPEG, and WiseStream (AI-adaptive compression). H.265 is the most storage-efficient; confirm your NVR or archival system can decode H.265 before making it the default.

Q: Is the XND-C7083RV suitable for warehouse or high-dust environments?

A: Yes. The IP52 rating protects against dust ingress, and the IK08 vandal rating handles impact from machinery or material handling. Ensure mounting location avoids direct water spray or high-pressure cleaning.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XND-C7083RV lands in a practical middle ground for indoor surveillance—not the highest resolution or toughest rating, but a capable all-rounder if you prioritize lens flexibility and edge AI. The motorized 2.8–10mm zoom is the real draw here. On a 50-camera indoor deployment (retail floors, office corridors, warehouse aisles), a single SKU with zoom capability reduces spare parts complexity and gives your field team room to dial coverage without returning to stock. That motor also demands PoE power management discipline: 12–13W per camera across 50 units is 600–650W of switch capacity—not trivial on older switches rated for 240W total PoE budget.

Technical Highlights:

• Motorized Varifocal (2.8–10mm): Single lens covers roughly 3.5:1 zoom range—enough to shrink field of view by 70% without optics swaps. Control via REST API or VMS client. Useful for retrofit jobs where mounting height is fixed but desired coverage changes post-commissioning.
• H.265 + WiseStream III: H.265 typically reduces bitrate 40–60% versus H.264 at equal quality. At 4MP 30fps, expect ~3–5 Mbps on H.265 depending on scene complexity. Multiply by camera count to estimate NVR incoming bandwidth and storage sizing—a meaningful calculation if your network link is 100Mbps shared or your NVR drive array is sized for older, higher-bitrate codec assumptions.
• AI Object Detection + Line Crossing: Runs on device, not on VMS. Detects people, vehicles, or objects and fires alerts without backhaul. For retail crowd-density or warehouse intrusion scenarios, edge analytics cuts false-alarm noise and VMS CPU load. Note: taxonomy (people vs. vehicles vs. bicycles) depends on Hanwha AI model version; confirm your use case aligns with published object classes before final spec approval.
• IK08 Vandal Rating: Resists focused impacts up to 50J. Not rated for sledgehammer-level abuse, but sufficient for high-traffic zones where accidental elbow strikes or pushed luggage is the threat. If cameras are in high-risk theft or sabotage areas, pair with protective housings or consider higher-impact enclosures (IK10).

Deployment Considerations:

• PoE power budget: 12–13W per unit requires accurate switch capacity accounting. On a 48-port 802.3af switch (typically 240W total), you can deploy roughly 18–20 XND-C7083RV units. Exceed that and you're stepping up to PoE+ (802.3at) infrastructure or adding auxiliary PoE injectors—both cost and complexity adders.
• Zoom mechanics and IP52 sealing: Motorized lenses introduce moving seals. IP52 is splash-resistant, not splash-proof. If cameras sit inches away from steam sources (kitchens) or high-humidity zones without air movement (basements), condensation can migrate past the lens seal and degrade image over months. Verify thermal management in your mounting environment.
• H.265 codec support in existing VMS: If your Milestone, Genetec, or Axis Camera Station deployment is 3+ years old, H.265 decode may require firmware or license updates. Test on a pilot unit before roll-out; forced re-encode to H.264 at the NVR negates bandwidth savings.

The XND-C7083RV fits indoor multi-camera deployments (retail chains, office parks, university campuses) where you need zoom flexibility, edge AI for alert triage, and PoE-only power. Skip it if you're outdoor-focused, need extreme pixel density for facial recognition from 50+ feet, or operate in extremely dusty or explosive-atmosphere environments (use a sealed, sealed box camera or explosion-rated enclosure). For warehouse automation facilities with conveyor monitoring or dock surveillance, it's a solid performer paired with a modest NVR and standard Ethernet backbone.
