Overview

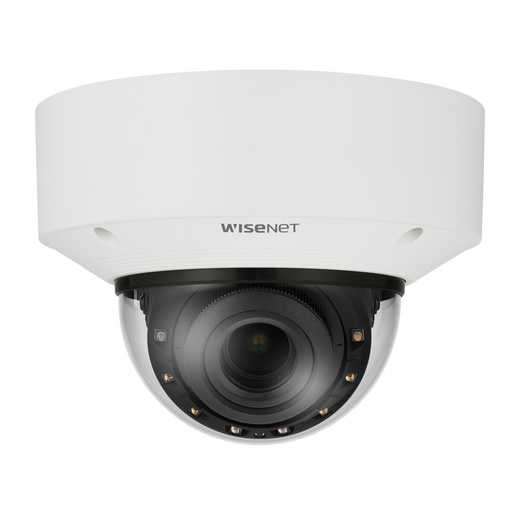

The Hanwha XNV-C7083R is a professional 4MP outdoor surveillance dome engineered for perimeter protection, critical infrastructure, and high-exposure environments where weather durability and tampering resistance are non-negotiable. This camera combines motorized optics with onboard AI analytics to shift from passive recording to active threat detection—reducing false alarms and storage overhead on 24/7 installations.

Key Features

• 4MP Resolution (2592×1520): Delivers sufficient detail for person and vehicle identification across medium-to-long range deployments. Pair with the motorized zoom (below) to maintain clarity at both wide context and telephoto distances.
• 2.8–10mm Motorized Varifocal Lens with 3.6x Optical Zoom: One lens covers both wide perimeter views and focused telephoto detail without swapping optics. DC auto iris and IR correction track changing light conditions automatically, reducing manual reconfiguration on site.
• 40-Meter IR Illumination (131 ft) with 0 Lux Capability: Delivers usable night vision in complete darkness via 850nm IR LEDs. At 0 Lux with IR active, you skip the ambient light dependency—critical for unlit perimeters and after-hours monitoring. Achieves 0.0038 Lux in black-and-white without IR, so dusk/dawn scenes remain usable even before IR activates.
• 120 dB Extreme WDR (Wide Dynamic Range): Handles extreme backlit scenes—think a vehicle silhouetted against a bright sky or a person walking toward sunset. Without WDR, such scenes lose detail in shadows or blow out highlights. The 120 dB rating means you capture both simultaneously. Frame rate drops to 30fps when WDR is active, a tradeoff worth accepting for outdoor high-contrast deployments.
• H.265 Compression (with H.264 Fallback): H.265 cuts storage and bandwidth consumption roughly in half versus H.264 at the same quality level. On 24/7 multi-camera recorders, this directly reduces hard drive count and network trunk load. WiseStream II/III adaptive bitrate further optimizes per-scene, allocating more bits to motion and less to static backgrounds.
• IP66/IP67 and IK10 Ratings; NEMA 4X Compliance: IP66 means dust and direct rain pose no threat. IK10 (standardized drop test: 20 joules, equivalent to a 2-meter hammer strike) ensures the dome withstands deliberate tampering and accidental impact. NEMA 4X adds stainless-steel corrosion resistance for coastal or chemical environments. Skip this camera only if you need full submersion or explosive atmosphere compliance (ATEX).
• PoE Powered (IEEE 802.3af, Class 3; 10.8W Typical): Draws under 11W, so a standard 802.3af switch port powers it without strain. No separate 12VDC brick needed, simplifying site wiring and reducing failure points in outdoor installations.
• AI-Driven Object Detection and Analytics: On-camera detection for person, face, vehicle, and license plate classification; virtual line crossing and area intrusion triggers. Filters events at the edge, so your NVR records and alerts only on real threats, not every shadow or animal crossing. Reduces false-alarm fatigue and storage overhead significantly on busy perimeter routes.
• Dual-Channel Audio (Mic/Line In and Line Out): Enables two-way talk-back at the dome or integration with external speakers. Useful for access control alerts or instructions at parking gates or service entrances.
• MicroSD Storage Up to 512GB: Provides onboard edge recording as backup if the network or recorder goes down. A full 512GB card records roughly 72 hours of 4MP H.265 at typical bitrate—long enough to bridge a network outage or hard drive failure without losing critical footage.
• Pan/Tilt/Rotate Capability (360° Pan, −45° to +75° Tilt, 355° Rotate): Adjustable angle lets the dome cover ceiling-mount or wall-mount scenarios without a separate bracket. Pre-rotate the image in firmware if mounting orientation is awkward.

Integration & Compatibility

The XNV-C7083R supports ONVIF Profile S/G/T/M, ensuring integration with any standards-compliant VMS. Hanwha's Wisenet open platform provides native support in Hanwha recorders and third-party management software. Configurable alarm triggers (motion, intrusion, line crossing) feed HTTP webhooks or MQTT to external automation systems. 802.1X (EAP-TLS/PEAP) authentication, IP filtering, and dual-channel audio make this camera suitable for secure critical infrastructure deployments.

Environmental Specifications

Operates from −40°C to +55°C (−40°F to 131°F); startup requires warming from −20°C or above. Humidity tolerance to 95% (non-condensing) prevents fogging under rapid temperature swings, though extreme coastal salt spray or chemical spray still requires case-by-case assessment. The white aluminum housing aids passive cooling in high-sun climates and blends into industrial rooflines.

Frequently Asked Questions

Q: Does the XNV-C7083R work with my existing Milestone Xprotect or Genetec Omnicast system?

A: Yes. The camera supports ONVIF Profile S/G/T/M, which both platforms recognize. You'll configure it as a standard IP camera in your VMS. Native Hanwha plugin support exists in Wisenet recorders, but third-party VMS integration works via ONVIF.

Q: How much storage do I need to record 24/7 with H.265 compression?

A: H.265 typically cuts storage by 40–60% compared to H.264. A single 4MP camera at 30fps H.265 averages 1.5–2.5 Mbps depending on scene complexity. For 7-day retention on one camera, budget roughly 90–150 GB per week; multiply by the number of cameras on your recorder. The 512GB microSD backup on the camera itself preserves 72 hours of footage if your NVR fails.

Q: Can I use this camera in a swimming pool or fully underwater installation?

A: No. IP66/IP67 handles rain and spray, not immersion. IP67 means 1 meter for up to 30 minutes; full submersion requires purpose-built underwater housings or specialized submersible cameras.

Q: What's the actual bandwidth and storage impact of enabling WDR?

A: WDR reduces frame rate to 30fps (from 60fps max). You lose motion smoothness but gain shadow/highlight detail in high-contrast scenes. Bandwidth impact varies per scene; WiseStream adaptive coding mitigates overhead on static backgrounds. Test on your NVR before full deployment if bandwidth is tight.

Q: Is the XNV-C7083R (often searched as XNV C7083R) NDAA Section 889 compliant or restricted from federal procurement?

A: Hanwha is a South Korean manufacturer. NDAA applicability depends on your end-use and federal certification status. Verify with your compliance officer or GSA schedule before procuring for government contracts.

Q: How quickly can the motorized zoom focus after a zoom command?

A: The manual focus knob allows simple field adjustment. Motorized zoom and iris respond within 1–2 seconds. DC auto iris tracking typically settles within 500ms. For rapid zoom-and-track scenarios, consider a PTZ camera with continuous servo motors.

When to Choose a Different Model

If your deployment requires continuous 60fps without WDR, the XNV-C7083R's 30fps WDR mode may be insufficient—consider a higher-megapixel variant in the Hanwha outdoor camera line with native 60fps WDR or a dedicated network video recorder that buffers and transcodes on ingest. If you need cooler-temperature startup (below −20°C), test this unit first—it requires warming time. For full-immersion or ATEX hazardous-area use, this dome is not rated; consult Hanwha's specialized submersible or explosion-proof catalog.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNV-C7083R stands out because it solves two real outdoor pain points simultaneously: the 3.6x motorized zoom handles both wide context and telephoto detail without a second camera, and the 120 dB extreme WDR addresses backlit scenes that would otherwise lose half the image. Pair that with AI-driven event filtering (person, vehicle, license plate detection), and you've shifted from 24/7 bulk recording to threat-triggered alerting—a material reduction in false alarms on busy perimeters.

Technical Highlights:

• H.265 with WiseStream III: Cuts storage 40–60% versus H.264 while adaptive bitrate allocates bandwidth only where motion occurs. On a 24-camera system recording 7 days, this saves roughly 4–6 TB of NVR disk versus H.264.
• 40-Meter IR + 0 Lux Capability: Unlit perimeters become viable with no ambient light dependency. The 850nm LED range covers parking lots, dock areas, and after-hours facility zones without powered lighting.
• IK10 Vandal Rating (2-Meter Impact Equivalent): The dome survives deliberate hammering or rock throws. Critical for public facilities, transportation hubs, and high-risk perimeter routes where casual damage is expected.
• PoE 802.3af (10.8W): Uses standard switch power; no separate 12VDC runs. On a 100-port PoE switch, you can provision 9–10 cameras from one power budget slot—cost-effective for distributed outdoor arrays.

Deployment Considerations:

• WDR forces 30fps mode—acceptable for perimeter slow-scan, but inadequate for vehicle-speed tracking. If you need 60fps WDR, you'll spend more elsewhere.
• The motorized focus knob requires onsite adjustment; don't expect auto-focus. Plan for a technician visit if focal length changes after installation.
• AI analytics run on-camera, so firmware updates occasionally add latency or consume CPU cycles during peak detection. Test with your actual threat profile before committing to edge-based rules.

Deploy the XNV-C7083R for critical infrastructure perimeters, parking facilities, and municipal deployments where durability, vandal resistance, and bandwidth efficiency matter more than panoramic 360° pan-tilt or 4K resolution. The combination of zoom flexibility, night vision range, and onboard AI makes this a solid fit for high-sun exterior routes and unlit after-hours zones.
