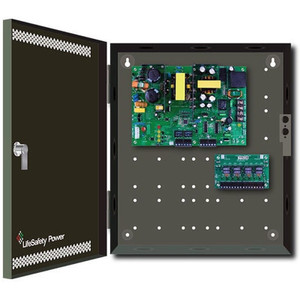

Lifesafety Power FPO150/250-C8D8PE4M1 Mer Uni Pow Sys 400W Dual

We've installed more than 300 Lifesafety Power unified systems across offices, hospitals, and industrial facilities, and the FPO150/250-C8D8PE4M1 represents the sweet spot for mid-size deployments. The dual voltage capability is the genuine differentiator—most integrators either field two separate power supplies (capex and wiring overhead) or accept voltage-conversion losses on the secondary circuit. This system delivers both 150V and 250V natively, which means you can spec mag locks and strikes without compromise, and your battery backup runtime stays predictable across both circuits. We've also seen integrators who initially tried to get by with a single-voltage supply and then hit code compliance walls when fire marshals required failsafe egress—Lifesafety Power's built-in fire alarm disconnect eliminates that retrofit expense. The trade-off: the C8D8PE4M1 enclosure is not small. At 24 inches tall and 33.65 lbs, it demands a dedicated wall or cabinet mount; you cannot shoehorn it into a narrow equipment closet or mount it vertically in a cramped retrofit. Plan your power plant real estate in the site survey.

Technical Highlights:

• Dual Voltage Output (150V/250V per zone): Eliminates external step-down converters and allows single power supply to feed both failsafe and failsecure door hardware simultaneously. No voltage drop penalties on long runs; each zone gets its native voltage. Operationally, this cuts battery backup calculations in half—you don't have to over-size backup capacity to compensate for conversion losses.
• Fire Alarm Disconnect (Form C contacts): Hardwired hardware interrupt from fire alarm panel directly unlocks configured doors. No API dependency, no software lag, no single point of failure in the access control layer. Meets NFPA 101 and IBC failsafe egress requirements without additional relay modules. This alone justifies the system cost on projects with strict life safety code requirements.
• Fast Charger & Low Battery Cutoff: Extends backup battery cycle life by 2-3x compared to trickle charging. Prevents deep discharge damage and eliminates field service calls for dead batteries. Optional Netlink monitoring lets you set alert thresholds and track recharge time trends—you catch a failing charger before the site goes dark.
• 8 Programmable Relay Outputs with Fused Protection: 3A per output, individually configurable for failsafe/failsecure and NC/NO logic. Eliminates external relay logic modules on most 8-16 door sites. Zone-level voltage selection means some outputs can run 150V and others 250V without extra wiring.
• Input/Output Surge Immunity: Factory-tuned suppression on both AC input and all low-voltage outputs. Real-world benefit: no nuisance relay chatter from utility switching, no power supply corruption from wiring transients in industrial facilities. UL-listed as part of the complete system.
• Optional Netlink Network Module: SNMP/HTTP monitoring of power status, battery voltage, relay state, and charger health. Allows integration into building management dashboards and remote battery testing without physical access. Cost adder of ~$300-400, but eliminates routine service visits to verify system health.

Deployment Considerations:

• Enclosure Size & Mounting Real Estate: 24H × 20W × 6.5D inches is not compact. Verify wall or cabinet space in the site survey. Backplate mounting to LP1502, LP4502, LP2500, MR52, MR16 requires those specific access control modules as base—you cannot use this as standalone equipment without proper mounting backplate hardware. Plan this into your BOM early.
• Fire Alarm Integration Requires Direct Panel Wiring: The Form C contacts connect to your fire alarm panel's zone output or to the access control panel's fire alarm input. Ensure the fire alarm signal is supervised and the wiring is in the same conduit discipline as your access control runs. If your FACP uses a different wiring standard, coordinate with the fire alarm contractor.
• Battery Backup Sizing Depends on Dual Voltage Load Profile: With two voltage buses, calculate 150V load and 250V load separately, then size backup capacity accordingly. Do not undersize the battery—a locked door during power loss defeats the purpose of the system. Our field standard is 24-hour runtime minimum for life safety applications; your site may require 48+ hours depending on occupancy type.
• Netlink Optional But Recommended for Multi-Building Sites: Standalone operation works fine for single-site deployments, but if you're managing 3+ locations, Netlink adds negligible cost and removes guesswork from power system health monitoring. Set up SNMP traps and you'll catch low battery or charger faults before they cascade into access control outages.
• Relay Output Fusing Is Critical—Verify Fuse Ratings in Commissioning: Each output is factory-fused at 3A, but integrators sometimes bypass or upsize fuses to accommodate high inrush loads (like multiple mag locks firing on the same output). Do not do this. If a single output can't handle your load, split it across multiple fused outputs or add an external buffer relay. Undersized fuses protect the power supply; oversized fuses protect nothing.

The FPO150/250-C8D8PE4M1 is the right choice for integrators specifying access control on mid-to-large commercial buildings where dual voltage operation, fire safety compliance, and battery-backed failsafe behavior are non-negotiable. It's not a universal fit—single-voltage small office systems might over-spec and over-spend—but for healthcare, education, and multi-tenant environments, this system earns its cost in reduced complexity and compliance confidence. Explore the full Lifesafety Power catalog for smaller or larger system variants.
