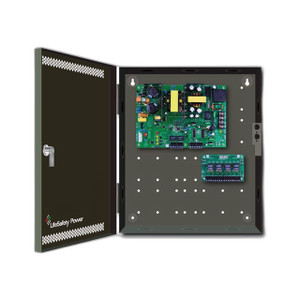

Lifesafety Power FPO150/250-2C82D8PE8M1/P16-A 400W Dual Voltage Power Supply

Overview

The FPO150/250-2C82D8PE8M1/P16-A is a 400W dual voltage power supply designed for Mercury ProWire systems and distributed access control architectures. Running on 120 VAC input, this unit delivers enough capacity to sustain multiple electric locks, badge readers, and auxiliary control modules across a medium-scale installation. The dual voltage design means it can feed both 12V and 24V circuits from a single chassis — eliminating the need for separate power plants when your door locks, readers, and signaling devices run on different rails.

Compatibility

The FPO150/250-2C82D8PE8M1/P16-A integrates into Lifesafety Power Mercury ProWire control systems and works with any third-party panel or controller that accepts 12V and 24V DC input. The 16 relay lock outputs and 16 auxiliary outputs support standard electric strike, magnetic lock, and solenoid-driven access hardware. If your system uses a different control platform (Lenel, Salto, Genetec, or proprietary controllers), verify relay voltage requirements before purchase — this unit outputs fixed voltage rails, not variable outputs.

Installation Notes

Wire the 120 VAC input through a dedicated 20A branch circuit with appropriate disconnect and overcurrent protection per NEC and your AHJ. The 16 relay outputs are supervised — monitor output current draw to avoid exceeding the 400W total budget across all outputs simultaneously. Mount in a secure, climate-controlled enclosure; prolonged exposure to moisture or temperature extremes will degrade relay contacts and capacitor life. Consult the Mercury ProWire manual for relay assignment mapping and auxiliary output configuration before energizing.
