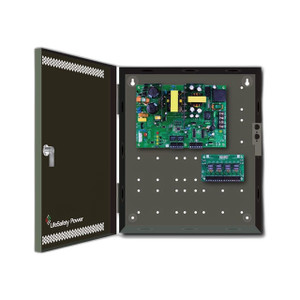

Lifesafety Power FPO150/250-2C83D8PE6M1/P16-A 16-Channel Power Supply
Overview
The FPO150/250-2C83D8PE6M1/P16-A is a 400W, 16-channel power distribution unit designed for access control and surveillance installations requiring redundant power paths and multiple isolated outputs. This unit delivers 12A at 12V and 10A at 24V across its 16 channels, making it suitable for medium-scale systems integrating door locks, readers, cameras, and auxiliary security devices. The dual-redundant E6M1 architecture handles simultaneous loads without cascading failures—critical in facilities where power loss compromises building access or video evidence.
Compatibility
The FPO150/250-2C83D8PE6M1/P16-A integrates with access control panels, surveillance VMS systems, and mixed-security deployments using standard 24V/12V power distribution architectures. It pairs with door control modules, magnetic locks, badge readers, and auxiliary loads (strobes, LED indicators, small embedded systems) across 16 independent circuits. The unit accommodates wired installation using Panduit connectors (1502/MR52 standard) and supports both 12V and 24V device ecosystems in a single enclosure. Confirm your control panel and device voltage requirements before deployment—mixed 12V and 24V installations must account for channel assignment and load distribution across the available amp budgets (12A/12V; 10A/24V).
Installation Notes
Mount the FPO150/250-2C83D8PE6M1/P16-A in a secure, temperature-controlled electrical cabinet or closet. Ensure adequate ventilation around the unit—400W dissipation requires airflow to prevent thermal derating. Use Panduit 1502/MR52 connectors for field wiring; verify connector seating and contact pressure before powering up. Distribute loads evenly across channels to avoid exceeding per-channel amp limits (12A/12V, 10A/24V)—unbalanced loads reduce available headroom for expansion. Back up the unit with appropriate AC mains conditioning (surge suppression, UPS if required by system availability SLA). Confirm input AC voltage matches local mains (FPO150/250 designation indicates dual-input capability; verify final configuration against your facility specs).
What's in the Box
- 1x FPO150/250-2C83D8PE6M1/P16-A power supply unit
- 16 Panduit 1502/MR52 connectors (pre-installed)
- Mounting hardware (exact count not specified in available evidence)
