Lifesafety Power FPO150/250-2C82D8E2 Standard Power Sys 400W 120

Lifesafety Power FPO150/250-2C82D8E2 Standard Power System 400W

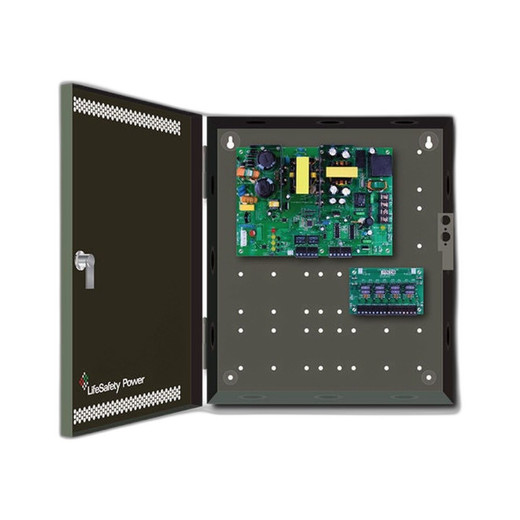

The Lifesafety Power FPO150/250-2C82D8E2 is a unified power supply combining FlexPower modules and access control hardware in a single UL-listed enclosure. Designed for installers deploying door locks, auxiliary devices, and battery-backed access control systems, this 400W supply provides dual voltage output (120V AC input), built-in fire alarm disconnect, and integrated battery management to keep systems operational during power loss and fault conditions.

Key Features

• 400W total output with 120V AC input; supports both 12V and 24V zones simultaneously via dual bus voltage selection
• Fire alarm disconnect automatically unlocks doors on alarm signal; low battery cutoff prevents deep discharge
• 2 × D8 auxiliary outputs (3A fused) with OutSmart dual-color LED status indicators (12V green, 24V blue)
• 2 × C8 relay lock outputs (3A fused, programmable failsafe/failsecure) with NC/NO inputs and voltage or dry output per zone
• Enclosure dimensions 20.0H × 16.0W × 4.5D inches; weight 17.50 lbs; AC/System Fault form C contacts for remote monitoring
• Optional Netlink module enables battery and supply monitoring via network dashboard; lifetime warranty

Installers and integrators deploying multi-zone access control systems with redundant power and battery backup rely on this system for fire-rated disconnect, surge immunity, and long-term lock voltage stability. Compatible with all Lifesafety Power FlexPower modules and standard 12/24V access control loads.
