Infrastructure

Infrastructure components provide the network and power backbone that supports reliable surveillance and access control systems. Select switches, PoE devices, power supplies, and transmission hardware designed for commercial environments.

Plan Your Deployment

Total PoE power budget and port density requirements
Switch throughput and uplink capacity planning
Redundancy and failover design considerations
Distance limitations and fiber conversion needs
Power conditioning and voltage compatibility

PoE Planning Guide Get Sizing Help

Sub categories

Accessories

12 items

Antennas & Radios

51 items

Digital Signage

7 items

Extenders & Repeaters

262 items

Fiber & GPON

13 items

Media Converters

273 items

Network Attached Storage

9 items

Network Management

3 items

Network Switches

441 items

PoE Injectors & Midspans

314 items

Power Delivery & Supplies

1161 items

Routers & Gateways

403 items

Sensors & IoT

111 items

Switch Modules

196 items

UISP Service Provider

20 items

UPS & Power Management

3 items

Wireless Access Points

59 items

Wireless Bridges

84 items

Showing Results for Infrastructure

Compare

Add to Cart The item has been added
Altronix

Altronix AL1024ULXPD4CB 4-Output 24VDC Power Supply
$548.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

Altronix AL1024ULXPD8 24VDC 10A Power Supply with Battery Backup
$575.89 $325.99 Save $249.90

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

Altronix AL1024ULXPD8CB 8-Output 24VDC Power Supply/Charger
$325.99

Add to Cart
The item has been added
Compare

Out of stock
Altronix

Altronix AL1024ULXPD8CBR 8-Output 24VDC 10A Power Supply/Charger
Special Order · Ships in 2-3 weeks

$331.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

Altronix AL1024ULXR 24VDC 10A Power Supply Charger
$310.99

Add to Cart
The item has been added
Compare

Out of stock
Altronix

Altronix AL1024X220 24VDC 10A Power Supply Charger
Special Order · Ships in 2-3 weeks

$538.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

Altronix AL1024XB2V 24VDC Power Supply Single Fused Output
$224.99

Add to Cart
The item has been added
Compare

Out of stock
Altronix

Altronix AL1024XP16CB220 24VDC 10A 16-Output Power Supply
Special Order · Ships in 2-3 weeks

$348.99

Add to Cart
The item has been added
Compare

Out of stock
Altronix

Altronix AL1024XPD4220 10A 24VDC Power Supply Charger
Special Order · Ships in 2-3 weeks

$570.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

Altronix AL1042ULADA 24VDC 10A NAC Power Extender
$571.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

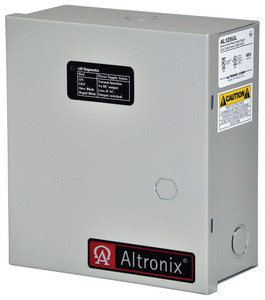

Altronix AL125UL Dual-Output 12/24VDC Power Supply
$151.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

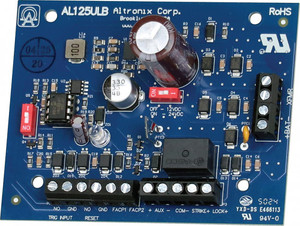

Altronix AL125ULB Dual-Output 12/24VDC Power Supply Board
$168.99

Add to Cart
The item has been added
Compare

Out of stock
Altronix

Altronix AL125ULE Dual Output 12/24VDC Power Supply
Special Order · Ships in 2-3 weeks

$121.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

Altronix AL125ULP Dual Output 12/24VDC Power Supply
$134.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

Altronix AL125ULX Dual-Voltage Access Control Power Supply
$176.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

Altronix AL168175CB 8-Output 16VAC Power Supply
$226.99

Add to Cart
The item has been added

Browse by Product Family

Every outdoor deployment starts with form-factor selection. Click through to shop the families that fit your scene.

Network Switches

Managed PoE+, PoE++, and SFP+ uplink switches for 8 to 48 port surveillance deployments.

PoE Injectors & Midspans

Single-port and multi-port PoE injectors to retrofit non-PoE switches or extend reach.

Media Converters

Copper-to-fiber and fiber-to-fiber converters for long-reach camera runs beyond 328ft.

Cabling & Patch Cords

Cat6, Cat6A, and plenum-rated patch cables for in-rack and camera-drop applications.

Racks & Enclosures

2-post, 4-post, and wall-mount racks with cable management and cooling for surveillance gear.

UPS & Power Protection

Rack-mount and desktop UPS systems for NVRs, switches, and access control power supplies.

Long-Reach PoE Extenders

Ethernet-over-coax and PoE extenders for runs beyond 328ft — up to 4,000ft on coax.

What to Look For When Buying

The six decisions that matter most before you spec.

PoE Power Budget Math

A 24-port PoE+ switch with 370W total budget can't actually run 24 outdoor cameras at peak 25W each. Simultaneous peak — not nameplate — is the limit. Always verify per-port PoE allocation and total budget against actual camera load. See PoE budget planning and why your PoE switch fails after 18 cameras.

328-Foot Ethernet Limit

Cat5e, Cat6, and Cat6A all top out at 100 meters (328ft) per TIA-568. Past that, you need a media converter to fiber, a PoE extender, or an intermediate switch. Common gotcha: in-wall patch + faceplate + drop + jumper all count against 328ft. Long runs to perimeter cameras frequently exceed the limit — plan for fiber or coax-PoE extension.

Managed vs Unmanaged Switches

Unmanaged switches work for small deployments but provide no VLAN segmentation, no QoS for video traffic, no monitoring, and no remote troubleshooting. Managed switches (Layer 2 or Layer 3) let you isolate cameras on a dedicated VLAN, prioritize video over office traffic, and diagnose link failures from a central SNMP platform. Spec managed for any deployment over 8 cameras.

UPS Sizing & Runtime

NVR + switches + cameras + access control have very different power profiles than office gear. Size UPS for actual wattage of all connected loads + 20% headroom, and calculate runtime with battery-life curves (runtime is non-linear — doubling load often cuts runtime 60%+). Surveillance UPS should provide 15-30 min to accommodate generator transfer or graceful shutdown.

Copper vs Fiber Uplinks

In-rack uplinks on 10G copper (Cat6A) work fine for short runs. Between-building and multi-floor uplinks should be fiber — single-mode for >300m, multimode for under. Fiber is also electrically isolated, which matters in lightning-prone environments. Axis, Hanwha, and Ubiquiti switches include SFP/SFP+ uplinks across most models.

Cooling & Airflow in Racks

Surveillance gear runs 24/7 — a closed rack at 90°F interior temperature will fail drives and switches faster than spec. Specify perforated doors, rack-mount fans, and leave 1U of airflow gap above/below heat-generating equipment. NVRs with internal fans need front-to-back airflow; network switches vary by vendor. Check thermal spec before sealing a wall-mount enclosure.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

802.3af / at / bt PoE Standards

802.3af = 15.4W/port (entry cameras), 802.3at PoE+ = 25.5W/port (most outdoor cameras), 802.3bt PoE++ Type 3 = 60W, Type 4 = 90W (PTZ, heated, multi-sensor). Specify switch support for the highest standard your cameras need — future-proofing with PoE++ switches costs marginally more.

TIA-568 Cabling Standards

Cat5e rated to 1 Gbps at 100m. Cat6 rated to 10 Gbps at 55m, 1 Gbps at 100m. Cat6A rated to 10 Gbps at 100m with proper grounding. Use Cat6A for new surveillance cabling runs — marginal cost premium over Cat6, meaningful margin for long runs + high PoE.

SFP / SFP+ / QSFP+ Modules

Small Form-factor Pluggable optics for fiber uplinks. SFP = 1 Gbps, SFP+ = 10 Gbps, QSFP+ = 40 Gbps. Match module to switch vendor compatibility (some vendors lock to their own brand of optics). Multimode fiber with OM3/OM4 for ≤300m, single-mode for longer or future-proof runs.

VLAN Segmentation

Dedicated VLAN for surveillance isolates camera traffic from office network — improves security (camera-to-camera lateral movement blocked), performance (no contention with office traffic), and troubleshooting. Configure access-control and intercom VLANs separately. Managed switches required; unmanaged switches cannot segment.

Long-Reach PoE Extension

Ethernet-over-Coax (EoC) extends Ethernet + PoE to 1,500+ feet over existing RG59 coax — ideal for analog-to-IP retrofits. Ethernet-over-UTP extenders push runs to 4,000ft over CAT cable. NVT Phybridge CHARIoT, Altronix eBridge, and Veracity Highwire are the common product families. Rate-limited to 100 Mbps typically.

UPS Topology: Line-Interactive vs Double-Conversion

Line-interactive UPS switch to battery on power failure — sufficient for office gear. Double-conversion (online) UPS convert AC→DC→AC continuously, providing perfectly conditioned power — required for sensitive SCADA/security gear in dirty-power environments. Specify double-conversion for NVRs at critical sites.

Typical Deployment Scenarios

8-Camera Single-Site Retrofit

Existing network + 8 outdoor IP cameras. Add a 16-port managed PoE+ switch (Ubiquiti UniFi, Axis T85) on a dedicated VLAN. 1U rack UPS for the NVR + switch. 120-160 watts total PoE budget comfortably runs 8 outdoor cameras with heater + IR.

48-Camera Campus Upgrade

Four buildings, 48 cameras total, existing fiber backbone. Per-building 24-port PoE++ switch with SFP+ fiber uplink to core. Dedicated surveillance VLAN, QoS for video traffic, SNMP monitoring. 2-post relay rack in each IDF closet with dedicated surveillance UPS.

Perimeter Fence Line (1,200ft)

6 bullet cameras + 2 PTZs along perimeter fence, main NVR in building. Fiber media converter + outdoor-rated fiber to a PoE++ switch in a weatherproof enclosure at the fence line. Alternative: NVT Phybridge CHARIoT over existing coax for retrofit applications.

Multi-Floor Office Tower

Stacked IDFs on every floor, cameras + access control + intercom on dedicated VLANs. Cisco Catalyst or Ubiquiti UniFi Pro managed switches per floor with 10G fiber uplink to building core. Per-IDF 3U UPS. Integration with VMS and access control head-end at main BDF.

Top Brands for Outdoor Deployments

Click through to each brand's engineering profile, product range, and NDAA compliance status.

Ubiquiti UniFi

Enterprise-grade managed switches at competitive pricing, unified controller

Axis Communications

Axis T85 PoE++ switches purpose-built for camera networks

Altronix

UL 294 PoE injectors, power supplies, and NetWay PoE switches

Hanwha Vision

PoE++ switches optimized for Wisenet camera deployments

Bosch

Industrial-grade switches and power supplies for critical infrastructure

Panduit

Enterprise cabling, patch panels, racks, and cable management systems

Frequently Asked Questions

How do I calculate PoE budget for a camera deployment?

Sum the peak wattage of every camera (not nameplate — check spec sheet for "PoE class" or "max consumption"). Add 15-20% headroom for inrush during cold-start. The result is your required simultaneous-peak PoE budget. A 24-port PoE+ switch advertised at 370W can only run about 18 outdoor cameras with heaters + IR — see PoE budget planning.

What's the maximum Ethernet cable run for an IP camera?

100 meters (328 feet) per TIA-568 — total distance from switch port to camera port. That includes in-rack patch cords, in-wall cabling, faceplate jack, and camera jumper. For longer runs, use fiber with a media converter or a long-reach PoE extender. Going past 328ft on copper causes intermittent packet loss that looks like camera problems.

Do I need managed or unmanaged PoE switches?

For more than 8 cameras or any mixed-use network (cameras sharing infrastructure with office traffic), specify managed. VLAN segmentation isolates camera traffic for security and performance; QoS ensures video gets bandwidth priority; SNMP monitoring surfaces failures before users call. Unmanaged switches are acceptable only for small standalone deployments.

What UPS runtime should I plan for an NVR + switch?

15-30 minutes of runtime at actual load is typical — enough to ride through brief outages or allow graceful shutdown before battery exhaustion. For sites with generator transfer, 5-10 minutes is sufficient. Size UPS wattage for actual connected load + 20%, and use the vendor's runtime-at-load curve (runtime is non-linear). Double-conversion UPS for sensitive or dirty-power sites.

How far can I extend PoE past 328 feet?

Ethernet-over-Coax extenders (NVT Phybridge CHARIoT, Altronix eBridge) push Ethernet + PoE to 1,500+ feet over existing RG59/RG6 coax — ideal for analog-to-IP retrofits. UTP-based extenders reach 2,000-4,000 feet on Cat cable at reduced bandwidth (typically 100 Mbps). For new runs over 328ft, fiber + PoE switch at the camera end is usually cleaner architecture.

Should I put cameras on a separate VLAN?

Yes — always. A dedicated camera VLAN isolates camera traffic from office network for security (blocks camera-to-camera lateral movement if one is compromised), performance (cameras don't contend with office bandwidth), and troubleshooting (camera traffic is cleanly separated for packet capture). Requires managed switches; takes 10 minutes to configure on Ubiquiti UniFi, Cisco Catalyst, or any enterprise switch.
