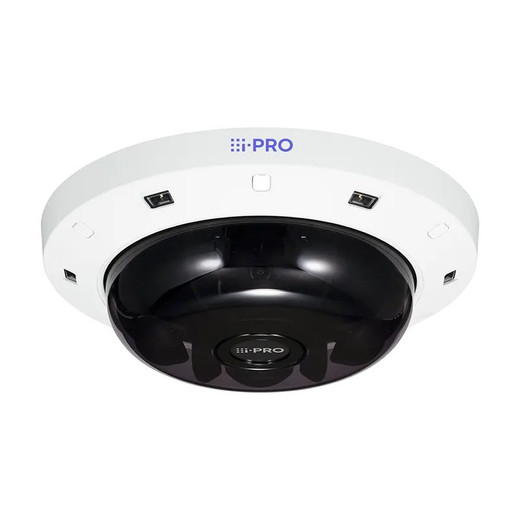

i-PRO WV-S8574LG 33MP 4x4K Multi-Sensor Outdoor Camera

The i-PRO WV-S8574LG is a purpose-built 4x4K (33MP total) multi-sensor outdoor network camera designed for large-scale surveillance deployments requiring ultra-high resolution coverage across wide areas. This vandal-resistant dome camera delivers comprehensive 270° coverage from a single IP address, eliminating the need for multiple camera units and significantly reducing installation complexity, cabling, and network overhead. Built to enterprise standards with FIPS 140-2 Level 3 security compliance, it serves security integrators, telecom operators, and IT managers deploying critical infrastructure, campus, and transportation surveillance systems.

Key Features

• 4x4K Ultra-High Resolution (33MP Total): Four independent 4K UHD sensors (3840x2160 each) capture at up to 15 fps, delivering exceptional detail across 270° of coverage from a single camera unit and single IP address
• AI-Powered Object Classification: Integrated AI Engine classifies objects as people or vehicles, dramatically reducing false alarms compared to conventional motion detection. Supports simultaneous installation and execution of up to 4 different AI applications
• Super Dynamic 120dB WDR: Advanced wide dynamic range processing with adaptive backlight and high-light compensation ensures clear, usable images across mixed lighting environments—from bright daylight to shadowed areas—without manual adjustment
• 360° Color Night Vision: Built-in IR LED array enables color night vision operation at extremely low light (0.084–0.12 lux), maintaining situational awareness in complete darkness
• H.265 Video Compression: Efficient codec reduces bandwidth and storage requirements while maintaining image quality, critical for bandwidth-constrained or large-scale deployments
• IK10 Vandal Rating: Rugged construction withstands impact and tampering in high-security outdoor environments
• Enterprise-Grade Security: FIPS 140-2 Level 3 Secure Element (EdgeLock SE050F, NXP Semiconductors), HTTPS encryption, signed firmware, and third-party digital certificates (GlobalSign) ensure data integrity and regulatory compliance
• Flexible Mounting: Supports ceiling, wall, and pendant installation configurations

Technical Specifications

• Resolution: 33MP total (4x 3840×2160 per sensor)
• Frame Rate: Up to 15 fps per sensor
• Compression: H.265, H.264, MJPEG
• Illumination: 0.084–0.12 lux (color night vision); 360° built-in IR LED
• Environmental Rating: IP67, NEMA 4X (ingress protection); IK10 (vandal resistance)
• Power: PoE+ (Class 4)
• Connectivity: Ethernet, Wi-Fi, USB
• Audio Support: Yes, with AI sound classification
• Storage: microSD card support
• Analytics: Object classification, motion detection (VMD), scene change detection (SCD), audio detection, facial recognition, simultaneous AI app execution
• VMS Compatibility: ONVIF
• Lens Focal Length: 3.1mm

Applications

Ideal for retail and commercial facilities, critical infrastructure perimeters, transportation hubs, university campuses, and municipal surveillance networks where high-resolution, wide-area coverage and AI-driven intelligence are essential for operational efficiency and security.

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The WV-S8574LG represents a significant step forward in multi-sensor camera design. The combination of 33MP total resolution, four independent 4K sensors, and AI-driven analytics in a single compact dome eliminates the traditional trade-off between coverage width and image detail. For large deployments, the single IP address per 270° coverage zone reduces network complexity and simplifies VMS integration.

The Super Dynamic 120dB WDR and color night vision ensure usable imagery across challenging lighting transitions common in outdoor environments. FIPS 140-2 compliance and enterprise security features address regulatory and data protection requirements in sensitive sectors. The flexible simultaneous AI app capability enables adaptation to evolving security policies without hardware replacement.

H.265 compression is essential for bandwidth optimization in multi-camera, multi-sensor deployments, particularly over constrained WAN links or large storage systems.
