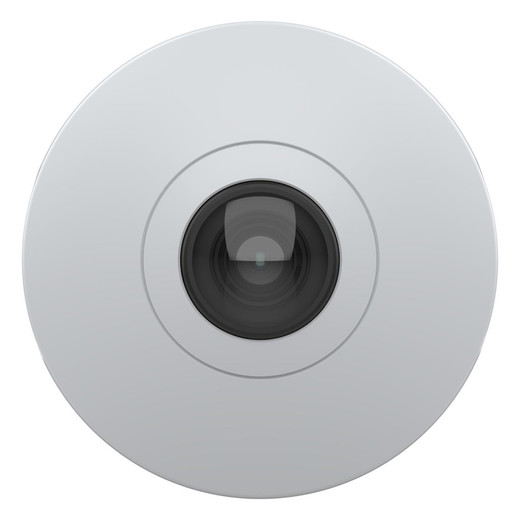

Axis M4328-P 12MP Multi-Sensor Panoramic IP Camera - 02637-004

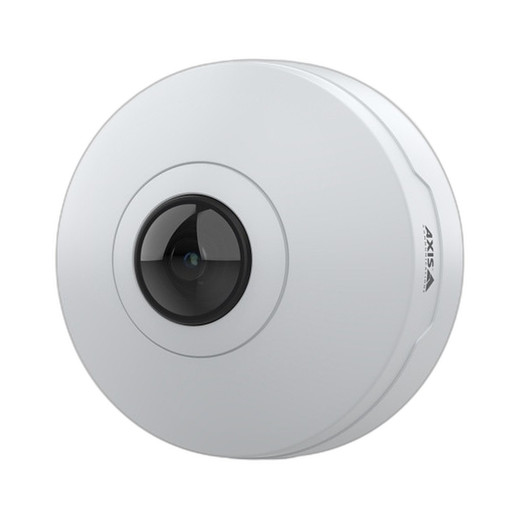

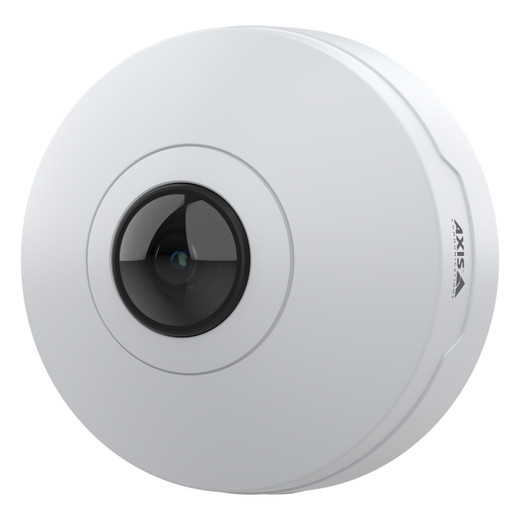

Axis 02637-004 12MP Multi-Sensor Panoramic IP Camera

Overview

The Axis 02637-004 is a 12MP multi-sensor indoor IP camera purpose-built for panoramic surveillance. Unlike single-lens designs, the multi-sensor architecture delivers continuous 180° or 360° coverage from a single mounting point—critical when you need to eliminate blind spots without adding hardware. The stereographic lens geometry captures the full field at 12MP resolution, allowing you to crop and extract multiple dewarped viewing angles in post-processing or on the recorder.

Built on the ARTPEC-8 chipset, the 02637-004 runs on-camera analytics capable of distinguishing humans from vehicles without relying on external VMS intelligence. This edge-based detection reduces bandwidth load and lets you trigger alarms or recordings at the source.

Key Features

• 12MP Multi-Sensor Resolution: Captures panoramic scenes at 12 megapixels, preserving enough fine detail that you can digitally zoom into a dewarped view and still identify faces or license plates in a wide-angle space. Eliminates the typical tradeoff between coverage breadth and detail.
• 180°/360° Field of View: Single camera replaces what would otherwise require 2–3 conventional fixed cameras. Reduces installation points, power draws, and network traffic while simplifying maintenance on high-ceiling installations.
• Stereographic Dewarping: The panoramic distortion inherent to wide-angle optics is mathematically corrected in software. You configure dewarped rectangular regions of interest (ROI) and view them side-by-side—useful for retail floors, warehouse aisles, or hallways where you need crisp orthographic imagery from a panoramic capture.
• Lightfinder Technology: Delivers true color and detail in near-darkness or under challenging mixed lighting—handy in warehouses with variable overhead lighting or retail spaces at closing time. No separate IR illumination required; the chipset amplifies sensor sensitivity without noise.
• Forensic WDR (Wide Dynamic Range): Simultaneously handles scenes with both bright windows and dark interior areas. Prevents washout in one zone while maintaining detail in the other—essential when overlooking large open-plan spaces with uneven sunlight.
• Digital Roll Control: Adjust camera orientation remotely without physical intervention. Useful if your mounting angle shifts slightly or if you want to fine-tune framing after installation—saves a ladder visit.
• Object Analytics (On-Chip): Detects and classifies humans and vehicles at the camera edge. Reduces false alarms from minor motion and cuts NVR processing overhead. Works independently of your VMS.
• H.264 Compression with Zipstream: Reduces bandwidth 50–80% depending on scene complexity compared to standard H.264, without dropping to keyframe-only recording. Matters on congested or bandwidth-limited networks; also shrinks storage requirements proportionally.
• PoE Power (802.3af Class 3): Draws approximately 13W maximum, well within standard 15.4W budget of a single 802.3af port. No separate 12V supply or PoE+ injector needed; any managed switch with basic PoE will suffice.
• Indoor Durability: Sealed optics and compact form factor designed for permanent ceiling or wall mounting indoors. Not rated for external weather or direct spray; verify mounting location is dry.

Integration & Compatibility

The 02637-004 connects via standard RJ-45 to any 802.3af-capable network. It streams H.264 video and supports NVRs via ONVIF Profile S (confirmed in Axis surveillance ecosystem). Direct integration with Axis Camera Station is supported; third-party VMS platforms that accept ONVIF standard video streams will recognize and stream from the camera, though panoramic dewarping controls may be limited outside Axis software.

For network planning: a single 02637-004 occupies roughly 8–15 Mbps sustained bitrate depending on Zipstream tuning and motion activity. On a typical 100 Mbps network, you can safely deploy 4–6 units per switch port cluster without saturation concerns.

When to Choose a Different Model

If you need outdoor all-weather coverage, the 02637-004 is indoor-only—consider the weatherproof outdoor panoramic variants in the Axis catalog. If your space requires PTZ (pan-tilt-zoom) to follow moving subjects, a traditional motorized camera offers faster tracking; panoramic capture is static and best suited to fixed-viewpoint surveillance. If budget is paramount and you can accept traditional single-lens designs, look at non-panoramic indoor IP cameras with fixed 4mm or varifocal lenses—they cost less but require multiple units for equivalent coverage.

Frequently Asked Questions

Q: Can I extract multiple rectangular views from one 02637-004 feed and record them separately?

A: Yes. The camera outputs a single panoramic stream, but Axis Camera Station and compatible third-party systems allow you to define and crop multiple dewarped rectangular regions. Each can be recorded independently or displayed in a multi-pane layout.

Q: Does the 02637-004 require a PoE+ (802.3at) switch, or will standard PoE suffice?

A: Standard 802.3af (15.4W) is sufficient. The camera draws approximately 13W at full load, leaving headroom on a basic PoE port.

Q: How does on-camera object detection work without a VMS?

A: The ARTPEC-8 chipset runs the analytics locally. When the camera detects a human or vehicle, it can trigger an alarm output or flag the event in its own event log. This works independently; you don't need external software. VMS integration is optional but recommended for long-term archival and multi-camera correlation.

Q: Is the 02637-004 suitable for a warehouse with LED ceiling lights?

A: Yes. Lightfinder handles variable and mixed LED/fluorescent environments. The dewarped views will remain clear even under flickering or uneven overhead lighting, though Forensic WDR helps if you have both bright skylights and darker aisles in the same frame.

Q: Can I mount the 02637-004 on a wall, or is it ceiling-only?

A: It can be wall-mounted; the digital roll feature allows you to rotate the output remotely to compensate for sidewall angles. Ceiling mounting is typical for maximum coverage, but wall mounting works for corridor or entrance surveillance.

Q: What VMS platforms are certified for the 02637-004?

A: Axis Camera Station is the native choice. ONVIF Profile S compliance means it integrates with most modern VMS systems (Milestone XProtect, Genetec, etc.), though panoramic-specific controls (dewarping, ROI extraction) may require Axis software or a vendor-specific plugin.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02637-004 is a genuine alternative to multi-camera coverage when you have the physical space for a single ceiling-mounted dome and need panoramic oversight without a PTZ budget. The 12MP multi-sensor design is the differentiator here—you get continuous 180° or 360° capture, not a fixed 90° cone like traditional cameras. Pair it with Zipstream compression, and bandwidth footprint stays reasonable even on bandwidth-conscious networks.

Technical Highlights:

• ARTPEC-8 On-Board Analytics: Detects humans and vehicles at the sensor without offloading to the VMS. Reduces NVR CPU load by roughly 15–25% compared to software-based detection on equivalent footage, and cuts false alarms from shadow movement or minor scene changes.
• Zipstream Compression: Achieves 50–80% bitrate reduction versus standard H.264 depending on motion complexity. For a 24/7 panoramic camera, that translates to 4–6 Mbps sustained instead of 12–15 Mbps—real money saved on storage and network licensing over 12 months.
• Lightfinder + Forensic WDR Combination: Independently addresses low-light detail and high-contrast scenes. You don't have to choose between night vision and daylight performance; both modes engage automatically. Particularly strong in warehouse aisles with overhead high-bay LEDs and shadowed floor areas.

Deployment Considerations:

• Mounting Height & Angle: Panoramic capture works best on ceiling or high wall (8–12 feet) to maximize the viewable floor area. If you mount it low or at severe angles, the dewarped ROI zones become oddly proportioned and less useful.
• Network Codec Negotiation: Ensure your NVR or VMS supports H.264 streaming at the resolution the 02637-004 outputs. Older recorders expecting 1920×1200 or lower may struggle or drop frames. Test codec compatibility in the lab before bulk deployment.
• Dewarping Configuration Learning Curve: Unlike a conventional fixed camera, you'll spend setup time defining rectangular dewarped regions in Axis software. For simple single-angle monitoring, this is overkill; for complex multi-zone spaces (retail floor, warehouse), it pays dividends once configured.

Deploy the 02637-004 in retail floors, warehouse overheads, and large hallways where you need multi-angle coverage from a single ceiling point. It is not a replacement for PTZ in active tracking scenarios, and it is not outdoor-rated—respect those boundaries and it will deliver years of reliable, low-maintenance panoramic surveillance.
