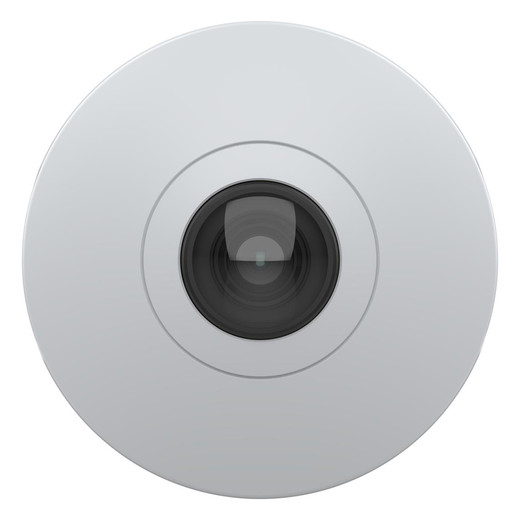

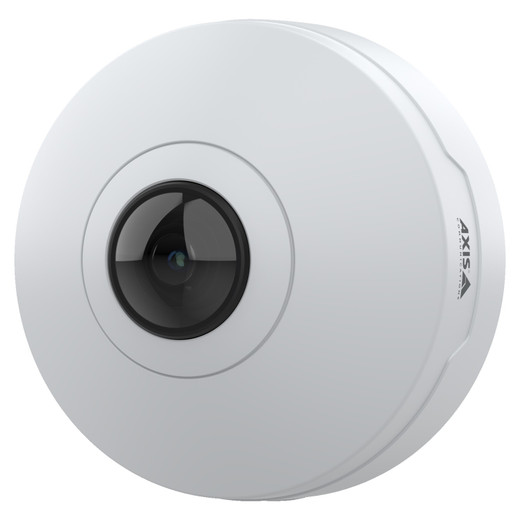

Axis M4327-P 6MP 360° Panoramic Indoor IP Camera - 02636-004

Axis 02636-004 6MP 360° Panoramic IP Camera with Dewarping

Overview

The Axis 02636-004 is a multi-sensor panoramic IP camera designed for indoor deployments requiring comprehensive wide-angle coverage without blind spots. Built around a stereographic lens delivering 6 MP resolution, the unit captures full 180°/360° views and transmits them at up to 30 fps, making it suitable for warehouses, retail floors, logistics facilities, and open office spaces where a single camera needs to monitor an entire zone. Unlike traditional fixed or PTZ cameras, this panoramic approach eliminates pan-tilt latency and simplifies installation — one camera covers what typically requires two or three conventional units.

Key Features

• 6 MP Stereographic Lens: Delivers sharp, detailed panoramic imagery across the full field of view. At 6 MP, you retain enough per-pixel detail to identify activity across a large interior space — meaningful when forensic playback is required weeks or months after an incident.
• 180°/360° Dewarped View Modes: Stereographic projection naturally distorts edges; the 02636-004 accepts multiple dewarped output angles simultaneously, so operators can monitor a wide corridor, perimeter wall, or open floor plan in geometrically corrected views without mental translation of curved imagery.
• Lightfinder Technology: Axis's low-light enhancement preserves true color saturation and detail down to near-darkness without noise bloom. Critical in warehouses with uneven or minimal ambient lighting — you capture usable color detail in shadows and backlighting instead of silhouettes.
• Forensic WDR (Wide Dynamic Range): Balances bright windows, skylights, or reflective surfaces against darker interior zones in the same frame. If your scene includes both sun-facing glass and shadowed loading docks, this prevents blown-out or crushed detail in either region.
• Deep Learning Processing Unit (DLPU): On-camera AI enables real-time object detection and classification — distinguishing pedestrians, vehicles, and equipment movement directly at the edge. Reduces false alarms from shadows, reflections, or minor environmental changes, lowering alert fatigue and bandwidth cost by filtering noise server-side.
• H.264 Compression with Axis Zipstream: H.264 codec paired with Zipstream intelligent compression reduces file size roughly 40–50% versus standard H.264, easing 24/7 storage budgets. For a single 6 MP camera running continuously, this translates to weeks of extra retention before rolling over old footage on the same NVR or storage pool.
• Digital Roll Adjustment: Remotely rotate the dewarped view without physically rotating the camera. Useful for fine-tuning alignment after mounting or correcting for slight angle drift without a ladder visit.
• PoE Power (802.3af): Draws approximately 13 W, fitting standard 802.3af-class budgets. No separate 12V supply needed; run a single RJ-45 cable for both data and power, simplifying wiring in ceiling or wall cavities.
• Ultra-Compact Cylindrical Form Factor: Minimal footprint allows ceiling or wall mounting in tight spaces (e.g., above suspended tile, in corner brackets) without the visual bulk of larger dome or box cameras. Paintable enclosure blends into office or warehouse décor if desired.
• ARTPEC-8 System Chip: Axis's proprietary video processing engine accelerates on-camera encoding and analytics, reducing CPU overhead in your recording infrastructure. Paired with the DLPU, this allows real-time detection without taxing the NVR or VMS server.

Integration & Compatibility

The 02636-004 (often searched as 02636 004) is built on ONVIF standards, integrating with most modern VMS platforms — Milestone XProtect, Axis Camera Station, Genetec, and others via Profile S/T. Outputs dewarped views as standard RTSP or MJPEG streams; NVRs and VMS servers treat each dewarped angle as a separate video stream, so you can record all orientations simultaneously or select specific views based on deployment priority. Supports AXIS ACAP (Application Platform) for custom edge applications and third-party integrations.

When to Choose a Different Model

If you require outdoor-rated panoramic coverage, consider outdoor variants within the Axis IP camera catalog — the 02636-004 is indoor-only (no IP66 or IP67 rating). For sub-6 MP sensitivity or lower bandwidth environments, evaluate single-sensor fixed-lens alternatives. If you need automated pan/tilt tracking, a true PTZ camera may be more efficient than panoramic dewarping; panoramic systems excel at wide, stationary overviews, not active target following. For spaces requiring less than 180° coverage, a conventional varifocal dome may offer simpler configuration and lower cost.

Deployment Considerations

Plan network layout around multiple concurrent streams. If recording all three or four dewarped angles at 30 fps + 6 MP, expect 8–12 Mbps aggregate bitrate depending on scene complexity and compression settings. Verify your NVR or network video recorder supports ONVIF panoramic camera streams and can handle multi-view recording from a single physical device. Position the camera at ceiling height or high wall mounting to maximize floor/zone visibility and minimize head-level obstructions. Test Lightfinder performance on-site before final install — while it excels in dim ambient light, it works best with *some* available light; pure-darkness scenarios still benefit from supplemental IR or lighting.

Frequently Asked Questions

Q: Does the Axis 02636-004 include infrared night vision?

A: The datasheet indicates night vision capability via Lightfinder technology for low-light environments, but the 02636-004 is not equipped with IR LEDs. It relies on ambient light and Lightfinder enhancement. Installations requiring true IR illumination should pair this camera with supplemental IR sources or select a dedicated IR-equipped model.

Q: What frame rates and resolutions does the 02636-004 support?

A: The camera delivers up to 30 fps at 6 MP across its dewarped view modes. No lower-resolution reduced-fps modes are specified in available documentation.

Q: Can I record multiple dewarped angles simultaneously on the 02636-004?

A: Yes. The camera outputs multiple geometrically corrected views; your VMS or NVR can assign each dewarped angle to a separate recording stream, allowing 24/7 multi-view recording from a single physical unit.

Q: Is the Axis 02636-004 compatible with Milestone XProtect?

A: The 02636-004 supports ONVIF Profile S and T, enabling integration with most major VMS platforms including Milestone. Verify your specific XProtect version supports panoramic multi-stream output.

Q: What is the power consumption of model 02636-004?

A: The camera draws approximately 13 W, within standard 802.3af PoE budget. No external power supply is required.

Q: Does the 02636-004 support H.265 encoding?

A: The 02636-004 supports H.264 with Axis Zipstream compression. H.265 capability is not listed in the available specifications.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02636-004 solves a specific problem: covering a large interior space with zero blind spots from a single fixed-mount camera. At 6 MP with 360° stereographic capture and real-time Lightfinder color preservation, you get wide coverage and forensic-grade detail without the complexity, cost, or latency of PTZ. The DLPU on-camera analytics means object detection runs at the edge — pedestrians, vehicles, equipment — so your NVR and storage budget stay reasonable on 24/7 continuous recording.

Technical Highlights:

• H.264 Zipstream Compression: 40–50% file size reduction versus standard H.264 translates directly to extended retention. A single 6 MP 30 fps stream recorded continuously burns roughly 6–8 TB/month uncompressed; Zipstream cuts that to 3–4 TB/month, stretching your NVR's rolling window by weeks without hardware upgrade.
• DLPU Deep Learning Analytics: Real-time pedestrian, vehicle, and equipment detection at the camera edge. Noise (lighting flicker, shadows, wind-blown debris) is filtered on-device before streaming, reducing false-alert overhead on your VMS and keeping network load manageable across multiple cameras.
• Lightfinder + Forensic WDR: Dual low-light engines preserve detail and color saturation in dim warehouses and mixed-lighting retail floors. Forensic WDR prevents blown-out windows or crushed shadows when sun penetrates skylights — a real gotcha in logistics facilities with bay doors or clerestory glass.

Deployment Considerations:

• Network bandwidth: Simultaneous multi-view dewarped streams (2–4 angles at 30 fps, 6 MP each) will demand 8–12 Mbps sustained. Verify your PoE switch and wired backbone support this before installation. Wireless backhaul is not viable.
• No IR illumination: The 02636-004 lacks built-in IR LEDs. In near-total darkness (warehouses at night, unlit corridors), Lightfinder alone will not deliver usable video. Plan supplemental lighting or IR sources upfront, or accept coverage gaps during off-hours.
• Stereographic distortion at edges: Raw stereographic imagery is geometrically curved. While the dewarping engine outputs corrected views, edge pixels naturally lose some acuity. For perimeter or critical-detail zones, position the camera so target areas sit closer to the optical center.

Position this camera in retail floor plans, warehouse overviews, distribution-center dock offices, and logistics control rooms where a single vantage point must monitor a large stationary zone without operator intervention. Pair with a PoE switch supporting at least 13 W per port and an ONVIF-capable NVR or VMS that handles multi-stream panoramic output.
