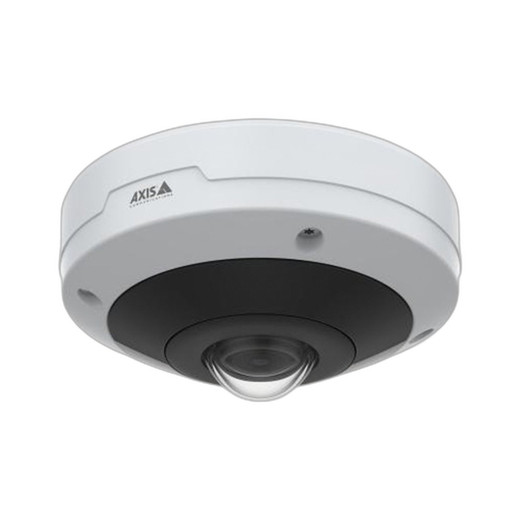

Axis 02510-001 M4317-PLVE 6MP Panoramic IP Camera

The Axis 02510-001 (model M4317-PLVE) is a multi-sensor panoramic camera designed to eliminate blind spots across large outdoor areas with a single deployment. The 6MP resolution delivers 2160×2160 pixel detail at up to 60 fps — enough to identify individuals and vehicles across a parking lot or perimeter from one vantage point. The ultra-wide 1.1mm panoramic lens on each sensor provides 182° horizontal and vertical coverage per unit, allowing you to avoid the stitching artifacts and alignment drift common in software-stitched panoramic systems.

Key Features

• 360° Multi-Sensor Architecture: Each sensor delivers 182° coverage without digital stitching — cleaner forensic footage and no alignment issues when clips are used as evidence.
• 6MP Resolution (2160×2160): Captures fine detail across wide areas; at 60 fps, this means smooth playback for crowd monitoring and vehicle tracking without the choppiness of lower frame rates.
• Lightfinder Technology at 0.16 lux: Produces usable color video in near-darkness without switching to grayscale — critical when vehicle license plates, clothing colors, or other identifying details matter in low-light scenes.
• Forensic WDR (Wide Dynamic Range): Handles extreme lighting contrasts — sunset backlighting, wet reflective surfaces, mixed shadows — without washing out highlights or crushing shadows, reducing the need for multiple cameras to cover the same area in mixed-light conditions.
• Integrated IR Night Vision with OptimizedIR: Built-in 850nm IR LEDs provide monochrome clarity in zero-light conditions; OptimizedIR reduces glare and blooming artifacts that plague cheaper IR cameras in partial darkness.
• H.264 with Zipstream Compression: Reduces file size by 50–80% depending on scene complexity compared to standard H.264, directly lowering storage costs and network bandwidth without visible image degradation — matters when recording 24/7 across a multi-camera site.
• IP66 and IK10 Ratings: Dust and jet-water resistant (IP66) and vandal-resistant to IK10 (equivalent to a 5 kg hammer drop), meaning you can deploy this in loading docks, outdoor sports venues, and unsecured perimeters without housing concerns.
• Temperature Range -40°C to +50°C: Operates in arctic warehouses and desert installations without performance degradation; thermal cycling won't crack the optics or degrade sensor performance.
• PoE Power (802.3af/at): Draws under 15W, so a standard PoE switch port powers the camera without a separate PSU — reduces cabling, simplifies installation, and improves reliability by eliminating a power supply failure point.
• Edge Storage Support: Supports microSD expansion for local recording; if your network drops, the camera continues recording to the card and syncs when connectivity restores — essential for sites where brief outages are common.
• AI-Powered Analytics: Embedded object detection and event filtering reduce false alarms from weather, shadows, and passing vehicles, letting your SOC focus on genuine intrusions or crowd anomalies.
• 1/1.8" CMOS Multi-Sensor Design: Larger sensor size than typical 1/3" cameras means better light collection and lower noise in the 0.16–1 lux range, delivering cleaner night video without the grain that forces higher ISO and reduced shutter speed.

Integration & Compatibility

The M4317-PLVE supports standard Axis IP cameras integration: ONVIF Profile S and T for broad VMS compatibility, edge video storage via microSD, and Axis Camera Station native support. PoE power simplifies deployment on any network with PoE-enabled switches. For large sites, consider pairing this with an NVR with sufficient storage for 24/7 multi-camera recording at full resolution and frame rate.

When to Choose a Different Model

If you need even higher resolution across an equally wide area, consider Axis's higher megapixel panoramic variants in the same family. If your environment is fully indoor or you require tighter angle control, standard fixed-lens outdoor IP cameras with motorized focus will deliver better performance. If you need pan-tilt-zoom capability for active tracking, a PTZ camera is the better choice despite the panoramic 02510-001's broader passive coverage.

Ideal Deployments

Parking lots, loading docks, warehouse perimeters, sports facility grounds, transportation hubs, and any large outdoor area where a single camera must cover 300+ square meters without blind spots. The 360° coverage and integrated AI make this particularly valuable for intrusion detection, crowd monitoring, and forensic investigation where footage quality and angle coverage directly affect case outcomes.

Frequently Asked Questions

Q: Does the Axis 02510-001 require external IR illuminators?

A: No. The M4317-PLVE has integrated 850nm IR LEDs built into the camera housing, so it delivers night vision without additional external IR lights. However, in very long-distance outdoor scenarios (beyond 50m), supplemental IR may improve detail.

Q: Can the 02510-001 be mounted on a standard wall-mounted bracket?

A: The M4317-PLVE is designed for wall, pole, and ceiling mounting. Standard VESA-style brackets work, but verify the mounting template against your specific installation surface to ensure the cable entry and lens orientation suit your deployment.

Q: What happens if the network connection drops?

A: If you enable microSD edge storage, the camera continues recording locally. Once the network restores, it syncs the stored footage to your NVR or cloud storage. Without a microSD card, live recording stops, but the camera remains powered via PoE.

Q: Is the 02510-001 compatible with Milestone XProtect or other third-party VMS?

A: Yes. The M4317-PLVE supports ONVIF Profile S and T, which makes it compatible with most major VMS platforms including Milestone, Genetec, and others. Verify your VMS version supports the specific codec and frame rate you intend to use.

Q: Does the panoramic design mean I can't use digital pan/tilt/zoom?

A: Correct. The 02510-001 captures the full 360° panoramic view passively; you cannot digitally pan, tilt, or zoom the live stream like you would with a PTZ camera. The full frame is always recorded, so forensic zooming is possible during playback, but real-time operator control of camera direction is not available.

Q: What compression formats does the Axis M4317-PLVE support?

A: H.264 with Zipstream optimization is the primary codec. The camera does not support H.265, so if you need maximum compression for storage-constrained sites, factor in roughly double the storage footprint compared to H.265 alternatives in other product lines.

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis 02510-001 is a genuine panoramic camera, not a marketing term for a wide-angle lens. The multi-sensor architecture and lack of software stitching makes this the right choice when forensic-quality footage and zero blind spots are non-negotiable. The 02510-001 delivers 360° coverage without the alignment drift and image artifacts that plague single-sensor panoramic designs.

Technical Highlights:

• Lightfinder at 0.16 lux: This isn't just a marketing number — 0.16 lux is roughly a moonlit night with no artificial light. Most cameras switch to grayscale or become nearly useless at that level. The M4317-PLVE stays in color, which is critical when you need to identify a vehicle or person's clothing in security footage.
• Forensic WDR and 60 fps at 6MP: High frame rate combined with WDR handling means you can track fast-moving subjects (vehicles, running individuals) without motion blur or dynamic range washout — both common failure modes in lower-frame-rate cameras.
• Zipstream H.264 cutting storage 50–80%: On a 24/7 site with a single 02510-001, you're looking at roughly 3–4 TB per month at full resolution and frame rate with Zipstream enabled. That's workable on a mid-range NVR; without compression, you'd need enterprise-grade storage.
• PoE power under 15W: This means a 60W PoE switch can safely power four of these cameras, plus other infrastructure — no separate PSU, no power conditioning concerns.

Deployment Considerations:

• Panoramic cameras are passive — you cannot pan, tilt, or zoom in real-time. If your SOC needs to actively track a moving subject across a wide area, add a PTZ camera as a secondary device rather than relying solely on the 02510-001.
• Ensure your network infrastructure and NVR can handle 6MP @ 60 fps streams. Older Gigabit switches or entry-level NVRs may struggle with multiple streams or full frame rate; test before full deployment.
• The microSD edge storage is valuable, but it's a buffer, not a permanent archive. If your network goes down for days, a microSD card will eventually fill. Use it for short outages only.

The 02510-001 is the correct choice for large outdoor areas — parking lots, perimeters, loading docks — where a single panoramic vantage point eliminates blind spots and you need forensic-grade detail in mixed lighting. Pair it with an NVR that supports full 6MP @ 60 fps recording, and you've got a high-confidence coverage solution for most enterprise outdoor surveillance requirements.

Key Specifications:
Field of View: 182°
Color: White
