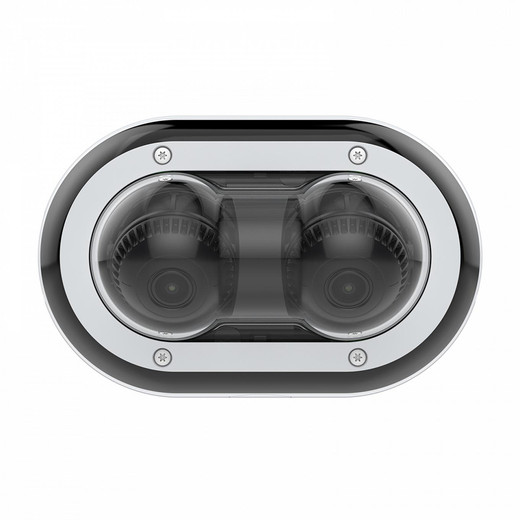

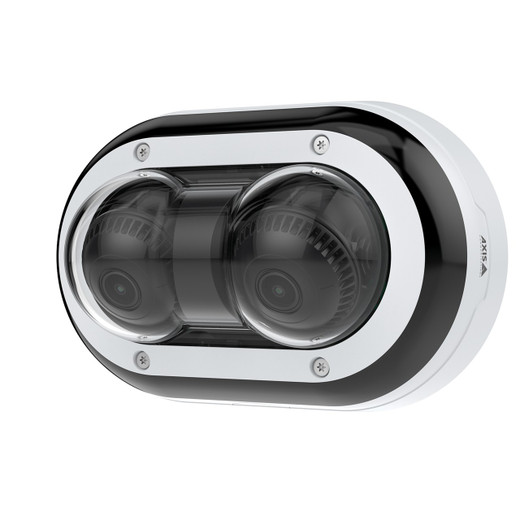

Axis 02416-001 P4707-PLVE Dual-Sensor Panoramic IP Camera
Overview
The Axis 02416-001 is a dual-sensor outdoor IP camera designed to deliver panoramic coverage from a single installation point. Each of its two 5 MP sensors captures independently, allowing the camera to monitor multiple angles simultaneously without mechanical panning or tilting. This architecture eliminates the coverage gaps inherent in single-lens designs and reduces the number of cameras required for wide-area surveillance — a significant cost and labor advantage on large perimeter or warehouse projects.
Built on the ARTPEC-8 processor, the 02416-001 integrates edge-based analytics powered by deep learning. This means object detection and classification happen on the camera itself, not on a separate server or NVR. You reduce backend load, lower latency on alerts, and avoid streaming redundant data — only flagged events consume storage bandwidth. Learn what analytics capabilities matter for your deployment in our camera selection guide.
Key Features
- Dual 5 MP Sensors: Two independent image sensors deliver a combined 10 MP of simultaneous capture, enabling true 360° surveillance from a single mount point. Reduces installation footprint and cabling compared to deploying two separate cameras.
- 360° IR Illumination: Integrated infrared coverage in all directions means the camera sees moving objects and details in complete darkness without relying on ambient light. Critical for perimeter monitoring or unlit warehouse aisles where lighting retrofits are impractical.
- Lightfinder Technology: Axis's proprietary low-light enhancement delivers color detail in twilight or dawn conditions where standard cameras lose detail. Particularly useful for entry-point monitoring where identity verification requires usable color information.
- Forensic WDR (Wide Dynamic Range): Handles scenes with mixed bright and dark areas — for example, a loading dock entrance with sunlit exterior and shadowed interior. WDR preserves detail in both zones simultaneously, avoiding the overexposure or underexposure you'd see with standard cameras in such transitions.
- Varifocal Positioning: Each sensor head can be independently angled and focused, allowing one head to cover a wide perimeter view while the other zooms in on an access point or critical zone. The 2.5x zoom on each head provides enough magnification for facial detail at typical entrance distances.
- H.264 Compression with Zipstream Support: H.264 codec is industry-standard; optional Zipstream further reduces bitrate by up to 50% in low-motion areas (hallways, empty loading bays) without sacrificing sharpness. On a 24/7 multi-camera NVR deployment, this reduces storage requirements materially — often the difference between a 12 TB and 8 TB recorder for the same retention period.
- Audio Input: Single audio input allows you to pair the camera with an external microphone or line-level source (e.g., dock activity alert, intercom). Useful for correlating security events with operational audio in warehouses or transaction-heavy environments.
- PoE Powered: Draws power via standard PoE (802.3af) — no separate 12V supply needed. Simplifies wiring and leverages existing PoE infrastructure.
- IP66 Rating: Sealed against rain, dust, and washdown spray. Deploy on exterior walls, roof-mounted poles, or covered loading docks without worry about weather ingress. Not rated for submersion (IP67); if the mounting location is subject to heavy flooding or spray from cleaning, confirm IP66 is sufficient for your site.
- ONVIF Compliance: Works with any ONVIF-compliant VMS (Milestone, Axis Camera Station, etc.), avoiding vendor lock-in. Firmware updates are signed and secure boot is enforced, protecting against unauthorized code injection.
Integration & Compatibility
The 02416-001 integrates with any ONVIF Profile S-compliant NVR or VMS. Axis Camera Station, Milestone XProtect, and other enterprise platforms support the ARTPEC-8 chipset's deep learning analytics. If you're planning a multi-camera surveillance system, coordinate PoE switch capacity upfront — this camera's typical draw is around 13 W, so a standard 802.3af PoE switch will handle it alongside most other cameras, but verify your switch's per-port and total power budget if you're mixing higher-power devices (e.g., PTZ units, heaters, or dual-sensor cameras on a single switch).
Mounting brackets and weatherproof cable glands are sold separately. The camera supports wall, ceiling, or pole mounting with appropriate hardware.
When to Choose a Different Model
If your deployment requires higher resolution and you can accept a single-sensor form factor, consider a higher-megapixel variant within the Axis camera line — they deliver more absolute pixel density for forensic zoom. If panoramic coverage is unnecessary and you need a compact turret or dome, a standard fixed-lens alternative may reduce cost and profile. If you need thermal (infrared temperature measurement) rather than visible-light night vision, thermal models are a separate product family.
Frequently Asked Questions
Q: What's the maximum distance at which the 02416-001 can identify a person?
A: At 5 MP per sensor and typical lens coverage, expect reliable facial detail (identification-grade) at roughly 10–15 feet. At 20+ feet, the camera captures enough to confirm human presence and basic direction of movement. Exact distance depends on lens setting, lighting, and your VMS zoom capabilities.
Q: Does the 02416-001 work with Milestone XProtect?
A: Yes. The camera is ONVIF Profile S-compliant and supports Milestone integration. The ARTPEC-8 deep learning analytics are visible as metadata events in XProtect, allowing you to trigger rules and alarms on object detection without a separate analytics appliance.
Q: Is the 02416-001 NDAA Section 889 compliant?
A: Axis is a Swedish manufacturer and is not on the FCC's Entity List. However, for federal contracting, verify with your project's compliance officer. If you require a specific country-of-origin or supply-chain attestation, contact the manufacturer or your distributor for documentation.
Q: Can I use one sensor head for wide-angle and the other for zoom without losing coverage?
A: Yes, that's a primary design advantage. You can position one head at a wide angle to cover the entire loading bay entrance, and angle the second head to zoom in on the transaction counter or badge reader. Both streams are independent, so you retain full 360° awareness while having a zoomed detail view on demand.
Q: How much does the 02416-001 cost to operate annually in terms of power?
A: At roughly 13 W maximum draw, running 24/7 for 365 days costs approximately 114 kWh annually. Typical U.S. electricity rates (12–15 ¢/kWh) translate to $13–17 per camera per year in power alone — negligible compared to installation and storage infrastructure.
Q: What frame rate does the 02416-001 deliver?
A: Each sensor supports up to 30 fps at full 5 MP resolution. If you need higher frame rates, check the datasheet for supported modes — some camera families allow 60 fps at reduced resolution, though the 02416-001 design prioritizes full-resolution dual-sensor streaming.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02416-001 (often searched as 02416 001) solves a real problem on large perimeter or warehouse projects: eliminating the need for multiple cameras to achieve 360° coverage. The dual 5 MP sensor architecture with independent varifocal heads is where the leverage sits. You're not forced into a choice between wide panoramic coverage and zoomed-in detail — you get both simultaneously, each sensor working independently. That's a material reduction in per-camera footprint, cabling runs, and NVR channel count compared to deploying two single-sensor cameras.
Technical Highlights:
- ARTPEC-8 + Deep Learning Analytics: Edge-based object detection and classification run on the processor itself, not offloaded to a server. That means you reduce NVR CPU load, lower event latency, and cut bandwidth consumption because the camera only streams full-resolution when motion or classified objects are detected. In low-motion periods (overnight empty warehouses), bitrate drops materially.
- 360° IR + Lightfinder: The combination covers both extremes — complete darkness (IR), and low-light color scenarios (Lightfinder). No single-camera deployment sees in pitch black and retains color detail in dawn/dusk; this one does on both axes simultaneously, which is rare in the outdoor camera market.
- H.264 + Zipstream: Zipstream cuts bitrate by 50% in static scenes without quality loss on motion. On a 24/7 dual-sensor setup, that easily offsets the storage overhead of two 5 MP streams. Real-world retention cost is competitive with single higher-megapixel alternatives.
Deployment Considerations:
- The varifocal adjustment on each head requires field configuration — you cannot set it remotely. Plan for on-site commissioning time to angle and focus each lens, especially if mounting location is difficult to access later.
- 5 MP per sensor is moderate resolution. If your deployment requires forensic zoom to 40+ feet with identification-grade detail, a single higher-megapixel camera or a PTZ may deliver better ROI. The 02416-001 excels at multi-angle overview and short-range detail, not long-distance identification.
- PoE power draw is approximately 13 W — well within 802.3af budget. However, if your PoE switch is already strained by other cameras, verify headroom before committing to a multi-camera rollout.
The 02416-001 is positioned for operators who need synchronized multi-angle coverage in a single footprint — loading dock perimeters, warehouse floor corners, vehicle entry gates. If your use case is single-angle surveillance or extreme-distance forensic capture, this is not the right model. If you're balancing perimeter count against site footprint, this camera pays for itself.
