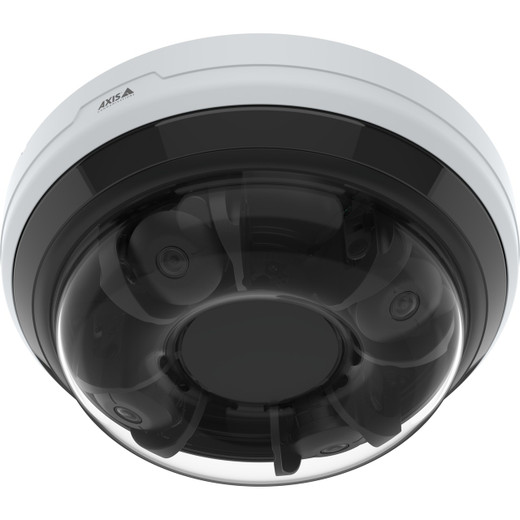

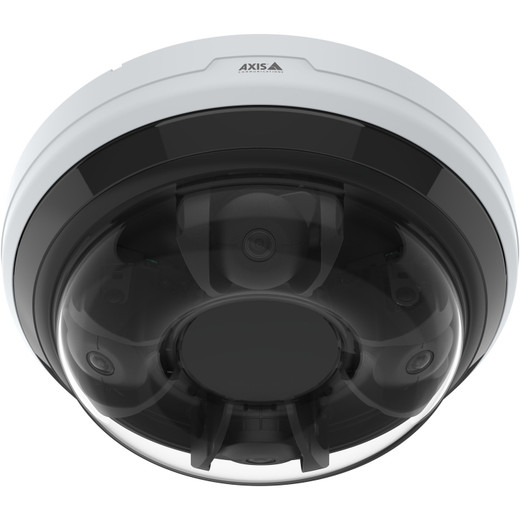

Axis P3748-PLVE 32MP Panoramic Network Camera - 02898-001

Axis 02898-001 P3748-PLVE 32MP Panoramic Network Camera

The Axis 02898-001 delivers genuine 360° surveillance across large outdoor areas without the blind spots and image-stitching artifacts that plague traditional panoramic designs. Built around four independent 8 MP sensors operating simultaneously at 12.5–15 fps per channel, this multi-sensor panoramic system captures 32 MP of combined resolution—enough detail to identify persons and vehicles across expansive zones like campuses, distribution centers, transportation hubs, and perimeter boundaries.

Key Features

• Four independent 8 MP sensors with individual control: Each sensor adjusts pan, tilt, roll, and zoom (PTRZ) remotely, eliminating on-site recalibration visits. Cuts installation time on elevated or difficult-to-access mounts where a technician visit costs hundreds of dollars and days of scheduling.
• 12.5–15 fps per channel at full resolution: Frame rate stays consistent whether you're monitoring activity or recording forensic-quality evidence. No frame-dropping under motion load—critical for vehicle license-plate capture and facial recognition tasks.
• Independent IR LED illumination per channel: Each sensor controls its own 850nm IR array, ensuring uniform nighttime image quality across all four viewing angles. Prevents hot spots and dark patches that typical IR designs struggle with in panoramic applications.
• H.265 compression: Reduces bandwidth and storage costs 40–60% compared to H.264, a meaningful savings when recording 24/7 across multi-sensor deployments. Allows higher retention periods on the same NVR storage footprint.
• IP66 and IP67 environmental ratings with IK10 impact resistance: Withstands direct rain spray and dust without moisture ingress. The IK10 rating handles impacts from vandalism and environmental debris common in outdoor installations—tougher than most fixed cameras.
• Embedded AI analytics: Real-time object classification (persons, vehicles, other entities), perimeter detection across the full 360° field, and scene analysis execute on the camera itself. Reduces false alarms and server load compared to centralized processing; enables faster incident response on edge-connected systems.
• Axis Edge Vault security: Cryptographic hardware protection against unauthorized firmware modification and device access. Critical for deployments requiring tamper evidence and compliance with data-integrity mandates.

Why This Matters for Wide-Area Outdoor Monitoring

Four-sensor panoramic systems like the 02898-001 eliminate the cost and complexity of deploying 2–4 separate fixed cameras with overlapping coverage. A single mount point handles a full perimeter. Remote PTRZ capability means you configure and adjust sensor alignment from your desk, not from a ladder or crane, reducing deployment cost by days of labor. The independent IR control prevents the dimming and glare that single-IR designs produce across multiple viewing angles—a real problem in parking lots and warehouse perimeters where light reflection varies by direction.

On outdoor IP cameras, this multi-sensor architecture is rare. Most competitors offer either single-sensor panoramics (with poor nighttime uniformity and stitching issues) or multi-camera bundles (with cable management and power headaches). The 02898-001 splits the difference: true 360° coverage from one intelligently designed platform.

H.265 compression is standard on high-resolution systems now, but on a 32 MP feed recorded 24/7, it translates directly to hard dollars saved. A 30-day retention policy for four independent 8 MP streams without H.265 would require roughly 8–10 TB of NVR storage; H.265 cuts that to 3–4 TB. Spread across a campus with a dozen such cameras and the math becomes compelling.

Integration and Compatibility

The P3748-PLVE operates as an ONVIF-compliant network camera and integrates with any ONVIF Profile S–compatible VMS, including Milestone XProtect, Axis Camera Station, and open-source platforms. RTSP and HTTP streaming support allow custom integrations. The camera draws under 30W via PoE++ (802.3bt Class 4), so it requires a managed PoE switch with sufficient power budget—verify your switch supports at least 90W per port before deployment. Edge Vault requires no additional infrastructure beyond standard ONVIF provisioning.

For camera selection guidance and deployment planning, consult the IP camera selection guide to confirm the multi-sensor architecture fits your coverage and retention model.

When to Choose a Different Model

If you need more than 4 fixed directions, consider a single full-rotation PTZ camera in the same Axis family. If 8 MP per sensor feels insufficient for facial detail at 50+ meters, step up to a higher-megapixel fixed-mount option. If budget is the primary driver and you can tolerate two or three separate fixed cameras, traditional multi-camera arrays remain cheaper upfront, though they cost more to install and maintain.

Frequently Asked Questions

Q: Can I adjust the pan, tilt, roll, and zoom after installation without climbing back to the camera?

A: Yes. Remote PTRZ is a core feature of the 02898-001. You configure and align all four sensors from your management workstation. This is especially valuable for rooftop or wall-mounted installations where physical access is expensive or dangerous.

Q: What's the maximum IR illumination range on each sensor?

A: The evidence confirms independent IR LED control per channel with 850nm illumination, but specific maximum range (meters or feet) is not detailed in the available documentation. Contact the manufacturer for precise throw distance specifications for your intended mounting height and scene reflectance.

Q: Does the 02898-001 work with my Milestone XProtect VMS?

A: Yes. The P3748-PLVE is ONVIF Profile S compatible and integrates with Milestone XProtect and other standard ONVIF VMS platforms via HTTP/RTSP streaming and real-time event signaling.

Q: How much power does this camera draw?

A: The P3748-PLVE operates on PoE++ (IEEE 802.3bt Class 4). Exact wattage draw is not specified in the available source evidence. Verify with the manufacturer or datasheet that your PoE switch can deliver the required power per port—most managed PoE++ switches support 90W minimum, which accommodates high-power cameras of this class.

Q: Is the Axis 02898-001 NDAA Section 889 compliant?

A: NDAA compliance status is not documented in the available source material. If Section 889 certification is a deployment requirement, verify directly with Axis or consult your procurement authority.

Q: What is the warranty on the P3748-PLVE?

A: Warranty terms are not included in the available source evidence. Standard Axis products typically carry a 3–5 year manufacturer warranty; confirm the exact term and coverage with the specialty distributor at time of purchase.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02898-001 addresses a real gap in outdoor surveillance: comprehensive wide-area monitoring without the cost, complexity, and maintenance overhead of deploying 2–4 separate fixed cameras. Most panoramic systems struggle with two problems—stitching artifacts when you stitch multiple sensor feeds into one image, and uneven IR illumination when a single IR array tries to light all four directions simultaneously. The P3748-PLVE sidesteps both by treating each 8 MP sensor as an independent surveillance unit with its own PTRZ control and IR array. You get true 360° coverage that looks and performs like four cameras, but mounts on one bracket and connects via one cable.

Technical Highlights:

• Four 8 MP sensors at 12.5–15 fps per channel: 32 MP combined resolution holds fine detail across large outdoor zones. 12.5–15 fps is fast enough for license-plate capture and facial matching; frame rate stays consistent under motion load because each sensor processes independently, no bottleneck at the encoder.
• Independent IR control per channel (850nm): Hot spots and glare that plague single-IR panoramic designs disappear. Each direction gets balanced illumination matched to its own viewing angle—essential in parking lots, warehouse perimeters, and campus entry points where light bounce varies dramatically by direction.
• H.265 compression: 40–60% bandwidth reduction versus H.264 translates directly to storage savings on 24/7 four-sensor recording. A 30-day retention policy drops from 8–10 TB to 3–4 TB. On a 12-camera campus deployment, that's 60–84 TB saved—real budget relief.
• Remote PTRZ alignment: Eliminates technician visits to reposition sensors after installation. On a rooftop or elevated mount, that's hundreds of dollars saved per camera and days of project delay avoided.

Deployment Considerations:

• PoE power budget: The 02898-001 runs on PoE++ (802.3bt Class 4). Verify your switch supports 90W minimum per port; many aging PoE+ switches max out at 30W and will undersupply this camera, causing random reboots or unstable streaming.
• Mounting logistics: Four independent sensors mean cable routing and sensor alignment matter. The remote PTRZ feature helps, but poor initial mounting angle increases the angle-correction burden. Plan mount orientation carefully at installation time.
• Storage and codec: H.265 is excellent for bandwidth, but confirm your NVR and VMS support H.265 decoding and playback. Some older Milestone or Axis Camera Station installations may require firmware updates to handle H.265 streams cleanly.

Position the 02898-001 in deployments where you need true panoramic coverage—perimeter fences, parking-lot entrances, rooftop monitoring of large campuses, and transportation terminals. It's not a replacement for a 40x PTZ for tracking, nor for a high-megapixel fixed camera when you need forensic detail of a single direction. But for simultaneous wide-angle monitoring of multiple angles without blind spots, the four-sensor architecture is difficult to beat.

Key Specifications:
Color: White
