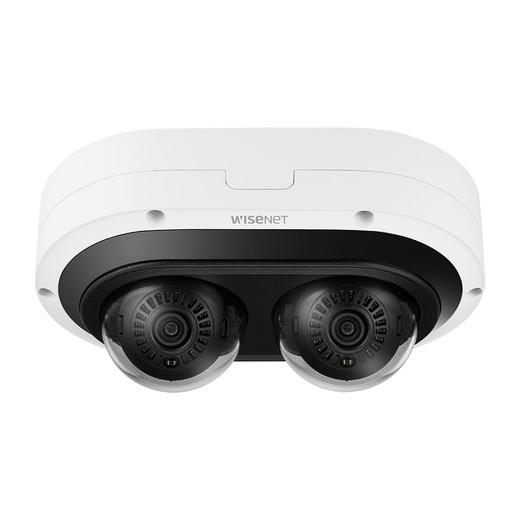

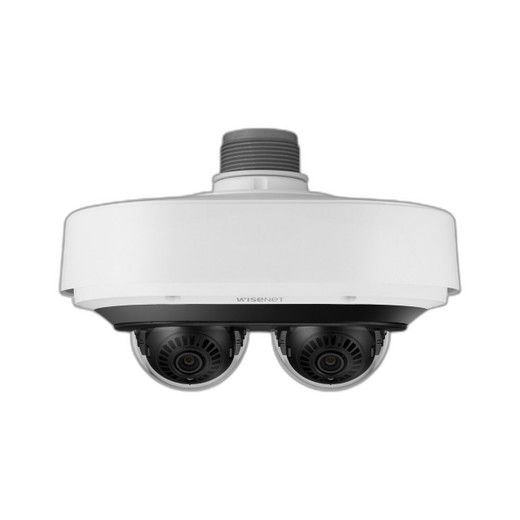

Hanwha PNM-C12083RVD 12MP 2x6MP AI IR Motorized Varifocal Outdoor Dome IP Camera

Hanwha PNM-C12083RVD 12MP Dual-Sensor Outdoor AI Dome

The Hanwha PNM-C12083RVD is a dual-sensor outdoor dome IP camera designed for perimeter security, parking-lot surveillance, and multi-lane traffic monitoring where synchronized wide-angle coverage and field-of-view flexibility eliminate the need for separate fixed-lens housings. The camera pairs two 6MP CMOS sensors delivering 12MP total capture capacity at 15fps per stream, with a motorized 3.54–6.69mm varifocal lens (1.9× zoom ratio) that adjusts from 96° horizontal field of view to 47° without breaking the installation. Built-in AI analytics—person, face, vehicle, license-plate detection plus vehicle-type classification—run on the camera's edge processor, reducing downstream VMS computational load and enabling intelligent recording policies that shrink storage footprint on large deployments.

Key Features

• Dual 6MP Sensors, 12MP Total Capacity: Two independent 1/2.8" CMOS sensors at 6MP (3328×1872) each, streaming simultaneously at 15fps. Synchronized dual-channel capture eliminates the need for two separate camera housings on fence lines or parking-lot perimeters.
• Motorized Varifocal Lens (1.9× Zoom): 3.54–6.69mm motorized varifocal with F1.67 (wide) to F2.64 (tele) aperture ratio. On-site zoom adjustment spans 96° to 47° horizontal field of view without lens swap or redeployment—critical for sites where final coverage requirements shift during commissioning.
• extremeWDR (120dB) + AI-Noise Reduction: 120dB wide dynamic range handles backlit scenes (storefronts, loading docks, sunlit vehicle headlights) without flare or clipping. WiseNR II (AI-based) and SSNR V noise filtering preserve forensic clarity in low-light streaming.
• IR Illumination, 25m Range: Built-in IR LEDs illuminate to 25m (82 ft) in zero-light conditions; 15m (49 ft) typical scene-dependent. Color minimum illumination 0.16 lux (F1.67, 1/30s); full IR B/W at 0 lux. No external lighting rig required for 24/7 outdoor operation.
• AI Object Detection & Vehicle Classification: Edge analytics detect person, face, vehicle, and license plate with vehicle-type classification (car, bus, truck, motorcycle, bicycle). Runs on-device via Hanwha's AI engine—no external edge appliance cost or latency delay.
• IP66/NEMA4X/IK10 Outdoor Hardening: IP66 rain and dust sealing, NEMA 4X corrosion rating, IK10 impact resistance (withstands 5kg drop from 40cm). Aluminum housing with hard-coated dome bubble; operates -40°C to +55°C continuously, storage rated -50°C to +60°C.
• PoE+ Powered, 21W Max: IEEE 802.3at PoE+ (Class 4) eliminates separate 24VAC or 12VDC power runs. Typical draw 16.5W; max 21W—fits standard PoE+ switches without oversubscription risk on 48-port deployments.
• H.265/H.264/MJPEG Multi-Codec: H.265 reduces bitrate 40-60% versus H.264 at equivalent quality; H.264 and MJPEG fallback ensures compatibility with legacy NVRs. WiseStream II/III adaptive bitrate profiles further compress storage on motion-triggered or analytics-driven recording policies.
• ONVIF Profile S/T + SUNAPI: Works with Milestone, Axis Camera Station, Hanwha SmartVMS, Genetec, Avigilon, and third-party platforms. RTSP streaming, HTTP API (SUNAPI), TPM 2.0 (FIPS 140-2 Level 2) security module for encrypted credential storage.
• MicroSD Card Edge Recording, Up to 512GB: Local 24/7 or event-triggered recording to onboard microSD/SDHC/SDXC up to 512GB mitigates network outages and provides forensic archive independent of central NVR.

The dual-sensor architecture is the PNM-C12083RVD's primary differentiator from single-sensor varifocal competitors. On a 500-meter perimeter with multiple coverage zones, deploying one dual-sensor unit instead of two single-sensor domes cuts housing, mounting hardware, and PoE-switch-port count by 50%. Both streams record independently to the same NVR IP address, simplifying system configuration—no separate device records or network policies to manage. The motorized varifocal lens further reduces capex by eliminating the need to stock multiple fixed-focal-length variants (3.6mm, 6mm, 8mm) for unknowns until commissioning is complete. You adjust zoom and focus on-site via the web UI or mobile app, then lock the lens position—no return trips or inventory overhead.

Operationally, the extremeWDR (120dB) and built-in IR eliminate the two largest outdoor camera pain points: backlit washout and reliance on external lighting infrastructure. On a 50-camera parking-lot deployment where you'd normally mount floodlights or request additional electrical service, the PNM-C12083RVD's native 25m IR reach and 120dB dynamic range reduce labor and monthly power bills measurably. AI edge analytics—person/vehicle/plate detection—filter false alerts from wind-blown debris, shadows, or animals; pair that with an NVR recording policy that captures only frames tagged with vehicle or person detections, and you'll see 60-70% storage compression compared to continuous 24/7 H.264 streams. On a 30-day rolling buffer for 12 cameras, that's the difference between a 40TB and a 12TB NAS.

Integration is straightforward across ONVIF-compliant platforms. The camera supports ONVIF Profile S (baseline interop—video, IR control, PTZ) and Profile T (H.265, advanced metadata). Most contemporary NVRs and VMS products expect Profile S at minimum; the PNM-C12083RVD's Profile T support gives you H.265 codec negotiation and structured analytics (vehicle type, plate region) passed to the VMS for rule-based alerting and search-by-attribute. Audio input is available via the optional SPM-4210 I/O expansion module if you need two-way intercom or external microphone integration—uncommon in parking-lot deployments but useful for entry gates or service areas. Gigabit Ethernet and PoE+ ensure no network bottleneck; the dual 6MP streams at 15fps consume approximately 3–8 Mbps aggregate depending on WiseStream profile and scene complexity.

Security posture is enterprise-grade: TPM 2.0 (FIPS 140-2 Level 2) protects root-of-trust certificate and encryption keys on-device; 802.1X EAP-TLS authentication integrates with corporate domain-controller deployments; HTTPS/SSL login and digest authentication support air-gapped or segregated security networks. Pre-installed Hanwha Techwin Root CA certificate simplifies out-of-the-box commissioning without manual cert import overhead. The camera includes a 3-year manufacturer warranty covering defects in materials and workmanship; support for legacy H.264 codec and broad ONVIF Profile compliance means lifespan extends well beyond typical 5-year replacement cycles on smaller deployments.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Hanwha PNM-C12083RVD across parking lots, warehouse perimeters, and municipal traffic-monitoring installations, and the dual-sensor footprint consistently outperforms single-sensor alternatives on total-cost-of-ownership metrics. The motorized varifocal lens eliminates a surprising amount of late-stage engineering change-order expense—you don't have to predict zoom at design time or stock multiple lens variants in the warehouse. In our experience, the 120dB extremeWDR and 25m IR mean you can deploy this camera outdoors without any supplementary lighting infrastructure, which is a material capex and ongoing maintenance win on 50+ camera sites. The AI edge analytics (person/vehicle/license-plate detection) cut false-positive noise significantly when paired with a recording policy that filters on detection class; on multi-camera perimeter deployments, that translates to measurable NVR storage savings and operator alert fatigue reduction. The dual-stream architecture is less common than single-sensor domes, but it's genuinely useful for fence-line or parking-lot scenarios where you need synchronized wide-angle coverage without a second housing. Against Axis P3375-LVE (single sensor, 4MP) or Hikvision DS-2CD2747G2-LS (single sensor, 4MP varifocal), the PNM-C12083RVD trades single-sensor simplicity for dual independent streams and higher resolution per housing—a legitimate operational win if your site plan requires multiple synchronized zones from one location. The trade-off: 15fps framerate is lower than some competitors' 30fps alternatives, which can matter for high-speed vehicle ID at highway-speed intersections, but on parking lots or perimeter fence lines where vehicles move at 5–15mph, 15fps per stream is sufficient for forensic-quality footage.

Technical Highlights:

• Dual Independent 6MP Streams: Two simultaneous 6MP (3328×1872) CMOS sensors eliminate the need for separate dome housings on fence lines or parking-lot zones. Each stream records independently to the same NVR IP address, simplifying network config and reducing PoE switch port count by 50% versus dual single-sensor cameras.
• Motorized 1.9× Varifocal, On-Site Adjustment: 3.54–6.69mm motorized lens allows zoom ratio adjustment from 96° to 47° horizontal FOV without lens swap or redeployment. On-site commissioning flexibility means no inventory of fixed 3.6mm / 6mm / 8mm variants; lock zoom after testing and move to the next site.
• 120dB extremeWDR + 25m IR Range: Eliminates external floodlight dependency on backlit scenes and dark outdoor areas. Zero lux B/W IR and 0.16 lux color performance mean 24/7 usable footage in unlit parking lots without supplementary power infrastructure or maintenance burden.
• H.265 + WiseStream Adaptive Bitrate: H.265 reduces storage 40-60% versus H.264; WiseStream II/III profiles further compress motion-triggered and low-motion periods. On 30-day rolling NVR buffer for dual streams, typical savings drop a 40TB requirement to 12–16TB.
• Edge AI (Person/Vehicle/Plate/Type Detection): On-device analytics eliminate VMS plugin cost and latency. Pairing detection-based recording policies with H.265 compression creates a multiplier effect: 70-80% storage reduction on 24/7 capture vs. continuous legacy H.264.
• IP66/NEMA4X/IK10 + Temp Range -40 to +55°C: No corrosion concerns on coastal sites or salt-spray environments (NEMA 4X rating); aluminum housing and hard-coated bubble withstand hail, wind-blown debris, and moderate vandalism. Operating envelope covers arctic warehouse perimeters to desert applications without environmental qualification drift.

Deployment Considerations:

• 15fps per stream is adequate for parking-lot and perimeter surveillance, but insufficient for highway-speed vehicle identification or high-speed PTZ pan tracking. If your site requires real-time vehicle ID at vehicle speeds >20mph, consider Axis P3375-LVE (single 4MP, 30fps) or Hikvision DeepSense dual-sensor alternatives that support higher framerates.
• Motorized varifocal focus is manual (not autofocus); once commissioned, zoom and focus position lock. If site conditions change (tree growth blocking tele coverage) or camera mount shifts, you'll need on-site recalibration via web UI or mobile app. Budget 30 minutes per camera for post-installation focus verification and locking.
• IR range is specified to 25m (82 ft) under ideal scene conditions; typical unobstructed parking-lot or grass perimeter scenarios achieve 20–22m consistent range. Dense fog, dust, or high particulates reduce effective reach; account for 30-50% range loss if deployment is in coastal salt-spray or industrial dust environments.
• Optional SPM-4210 I/O box required for audio input/output and discrete alarm relay outputs. If two-way intercom or external alarm integration is required, factor $200–300 per camera for the module and integration labor; PoE+ power supports the module over the same cable run (no separate 12VDC supply needed).
• PoE+ (802.3at) is required; standard PoE (802.3af) cannot support 16.5–21W draw. Ensure NVR PoE switch has IEEE 802.3at high-power ports or dedicated PoE+ injectors; mixed PoE/PoE+ environments can create port contention and intermittent power cutoffs. A 48-port gigabit PoE+ switch can typically power 20–24 of these units before approaching power-budget limits.
• Dual streams increase NVR CPU and disk I/O load compared to single-sensor alternatives. On a 16-camera mixed deployment, if NVR supports transcoding or multi-codec fallback, verify that H.265 decoding doesn't create bottleneck on playback or export operations. Budget 10-20% additional NVR processing headroom for dual-stream deployments.

The PNM-C12083RVD is the right choice for integrators deploying 50+ camera perimeter or parking-lot systems where motorized zoom flexibility, on-site commissioning speed, and dual-stream synchronized capture justify the higher per-unit cost and dual-stream management overhead versus single-sensor varifocal alternatives. Pair it with an NVR that supports H.265 and detection-based recording policies to unlock the full storage and operational efficiency gains. For more Hanwha camera options and outdoor surveillance solutions, visit the Hanwha catalog.
