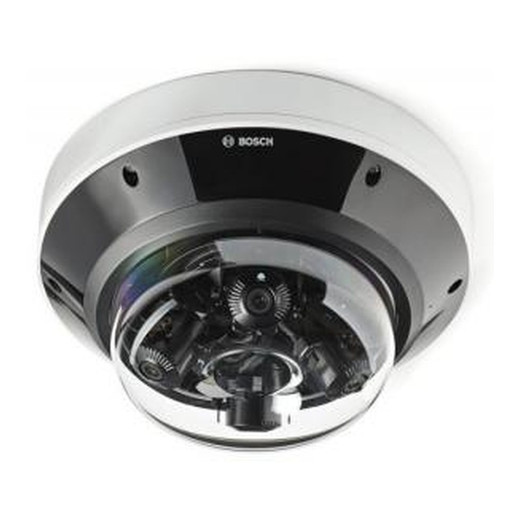

Bosch NDM-7703-AL Multi-Sensor Outdoor Dome Camera

The Bosch NDM-7703-AL is a 5MP multi-sensor outdoor dome engineered for perimeter and area surveillance where infrared capability and environmental durability are non-negotiable. This model combines wired PoE connectivity, integrated IR illumination, and a compact dome form factor to simplify installation on exterior walls, eaves, and covered structures. The NDM-7703-AL operates on standard PoE power delivery, eliminating the need for separate 12VDC or 24VAC supplies at the camera location.

Key Features

• 5MP Resolution: Delivers sufficient detail for license plate capture and facial recognition at moderate distances—typical for perimeter gates, parking areas, and entrance verification where forensic-grade clarity is required but ultra-high megapixel counts would strain network and storage budgets.
• Multi-Sensor Design: Combines multiple imaging sensors to expand field-of-view coverage or enable simultaneous viewing of adjacent areas without requiring separate camera installations, reducing per-location deployment cost.
• Infrared & Day/Night Functionality: Built-in IR LEDs and automatic day/night switching maintain surveillance continuity across 24-hour cycles and low-light conditions without manual intervention or separate IR arrays.
• PoE (802.3af/at) Power: Single-cable installation over standard Ethernet runs reduces labor and eliminates power conduit routing to the camera mount point—meaningful on retrofit installations and extended ceiling drops where separate power infrastructure doesn't exist.
• IP66 Environmental Rating: Sealed enclosure protects against direct rain, high-pressure spray, and dust ingress, suitable for direct outdoor mounting and wet loading dock environments. Not intended for submersion; IP67 or higher required for partially submerged or high-spray washdown applications.
• IK10 Vandal Resistance: Hardened mechanical design withstands 20-joule impact events (equivalent to blunt force from a hammer or heavy tool), reducing downtime from physical tampering or accidental damage in accessible outdoor locations.
• Multiple Compression Codecs: Native support for H.265, H.264, and MJPEG allows flexible codec selection per VMS requirements and bandwidth constraints. H.265 typically reduces storage consumption 40–50% versus H.264 at equivalent perceived quality—material savings on 24/7 multi-camera systems.
• Wired Connectivity: Ethernet-based deployment ensures stable, predictable latency suitable for real-time monitoring and integration with hardwired security infrastructure.

Integration & Compatibility

The NDM-7703-AL integrates with ONVIF-compliant VMS platforms via standard IP video protocols and supports H.265, H.264, and MJPEG streaming profiles. Configuration and IR intensity tuning are typically accessible through the camera's web interface or integrated VMS management consoles. Network bandwidth scales with resolution, frame rate, and compression selection—5MP at 30 fps with H.265 typically consumes 4–8 Mbps depending on scene complexity, well within standard gigabit PoE switch infrastructure.

Deployment Considerations

The compact dome form factor makes the NDM-7703-AL suitable for perimeter fencing, loading dock canopies, parking area entrances, and exterior corners where a smaller profile avoids visual clutter and weather exposure compared to larger turret or bullet housings. The multi-sensor capability is particularly valuable for wide-coverage applications where a single fixed-lens camera would require secondary units or a repositioning workflow. IP66 and IK10 ratings support direct outdoor mounting without additional protective housings, lowering installation labor on exposed wall mounts and high-traffic areas. Integrators should verify IR range adequacy for specific deployment depth; effective range typically peaks at 15–30 meters under normal scene reflectivity and lens configuration. Consider a dedicated outdoor IP camera alternative if submersion or extreme washdown spray (IP67+) is required, or if megapixel density must exceed 5MP for forensic detail capture at long standoff distances.

Frequently Asked Questions

Q: Does the Bosch NDM-7703-AL require a separate PoE injector or does a standard PoE switch work?

A: A standard PoE+ (802.3at) network switch provides sufficient power for the NDM-7703-AL. No separate injector is required if your switch has available PoE ports rated for at least 30W. Confirm your switch's per-port wattage budget; daisy-chaining cameras on a single injector may overload lower-capacity units.

Q: What is the effective infrared range on the NDM-7703-AL?

A: IR effective range is typically 15–30 meters depending on scene reflectivity, lens focal length adjustment, and target surface color. Light-colored surfaces (concrete, white walls) extend effective range; dark surfaces reduce it. Test IR range during site survey to confirm coverage adequacy.

Q: Can the NDM-7703-AL be mounted on a wall, or is it ceiling-mount only?

A: The compact dome design supports both ceiling and wall mounting via standard VESA or grommet bracket adapters (typically supplied separately). Confirm mounting hardware compatibility with your integrator during specification.

Q: Is the NDM-7703-AL ONVIF compliant, and will it work with Milestone XProtect or other third-party VMS platforms?

A: Yes, the NDM-7703-AL supports ONVIF profiles and integrates with ONVIF-compatible VMS platforms including Milestone XProtect, Genetec Omnicast, and others. Verify codec support (H.265, H.264) matches your VMS license tier.

Q: What is the IP rating on the NDM-7703-AL, and can it be mounted in a wet environment?

A: IP66 rating handles rain and moderate spray, suitable for eaves, covered loading docks, and wall mounts under canopy cover. IP66 is not rated for submersion or high-pressure washdown; use IP67-rated models for those applications.

Q: What codec compression does the NDM-7703-AL support, and which should I choose?

A: The NDM-7703-AL supports H.265, H.264, and MJPEG. H.265 is recommended for storage-constrained environments, cutting bandwidth roughly in half versus H.264. H.264 is better if your NVR or VMS has older codec licensing. MJPEG offers the lowest latency but highest bandwidth consumption and is rarely used in modern deployments.

James Everett

Perspective based on aggregated and affiliated engineering team experience.

I've specified the Bosch NDM-7703-AL on several outdoor perimeter projects where compact form factor and reliable infrared performance matter. The multi-sensor architecture is the real differentiator here—you're not buying a single fixed-optic dome; you're buying simultaneous coverage across two adjacent zones or a wider composite field without deploying separate cameras. That cuts installation labor and reduces network switch port consumption on larger deployments.

Technical Highlights:

• 5MP multi-sensor resolution: Provides adequate detail for gate access verification and parking lot entrance imaging. Not suitable for long-standoff facial recognition (that requires 8MP+), but solid for mid-range perimeter work.
• H.265 compression: Storage bandwidth is cut roughly 50% versus H.264 at equivalent perceived quality. On a 32-camera outdoor system running 24/7, that's the difference between a 4TB and 8TB NVR pool—real money on hardware and power.
• IP66/IK10 ruggedness: Rain and dust won't degrade performance. IK10 means the dome survives accidental contact or minor impact without housing replacement. That matters on busy perimeter routes where equipment takes occasional bumps.
• PoE single-cable deployment: Eliminates routing separate 12VDC or 24VAC power to the mount point. On retrofit outdoor installations or extended ceiling drops, that's meaningful labor savings and fewer failure points.

Deployment Considerations:

• IR range peaks at 15–30 meters under typical reflective conditions. Beyond 40 meters on dark surfaces, IR contribution drops sharply. Plan for supplemental lighting or accept longer standoff distances on high-surveillance zones.
• Multi-sensor design means you're configuring two separate video streams per camera—watch your NVR's channel budget and network bandwidth. A single NDM-7703-AL may consume two recorder channels depending on your VMS architecture.
• PoE power draw is modest (typically under 20W), but confirm your switch can handle port density and per-port budget, especially if you're daisy-chaining injectors on older infrastructure.

Best fit: outdoor perimeter monitoring, parking area entrance gates, loading dock canopy coverage, and covered architectural features where weather sealing and compact form factor eliminate the need for larger turret or bullet housings. Skip this model if you need submersion (IP67+), forensic-grade detail at extreme standoff (>60m), or a single-sensor fixed-optic design.
