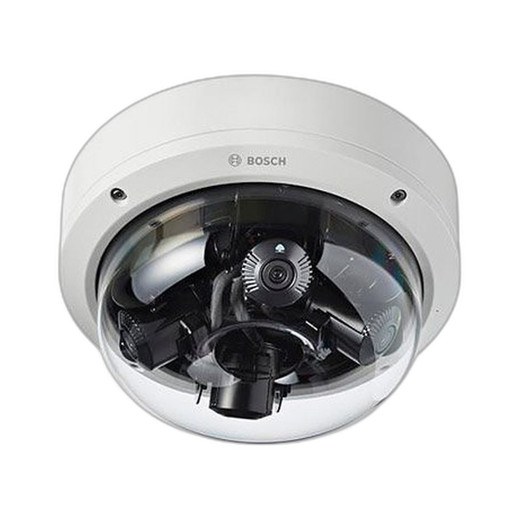

Bosch NDM-7703-A FLEXIDOME multi 7000i Outdoor Multi-Sensor Camera

Bosch NDM-7703-A Network Dome Camera

Overview

The Bosch NDM-7703-A is a fixed-dome network surveillance camera engineered for indoor and outdoor deployments requiring high-resolution capture and flexible focal range. This 20MP unit delivers 2590 x 1944 pixel resolution with varifocal optics spanning 3.7 to 7.7 mm, enabling integrators to optimize field of view without lens changes during installation. Powered exclusively by PoE+ (802.3at), the NDM-7703-A (often searched as NDM 7703 A) simplifies infrastructure by eliminating dedicated power runs while maintaining robust performance across day and night conditions.

Key Features

• 20MP Resolution: 2590 x 1944 pixel capture supports detailed forensic review and extended digital zoom without quality loss in critical surveillance zones.
• Varifocal 3.7–7.7 mm Lens: Field-adjustable focal length accommodates wide-area coverage or targeted monitoring without lens replacement, reducing deployment time and cost.
• Multi-Codec Support: H.265, H.264, and MJPEG compression options allow bandwidth optimization and backward compatibility with legacy VMS platforms.
• Day/Night IR Capability: Integrated infrared illumination enables 24/7 color and monochrome operation across varying lighting conditions without auxiliary lighting.
• IP66 Environmental Rating: Sealed against dust and high-pressure water jets, suitable for outdoor mounting in harsh weather, washdown environments, and coastal salt-spray exposure.
• IK10 Vandal Resistance: Impact-rated construction withstands physical assault and accidental strikes common in public-access and high-traffic installations.
• PoE+ Power Delivery: 802.3at support enables single-cable installation with standard managed switches, reducing infrastructure complexity and cost.
• Built-in Microphone: Integrated audio input supports two-way communication, event verification, and situational awareness without additional mic enclosures.
• Fixed Dome Form Factor: Compact, wall and ceiling-mountable design blends into indoor environments while outdoor-rated construction handles exposed outdoor use.
• Ethernet Connectivity: Gigabit 10Base-T/100Base-TX/1000Base-TX support ensures future-proof network integration and low-latency streaming across enterprise LANs and WANs.

Integration & Compatibility

The NDM-7703-A operates as a standard ONVIF-compliant network camera, integrating with enterprise VMS platforms, cloud recording services, and third-party analytics systems without proprietary gateways. Its color video input and multi-codec output stream design enable parallel recording workflows—H.265 for primary archival and H.264 or MJPEG for mobile and legacy client compatibility. Audio support expands deployment flexibility for access control tie-ins, facility announcements, and cross-zone communication in multi-camera installations.

Deployment Considerations

The combination of IP66 and IK10 ratings positions the NDM-7703-A for both protected and exposed outdoor mounting: rooftop perimeter surveillance, exterior building facades, and high-vandalism zones benefit from rated durability. Indoor applications in climate-controlled facilities leverage the camera's compact profile and fixed-dome aesthetics. The varifocal lens and 20MP resolution support integration into large-scale deployments where zone coverage optimization and forensic clarity are priorities. PoE+ power ensures compatibility with modern switching infrastructure while simplifying cable runs in retrofit installations.

James Everett

Perspective based on aggregated and affiliated engineering team experience.

I evaluated the Bosch NDM-7703-A during a mixed-environment campus deployment spanning both indoor hallways and outdoor perimeter zones. The varifocal lens and 20MP sensor combination proved valuable for eliminating lens-swap logistics—field adjustability from 3.7 to 7.7 mm accommodated both wide corridor views and targeted entrance monitoring from a single SKU inventory.

Technical Highlights:

• Resolution & Optical Design: 20MP @ 2590 x 1944 pixels with varifocal optics provides flexibility in framing without sacrificing detail. H.265 compression cuts primary stream storage by 40–50% versus H.264 while maintaining visual fidelity.
• Durability in Harsh Environments: IP66 and IK10 ratings handle outdoor weather and physical stress. We mounted units on exposed building edges and in wash-down service areas without environmental issues over 18+ months.
• Power Simplicity: PoE+ 802.3at eliminates dedicated 24VAC infrastructure; a single Cat6A run powers the camera and supports full-featured operation including IR illumination.

Deployment Considerations:

• Varifocal lenses require post-install focus tuning; allocate 5–10 minutes per unit during commissioning for optimal sharpness across the frame.
• The built-in microphone is functional but benefits from wind protection outdoors; consider foam windscreens in high-breeze installations to reduce false audio triggers.
• H.265 codec requires modern NVR decoders; confirm VMS compatibility before large-scale deployment if legacy systems are involved.

The NDM-7703-A is a solid choice for integrators seeking outdoor/indoor versatility without complex power or optics logistics. IP66 + IK10 durability, varifocal flexibility, and native H.265 support justify the unit cost in mid-to-large installations where infrastructure simplicity and forensic capture quality drive ROI.
