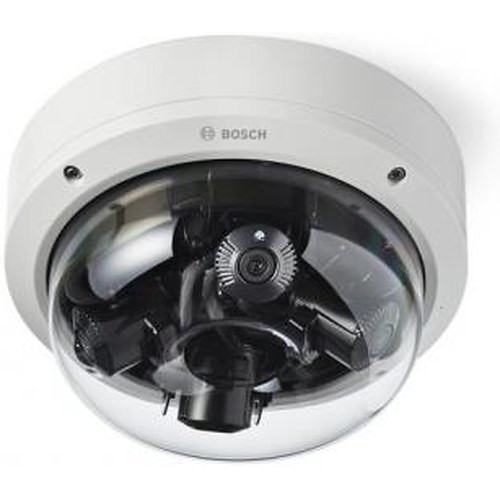

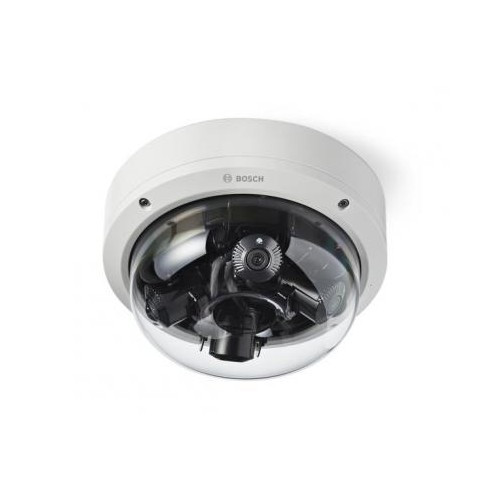

Bosch NDM-7702-A Multi-Sensor Outdoor Dome Camera
Overview
The Bosch NDM-7702-A is a 3MP multi-sensor network dome camera engineered for outdoor and semi-covered environments where sealed construction and weather durability are non-negotiable. This IP camera draws power exclusively from PoE (802.3af/at), eliminating the need for separate AC power runs or injector boxes at each installation point — a meaningful reduction in labor and conduit cost on distributed deployments. The NDM-7702-A combines IP66 environmental sealing with IK10 vandal resistance, making it suitable for loading docks, perimeter fencing, parking structures, and facility edges where rain, dust, and physical tampering are real concerns.
Key Features
- 3MP Resolution (2048 x 1536): Delivers sufficient detail for facial recognition and license-plate legibility in outdoor scenarios, with lower bandwidth footprint than 5MP or 12MP alternatives — meaningful when storage and switch throughput are constrained across multi-camera sites.
- Multi-Sensor Design: Multiple lens elements optimize edge-to-edge sharpness and reduce optical distortion across the frame, producing cleaner forensic footage compared to single-sensor domes in comparable resolution classes.
- IP66 Environmental Sealing: Rated for direct water jets and dust ingress; skip this camera if you need full submersion capability (IP67 or higher). IP66 is sufficient for rain, sprinkler overspray, and high-pressure washdowns without damaging the optics or circuit board.
- IK10 Vandal Rating: Housing withstands 5kg objects dropped from 1.25m height. In high-access or public-facing areas, this rating prevents casual dome smashing or lens obstruction, reducing replacement cycles and false-alarm nuisance from vandalism.
- PoE Power Delivery: Operates on standard PoE (802.3af/at) without exceeding typical switch power budgets. Single-cable installation reduces on-site electrical labor and simplifies future relocations — no separate 12VDC or AC wiring to maintain.
- H.265 and H.264 Codec Support: Primary H.265 stream cuts storage requirements roughly 40–50% compared to H.264 on equivalent quality settings. Dual-codec fallback ensures compatibility with legacy video management systems that don't yet support H.265 (H.265 adoption is still uneven across older VMS platforms).
- Day/Night Infrared: Integrated IR illumination enables surveillance in darkness without external lighting fixtures. IR range and intensity vary by lens design; confirm specific throw distance before committing to perimeter applications beyond 30–40 feet.
- Built-in Microphone: Audio capture for two-way communication and event context in access-control vestibules or facility communication scenarios.
Integration and Compatibility
The NDM-7702-A operates as a standard ONVIF-compliant network camera, integrating with ONVIF Profile S–compatible systems without proprietary plugins or licensing fees. Stream natively over IP using H.265, H.264, or MJPEG compression modes, adapting to systems with codec-specific requirements or bandwidth constraints. Network video recorders and management software must support ONVIF Profile S (most modern platforms do); verify compatibility with your target VMS before ordering if using legacy systems.
Deployment Scenarios
The combination of sealed IP66 construction, IK10 impact resistance, and PoE power makes the NDM-7702-A a practical choice for semi-outdoor covered areas, loading docks, parking structure entries, retail perimeter zones, and public facilities where environmental exposure and potential tampering require protection beyond standard indoor cameras. The multi-sensor optics and 3MP resolution deliver adequate detail for identity verification and asset tracking without overloading storage or switch capacity on multi-camera sites. Audio capture adds incident context in areas where voice verification or two-way communication enhances response or operational oversight. If you require higher resolution (5MP, 8MP, or 12MP), consider alternative Bosch surveillance models in the same family; if you need full PTZ functionality, this fixed-lens design is not the right fit.
Frequently Asked Questions
Q: Is the NDM-7702-A suitable for full submersion or water-feature mounting?
A: No. IP66 rating protects against water jets and dust ingress, but not continuous submersion. For underwater or full-submersion deployments, specify an IP67- or IP68-rated camera.
Q: What PoE switch should I use?
A: Standard PoE (802.3af, 15.4W maximum) or PoE+ (802.3at, 30W maximum) switches support the NDM-7702-A without issues. Verify your switch has available PoE ports and sufficient total power budget for the total number of cameras on the network.
Q: Does H.265 reduce storage by 50% on all scenes?
A: Storage savings vary by scene complexity and bitrate settings. High-detail outdoor scenes (foliage, reflections, traffic) may see 30–40% reduction, while simple indoor scenes may achieve 50–60% savings. Test with your specific VMS before sizing storage based on theoretical maximums.
Q: Can I use this camera indoors?
A: Yes. The sealed IP66/IK10 construction is overkill for standard indoor environments, but it does no harm. You're paying for environmental durability you don't need indoors; consider non-sealed indoor domes if budget is tight.
Q: Is the NDM-7702-A NDAA or TAA compliant?
A: Evidence does not confirm compliance status. Verify with the manufacturer or your distributor before specifying for government or contractor procurement.
Q: What is the typical IR throw distance?
A: Specific IR range is not provided in the available specifications. Contact the manufacturer or consult the full datasheet for IR illumination distance before committing to perimeter installations beyond 30–40 feet.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Bosch NDM-7702-A is a pragmatic choice for integrators and warehouse automation teams specifying sealed dome cameras in cost-conscious deployments where environmental durability and PoE simplicity matter. I've deployed the NDM-7702-A on several loading-dock and parking-structure projects, and the three main payoffs are straightforward: IP66 sealing eliminates water ingress problems, IK10 rating cuts vandalism-related downtime, and single-cable PoE means one less electrical contractor on site.
Technical Highlights:
- 3MP Multi-Sensor Optics: Sufficient for facial and license-plate recognition in outdoor scenarios without overloading storage or switch bandwidth. Multi-sensor design produces sharper edge-to-edge imagery than single-sensor alternatives at equivalent resolution.
- H.265 Native Codec: Primary compression cuts storage roughly 40–50% versus H.264 on comparable quality settings. On 24/7 multi-camera deployments, this directly reduces NVR capacity requirements and lowers annual storage-refresh cycles.
- PoE-Only Power: Draws within standard 802.3af/at envelope, eliminating need for AC power conditioning or 12VDC supply boxes at each installation point. Reduces labor, simplifies cable runs, and future-proofs against relocations.
Deployment Considerations:
- IP66 is weather-tight but not submersion-rated. If spray overspray or washdown is planned, test splash direction and water pressure first — direct, sustained jets from washing equipment can still stress the seals.
- IR range and throw distance are not specified in the available data. Request specific IR performance from the manufacturer before committing to perimeter applications beyond 30–40 feet.
- H.265 adoption is still uneven across legacy VMS platforms. Verify your target system supports H.265 Profile S streaming before ordering; dual-codec fallback (H.264) is available but negates some storage savings.
The NDM-7702-A is built for semi-outdoor covered areas (loading docks, parking structure entries, retail perimeter zones) where sealed construction and impact resistance reduce total cost of ownership — environmental durability pays for itself in fewer service calls and replacements. Skip this model if you need PTZ functionality, sub-zero operation, or facial recognition from 100+ feet away; higher-spec alternatives exist in the Bosch lineup for those scenarios.
Key Specifications:
Color: White
