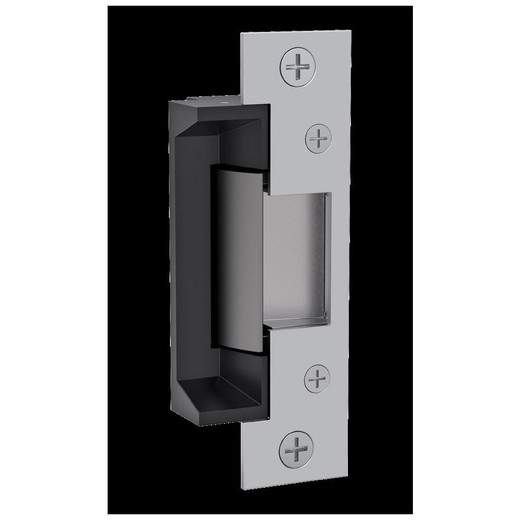

HES 5000-12/24D-630 Dual-Voltage Electric Strike
The HES 5000-12/24D-630 is a fail-secure electric strike engineered for commercial and institutional access control deployments where power loss must maintain locked status. Operating on selectable 12V or 24V DC power, this strike integrates into proximity reader systems, access control panels, and networked entry platforms without requiring SKU proliferation across voltage variants. The standard door frame form factor simplifies installation and retrofit into existing physical security infrastructure.
Key Features
- Dual-voltage operation (12V/24V DC selectable): Choose your voltage at commissioning without inventory duplication — a meaningful simplification on multi-site deployments where power infrastructure varies by location.
- Fail-secure design: Upon power loss or control signal failure, the strike defaults to locked status. This is critical for high-security areas where an open door during a power event or system fault creates unacceptable risk. Do not choose this if your application requires fail-safe behavior (door unlocks on power loss).
- Standard door frame form factor: Mounts into conventional door frame cavities without custom fabrication. Reduces installation labor and enables straightforward replacement of legacy strikes.
- Access control panel integration: Receives activation signals from existing access control hardware — proximity readers, keypads, networked controllers — using standard relay or solenoid trigger logic. Works with both standalone and networked architectures.
- Electromagnetic holding force: Consistent strike performance across voltage range ensures predictable door-locking behavior under load and under fault conditions.
- Indoor-rated enclosure: Suitable for controlled-environment deployments (office, server room, data center, secure storage). Not rated for weather exposure — use a weather-rated variant or housing if outdoor mounting is required.
Integration & Compatibility
The 5000-12/24D-630 functions as a relay-controlled door lock within a layered access control system. It does not independently read credentials or log events — those functions belong to the access control panel or networked reader. The strike connects to a door control module that manages power sequencing and timing logic. Proper voltage supply (12V or 24V DC as configured) and correct door frame preparation are essential. Consult the manufacturer datasheet for wiring diagrams, strike body dimensions, and door frame cutout specifications before installation. Integration with access control systems requires coordination with panel programming to ensure door release timing and audit logging.
Typical Deployments
- Commercial office buildings with proximity-card entry into secure floors or areas
- Educational institutions controlling access to labs, server rooms, or administrative offices
- Government and military facilities requiring fail-secure credential-based entry
- Healthcare facilities with restricted access to medication storage, server closets, or patient record areas
- Data centers and colocation facilities locking server cages and equipment rooms
- Retail environments securing stock rooms and management offices
Frequently Asked Questions
Q: What happens to the 5000-12/24D-630 if power is lost?
A: Because this is a fail-secure strike, it locks immediately upon power loss. The door cannot be opened by physical force alone without defeating the strike mechanism. This is the correct behavior for high-security applications.
Q: Can I use the 5000-12/24D-630 with both 12V and 24V systems?
A: Yes — the strike is selectable for either voltage at installation. Once configured, you do not switch between voltages without reconfiguration. This eliminates the need to stock two different models across your facility deployments.
Q: Is the 5000-12/24D-630 suitable for outdoor doors?
A: No. This strike is indoor-rated only. Direct rain, freezing temperatures, or UV exposure will degrade performance and reliability. For exterior entry doors, specify a weatherproof or stainless-steel variant with appropriate environmental ratings (IP67 or equivalent).
Q: How does the 5000-12/24D-630 interface with my access control panel?
A: The strike receives a relay closure or solenoid activation signal from your access control panel or door control module. When a valid credential (proximity card, PIN, etc.) is presented, the panel signals the strike to unlock for a timed interval (typically 2–5 seconds). The strike then re-locks. Wiring and timing logic are configured in the panel's programming.
Q: What is the difference between fail-secure and fail-safe?
A: Fail-secure (this product) locks on power loss — security is preserved during outages. Fail-safe means the door unlocks on power loss — useful for emergency egress but inappropriate for secure areas. Choose fail-secure for storage, server rooms, and secure offices; choose fail-safe for emergency exits and life-safety applications.
Q: What door frame types are compatible with the 5000-12/24D-630?
A: The strike uses a standard door frame form factor suitable for conventional wood and metal frame installations. Review the manufacturer datasheet for exact cutout dimensions and frame material compatibility before ordering.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HES 5000-12/24D-630 is a straightforward, reliable fail-secure strike — no electronics onboard, no firmware updates, no IP connectivity required. You're buying pure electromagnetic locking with a simple relay interface. That simplicity is its strength in critical access points where complexity creates failure modes.
Technical Highlights:
- Dual-voltage selectable operation (12V or 24V DC): Eliminates the need to stock and commission two SKUs across multi-building deployments. Set it once at installation; no field reconfiguration needed afterward. Real logistics win on campuses with mixed power infrastructure.
- Fail-secure default state: On any power loss or control signal failure, the strike locks. This is non-negotiable for server rooms, secure storage, and high-value asset areas. If a circuit breaker trips or a cable gets cut, your door stays locked. Do not install this on an emergency egress route without redundant mechanical unlock capability.
- Standard door frame form factor: Retrofits into existing frame cavities without cutting or fabrication. Installation cost is lower than custom strikes, and replacement is straightforward if the strike ever needs service.
Deployment Considerations:
- This strike has no independent logic or intelligence — it depends entirely on the access control panel or door controller for timing, audit logging, and credential verification. Ensure your panel supports relay-drive strikes and that door release timing is programmed correctly (typically 2–5 seconds).
- Indoor-rated only: the enclosure is not sealed against weather, condensation, or temperature extremes. If your door is under an overhang where rain splash occurs, or if your facility operates in extreme cold, specify a weather-rated variant or add a protective housing. This is a common gotcha on semi-outdoor installations (covered entries, loading docks).
- Voltage selection is final at commissioning — do not assume you can swap 12V and 24V field hardware once the strike is installed. Verify your power supply voltage before ordering.
Deploy the 5000-12/24D-630 in secure facilities where you need reliable, maintainable fail-secure locking without firmware or network dependencies — corporate data centers, healthcare secure storage, government administrative buildings, and university server rooms. For high-throughput retail or hospitality applications requiring frequent unlock cycles and remote monitoring, consider a networked strike with integrated audit trails.
