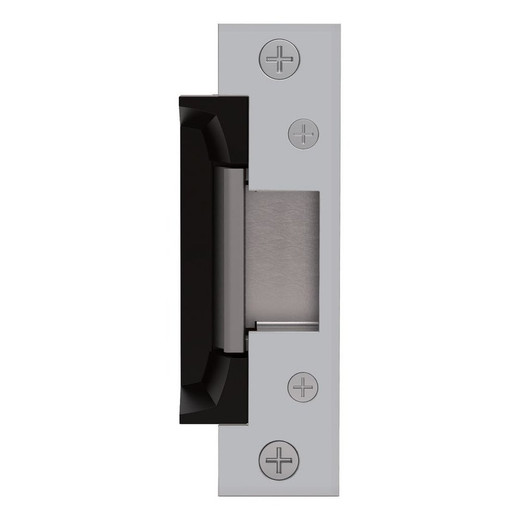

HES 5200-630 Universal Electric Strike
Overview
The HES 5200-630 is a universal electric strike engineered to retrofit into standard mortise lock preparations without requiring frame modification. It functions as a fail-safe or fail-secure electromagnetic release mechanism, integrating directly into conventional access control wiring infrastructure — meaning you deploy it alongside existing security panels and credential readers without additional power or signal conditioning. This flexibility makes it suitable for phased security upgrades across facilities with mixed door hardware or legacy installations.
Key Features
- Universal Mortise Compatibility: Works with standard mortise lock preparations across most commercial door frames. This eliminates custom fabrication and reduces installation labor compared to frame-specific strikes — a significant cost factor in multi-door deployments.
- Fail-Safe and Fail-Secure Modes: Configurable operation ensures you can match the strike behavior to your security posture. Fail-safe unlocks on power loss (life-safety compliant for egress doors); fail-secure locks on power loss (audit trails, secure perimeter control). Choose the mode your facility code and risk profile demand.
- Single and Double Door Support: The 5200-630 accommodates both single-swing and double-door frame geometry, reducing SKU complexity if you're standardizing on one strike model across a campus or building.
- Conventional Access Control Integration: Operates on standard 12VDC or 24VDC signaling from access control panels and readers. No proprietary wiring harnesses, no embedded IP networking required — integration expertise already exists within your security team.
- Retrofit and New Installation Ready: Installs into existing frame preparations during new construction or retrofit projects. No requirement to replace frames or doors, which reduces project scope and cost.
- Electromagnetic Locking and Release: Solenoid-driven mechanism delivers repeatable, auditable lock/unlock cycles without mechanical wear points like springs or latches. Simplifies troubleshooting and extends service intervals.
Integration and Compatibility
The 5200-630 integrates with any access control panel that outputs relay or 12/24VDC signals — Honeywell, Salto, Allegion, and other mainstream platforms all support electric strike wiring schemes. If your facility standardizes on a particular access control system, confirm your panel's strike output specification (voltage, current draw, pulse or continuous hold capability) matches the 5200-630 datasheet before final selection. For multi-door installations, coordinate power distribution to ensure your control panel's output capacity covers all strikes without voltage sag — a commonly overlooked detail during planning.
The strike operates independently of network cameras, NVRs, or IP intercoms, so it does not require IT infrastructure planning. This decoupling is an advantage in legacy environments where physical access control predates network video, but it also means you'll manage door events separately from video audit trails unless you add a dedicated access control management platform.
Typical Deployment Scenarios
Commercial offices and multi-tenant buildings benefit from centralized access control and the ability to remotely unlock doors for authorized personnel. Hospitals and educational institutions rely on the fail-safe mode to ensure egress during emergencies while maintaining audit trails for restricted areas. Facilities undergoing phased security upgrades can deploy the 5200-630 across mixed door types without waiting for frame standardization, accelerating project timelines.
When to Choose a Different Model
If your door frame is non-standard or uses a rim-mounted strike (surface-mounted rather than mortise), the 5200-630 will require frame modification or may not fit at all — consult the manufacturer or a certified installer to confirm compatibility before specifying. If you need integrated IP-based access control with network video fusion, consider platforms that bundle strikes, readers, and video management into a single system — this simplifies software licensing and audit reporting.
Frequently Asked Questions
Q: Is the HES 5200-630 compatible with my existing Honeywell access control panel?
A: The 5200-630 works with any panel that outputs 12VDC or 24VDC relay signals to a strike. Verify your panel's output voltage and current rating against the 5200-630 datasheet. Most enterprise panels support this; consult your panel documentation or a systems integrator to confirm wiring compatibility.
Q: Can I use the 5200-630 in fail-safe mode for a fire egress door?
A: Yes. Fail-safe mode unlocks the strike on power loss, allowing occupants to exit. Confirm your local fire code and building authority requirements; some jurisdictions have specific mandates for egress strike selection. Have your design reviewed by a code consultant before deployment.
Q: What is the power draw of the HES 5200-630?
A: Power specifications are detailed in the manufacturer datasheet. Verify wattage against your panel's output capacity to ensure sufficient headroom for all strikes in your configuration — undersizing power supply is a common installation error.
Q: Does the 5200-630 work with double doors?
A: Yes, the strike accommodates both single and double door frame geometry. For double doors, confirm which door (active, inactive) receives the strike and coordinate latch and frame preparation accordingly with your door supplier or installer.
Q: Can I retrofit the 5200-630 into an existing mortise lock frame without removing the door?
A: Typically, yes — the universal mortise design minimizes frame work. Your installer will confirm the existing frame mortise dimensions match the 5200-630 specifications. Some installations may require frame shimming or minor mortise adjustments.
Q: What warranty does HES provide on the 5200-630?
A: Consult the manufacturer warranty documentation or your specialty distributor for warranty terms, coverage scope, and claim procedures.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HES 5200-630 is a workhorse strike for anyone retrofitting access control into existing commercial or institutional space where frame standardization isn't feasible. Its universal mortise compatibility — the key spec here — means you can deploy one strike model across doors with minor or no frame modification, rather than sourcing and stocking multiple frame-specific variants. That's a logistics win on any multi-building project.
Technical Highlights:
- Fail-Safe and Fail-Secure Modes: Switchable operation lets you match the 5200-630 to your egress code requirements (fail-safe for life-safety doors) and security posture (fail-secure for secure perimeters). Reducing the number of strikes you need to specify and inventory because one unit handles both use cases.
- Universal Mortise Preparation: Works within standard 5200-series mortise lock geometry across most commercial frames. No custom strike fabrication, no frame rails or mounting plates unique to a single door type — a real cost saver on 20+ door deployments.
- Standard 12VDC/24VDC Integration: Operates on relay or steady voltage from conventional access control panels. No IP networking, no proprietary gateway, no dependency on your IT team — your access control technician handles the entire installation and wiring.
Deployment Considerations:
- Before specifying, verify your access control panel's strike output voltage and current capacity against the 5200-630 datasheet. Running too many strikes on undersized power is a frequent commissioning headache.
- If your door frame is non-standard (commercial aluminum frames with rim-mounted strikes, for example), the 5200-630 will require frame modification or may not fit — have your installer confirm mortise dimensions and frame construction before purchase.
- The strike operates independently of your video or intercoms, which is ideal in legacy environments but means door events and video are logged separately unless you add a dedicated access control management layer.
Deploy the 5200-630 in multi-building campuses undergoing phased access control upgrades, hospitals needing fail-safe egress control, and office complexes with mixed door hardware. Its versatility and straightforward 12/24VDC integration make it a reliable anchor for any conventional access control refresh.
