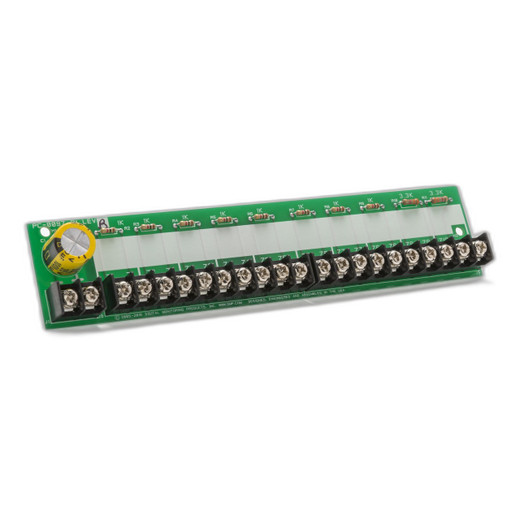

DMP 721T Terminal Block Module

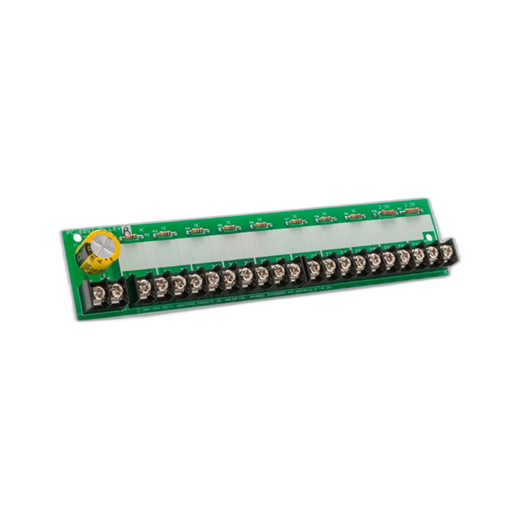

DMP 721T Terminal Block Module

Overview

The DMP 721T is a terminal block module designed for integration within distributed access control and security systems. This module provides reliable connection points for field wiring and signal distribution in professional security installations. The 721T facilitates seamless integration between control panels, readers, and field devices, serving as a critical infrastructure component for mid-to-large scale deployments.

Key Features

• Terminal block connectivity for secure field wiring termination
• Modular design for flexible system configuration
• Compatible with distributed access control architectures
• Supports multi-reader and multi-door installations
• Designed for indoor mounting in control cabinets and panels
• Enables organized wire management in complex security deployments

Integration & Compatibility

The DMP 721T terminal block module integrates into access control ecosystems requiring centralized wiring management and signal consolidation. Security integrators commonly deploy this module in installations where multiple readers, door strikes, request-to-exit (REX) devices, and supplementary sensors require organized termination and distribution. The module's modular architecture allows scaling across single and multi-door systems, supporting both credential readers and electromechanical lock control circuits. Field integration with standard 18–14 AWG copper conductors ensures compatibility with industry-standard security cabling practices. The 721T operates within standard access control voltage and signaling parameters, accommodating both access control protocol requirements and auxiliary device signaling without requiring external isolation or conditioning equipment.

Deployment Considerations

Installation of the DMP 721T typically occurs during system commissioning, mounted within secure control enclosures or panel racks. Proper labeling and organization of terminal connections is critical to support future maintenance and system modifications. The module's stationary design ensures stable connectivity throughout the operational lifetime of the security installation, reducing the potential for loose connections or signal degradation common in unorganized field-wiring environments. Security technicians should verify proper wire gauge and insulation integrity before final termination, and all connections should be torqued to manufacturer specifications to ensure reliable operation across climate-controlled and non-climate-controlled installation sites.

Marty Allison

During recent access control system planning, I evaluated the DMP 721T as a wiring consolidation component for a multi-building enterprise deployment. The module's straightforward terminal block architecture proved invaluable for organizing field connections across 12 doors spanning three reader types and multiple strike configurations.

Technical Highlights:

• Wiring Organization: Eliminates point-to-point chaos by centralizing all field connections into a single, labeled module mounted within the primary control cabinet.
• Scalability: Terminal block design accommodates future reader and device additions without requiring panel redesign or external splicing.
• Signal Integrity: Secure screw-down termination prevents the intermittent faults and signal loss common in push-connector field implementations.

Deployment Considerations:

• Mount the 721T in a DIN-rail cabinet or secure enclosure to protect terminals from accidental contact and environmental contamination.
• Use consistent wire labeling conventions and maintain detailed wiring diagrams keyed to the module's terminal map for expedited troubleshooting and commissioning support.
• Verify all connections post-installation during system walkthrough; loose terminals are among the most common sources of intermittent reader and strike faults in the field.

The DMP 721T is a cost-effective, operationally transparent choice for integrators managing medium-to-large access control installations. Its reliability directly correlates with disciplined installation practices and proper documentation—both areas where this module excels in supporting professional-grade deployments.
