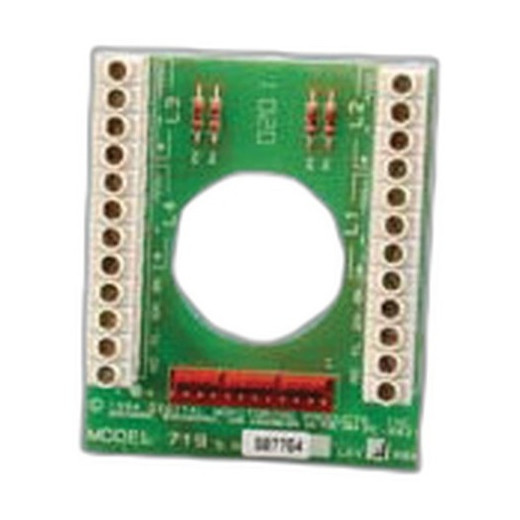

DMP 719T Terminal Board Expansion Module

DMP 719T Terminal Board Expansion Module

Overview

The DMP 719T is a terminal board expansion module that extends wiring capacity on DMP 714 Zone Expanders. It provides dual terminal strips for zone termination and pass-through LX-Bus wiring, eliminating the need for external terminal blocks or intermediate junction boxes. Use this module when your 714 Zone Expander's built-in terminals are at capacity or when you need to organize multiple zone connections in a single mounted location.

Compatibility

The 719T is designed for use with the DMP 714 Zone Expander Module. When ordering the 714 and 719T together as a kit, specify part number 714-19T. Install the 719T directly into the 714's modular slot — no additional adapters or jumpers required.

Installation Notes

The 719T accommodates 14 to 22-gauge wire and includes individual 1K end-of-line (EOL) resistors for proper zone circuit termination — critical for supervised zone circuits that require resistive supervision. The module arrives with a dual-ended 12-wire harness that connects the 719T to the host 714 expander. Mount in a secure enclosure to prevent accidental wire displacement, and verify all zone wiring continuity before commissioning the security system.

What's in the Box

• 1x 719T Terminal Board Module
• 1x Dual-ended 12-wire harness
