Vivotek FD9387-EHTV-V3 vs Vivotek MD8564-EH-V2: Specification Comparison
Both the Vivotek FD9387-EHTV-V3 and the MD8564-EH-V2 are 5MP outdoor vandal-resistant dome cameras from Vivotek, sharing PoE 802.3af power, IK10 impact resistance, H.265 compression, WDR Pro, and Day/Night IR. Where they diverge is application focus: the FD9387-EHTV-V3 is a fixed-infrastructure surveillance dome with a motorized varifocal lens, while the MD8564-EH-V2 is engineered for vehicle and fleet-mounted deployment with a fixed wide-angle lens, higher ingress protection, and an M12 ruggedized connector.
In This Guide
How do the imaging specs compare?

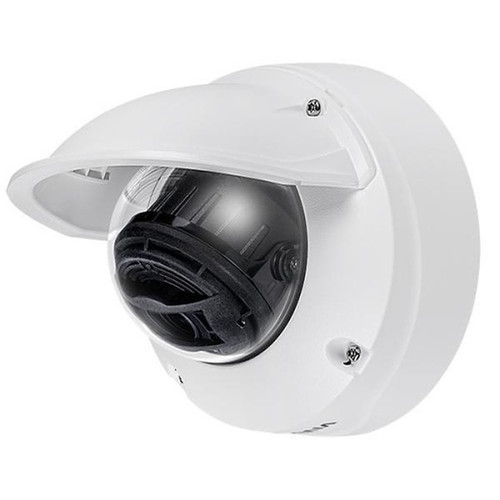

Both cameras deliver 5MP resolution. The FD9387-EHTV-V3 uses a motorized 7–22mm P-iris lens with 3.1× optical zoom, giving installers remote focal-length adjustment without physically repositioning the camera. Its IR illumination reaches 50 meters, minimum illumination is rated at 0 lux with IR active, and WDR PRO is specified. The MD8564-EH-V2 uses a fixed 3.6mm f/2.0 lens on a 1/2.7-inch sensor, with minimum illumination of 0.1 lux color / 0.01 lux B&W / 0 lux with IR on, and the same 50-meter effective IR range. The fixed lens trades the FD9387's zoom flexibility for a wider, consistent field of view suited to close-range vehicle identification.
Frame-rate data is only specified for the MD8564-EH-V2: 30 fps at 2560×1920 (5MP) and 60 fps at 1920×1080 (1080p). No maximum frame rate is provided in the FD9387-EHTV-V3 specs. The MD8564-EH-V2 also specifies 48× digital ePTZ and a tool-free ±170° rotation with pan ±0°–25° and tilt 0°–+40°, useful for precise aim on a vehicle mount. The FD9387-EHTV-V3 specs do not list digital ePTZ or a rotation range. Both support MJPEG and H.264 in addition to H.265.
What about installation and environment?
The FD9387-EHTV-V3 carries IP66/IP67 and NEMA 4X ratings, covering jet-water ingress and salt-spray environments, and an operating temperature range of -40°C to 60°C — one of the widest ranges available in this class. The MD8564-EH-V2 steps up to IP68 (continuous submersion), which is critical for vehicle underbody or wash-down exposure, but its operating temperature range is narrower at -20°C to 55°C. Both are rated IK10.
The FD9387-EHTV-V3 connects via a standard RJ45 interface and is ceiling-mount oriented. The MD8564-EH-V2 uses an M12 Female 4-pin D-coded connector — the ruggedized standard for mobile and vehicle installations — and supports ceiling/wall mounting. Both draw power via PoE 802.3af; the MD8564-EH-V2 specifies under 13W max draw, while that figure is not stated for the FD9387-EHTV-V3. The FD9387-EHTV-V3 dimensions are not listed in the provided specs; the MD8564-EH-V2 is 241 × 162 × 83 mm.
Which fits your VMS and analytics better?
The MD8564-EH-V2 explicitly lists ONVIF Profile G, S, and T support and specifies a cybersecurity feature set including secure boot, signed firmware, IEEE 802.1x, digest authentication, HTTPS, brute-force attack detection, and session timeout. ONVIF compliance and ONVIF Profile G/S/T are not stated in the FD9387-EHTV-V3 specs as provided. The MD8564-EH-V2 also lists a Multimedia SoC processor with 2GB memory and Deep Learning Processing Unit (DLPU) analytics alongside VMD. The FD9387-EHTV-V3 specifies Object Analytics and Smart Stream III but does not list DLPU or a dedicated processor specification.
Both cameras support microSD on-board storage. The FD9387-EHTV-V3 specifies two-way audio; audio capability is not listed in the MD8564-EH-V2 specs. The FD9387-EHTV-V3's Smart Stream III is designed to reduce bandwidth and storage consumption on always-on deployments. Integrators requiring documented ONVIF Profile G for VMS edge-recording compliance will find that spec confirmed only on the MD8564-EH-V2 from the data provided.
Which should you choose: the FD9387-EHTV-V3 or the MD8564-EH-V2?
Our take: The FD9387-EHTV-V3 is the stronger choice when the deployment is a fixed outdoor infrastructure site requiring wide temperature tolerance, remote lens adjustment, and two-way audio. Its motorized 7–22mm P-iris lens spans a 3.1× optical zoom range — unavailable on the fixed 3.6mm MD8564-EH-V2 — its NEMA 4X and -40°C floor extend to harsher ambient conditions than the MD8564-EH-V2's -20°C limit, and its two-way audio is a specified feature absent from the MD8564-EH-V2's spec sheet. The MD8564-EH-V2 is the correct selection for vehicle or fleet-mounted applications: its IP68 rating exceeds the FD9387's IP67 for submersion scenarios, its M12 connector is the mobile industry standard, and its DLPU with documented ONVIF Profile G/S/T provides confirmed VMS edge-recording compatibility. Choose the FD9387-EHTV-V3 for fixed perimeter or facility use; choose the MD8564-EH-V2 for mobile, transit, or wash-down environments.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Vivotek FD9387-EHTV-V3 | Vivotek MD8564-EH-V2 |
|---|---|---|
| Resolution | 5MP | 5MP |
| Image Sensor | Not specified | 1/2.7" |
| Lens / Focal Length | Motorized 7–22mm P-iris (3.1× optical zoom) | Fixed 3.6mm f/2.0 |
| Min Illumination | 0 lux (IR on) | 0.1 lux color / 0.01 lux B&W / 0 lux with IR |
| IR Range | 50m | 50m effective range |
| WDR | WDR PRO | WDR Pro |
| Max Frame Rate | Not specified | 30 fps @ 2560×1920; 60 fps @ 1920×1080 |
| Video Compression | H.265; H.264; MJPEG | H.265; H.264; MJPEG |
| IP Rating | IP66 / IP67 / NEMA 4X | IP68 |
| IK / Impact Rating | IK10 | IK10 |
| Operating Temperature | -40°C to 60°C | -20°C to 55°C |
| Power Input / PoE | PoE 802.3af | PoE 802.3af (under 13W max) |
| Network Connector | RJ45 (standard) | M12 Female 4-pin D-coded |
| Edge Storage | microSD card | microSD / SDHC / SDXC |
| Audio | Two-way audio | Not specified |
| ONVIF | Not specified | Profile G, S, T |
| Edge Analytics | Object Analytics; Smart Stream III | Deep Learning (DLPU); VMD |
| Cybersecurity | Not specified | Secure boot; signed firmware; IEEE 802.1x; HTTPS; digest auth; brute-force detection; session timeout |
| Dimensions | Not specified | 241 × 162 × 83 mm |
| Primary Application | Fixed outdoor infrastructure | Vehicle & fleet surveillance |
Frequently Asked Questions
Which should you choose: the FD9387-EHTV-V3 or the MD8564-EH-V2?
The FD9387-EHTV-V3 is the stronger choice when the deployment is a fixed outdoor infrastructure site requiring wide temperature tolerance, remote lens adjustment, and two-way audio. Its motorized 7–22mm P-iris lens spans a 3.1× optical zoom range — unavailable on the fixed 3.6mm MD8564-EH-V2 — its NEMA 4X and -40°C floor extend to harsher ambient conditions than the MD8564-EH-V2's -20°C limit, and its two-way audio is a specified feature absent from the MD8564-EH-V2's spec sheet. The MD8564-EH-V2 is the correct selection for vehicle or fleet-mounted applications: its IP68 rating exceeds the FD9387's IP67 for submersion scenarios, its M12 connector is the mobile industry standard, and its DLPU with documented ONVIF Profile G/S/T provides confirmed VMS edge-recording compatibility. Choose the FD9387-EHTV-V3 for fixed perimeter or facility use; choose the MD8564-EH-V2 for mobile, transit, or wash-down environments.
Is the FD9387-EHTV-V3 or MD8564-EH-V2 better for low-light performance?
Both reach 0 lux minimum illumination with IR active, and both specify a 50-meter effective IR range. The MD8564-EH-V2 additionally states 0.1 lux color and 0.01 lux B&W figures at f/2.0. The FD9387-EHTV-V3 does not list color/B&W lux thresholds in the provided specs, so a direct color-mode low-light comparison cannot be made from available data. IR capability is equivalent on paper.
Can the MD8564-EH-V2 handle being mounted on a vehicle in a car wash or rain environment better than the FD9387-EHTV-V3?
Yes, based on the provided specs. The MD8564-EH-V2 is rated IP68, meaning it is tested for continuous submersion — relevant for wash-down, heavy rain, and underbody vehicle mounting. The FD9387-EHTV-V3 is rated IP66/IP67, which covers water jets and temporary immersion but is not the same as IP68. The MD8564-EH-V2's M12 ruggedized connector also better suits mobile vibration environments versus a standard RJ45.
Which camera is easier to aim and adjust after installation?
The FD9387-EHTV-V3 offers a motorized 7–22mm P-iris lens adjustable remotely via the VMS or browser interface, eliminating the need to physically reposition the camera after mounting. The MD8564-EH-V2 has a fixed 3.6mm lens but provides 48× digital ePTZ and tool-free ±170° rotation with pan and tilt adjustments for initial physical aiming. Optical zoom flexibility post-installation belongs to the FD9387-EHTV-V3.
