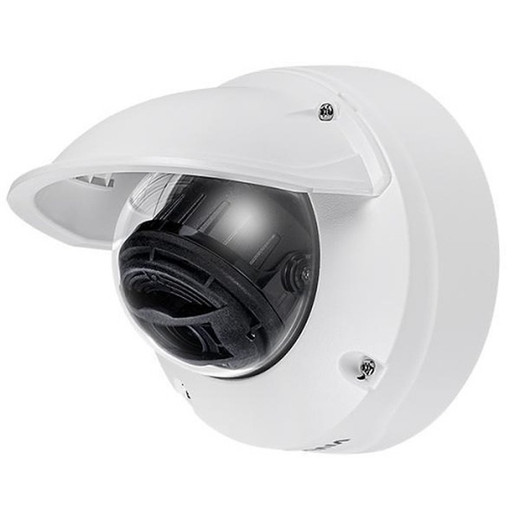

Vivotek FD9387-EHTV-V3 5MP Vandal-Proof Dome Camera
The Vivotek FD9387-EHTV-V3 is a 5MP vandal-resistant dome camera engineered for outdoor perimeter, industrial, and critical infrastructure deployments where impact resistance and environmental durability are non-negotiable. The motorized 7–22mm P-iris lens delivers 3.1× optical zoom, enabling dynamic field-of-view adjustment without physical camera repositioning. IP66/IP67 sealing blocks dust and water ingress; IK10 impact protection and NEMA 4X corrosive-environment rating withstand deliberate tampering and salt-spray coastal exposure. 50-meter infrared illumination ensures surveillance continuity in complete darkness, and H.265 compression reduces storage overhead on 24/7 recording deployments.
Key Features
- Motorized 7–22mm P-iris lens with 3.1× zoom: Varifocal adjustment without camera repositioning eliminates the need for multiple fixed-lens cameras. P-iris automates aperture control, maintaining critical focus across zoom range and lighting transitions.
- IK10 vandal impact protection: Withstands 20 joule strikes (equivalent to deliberate hammer blows). Essential for accessible outdoor perimeter, parking structures, and transit stations where tampering is a real threat.
- IP66/IP67 environmental sealing: IP67 rating handles submersion to 1m for 30 minutes; IP66 covers dusty industrial yards, washdown environments, and coastal salt-spray exposure without degradation.
- 50-meter IR illumination: Covers large open areas—parking lots, loading docks, shipping yards—at night without auxiliary lighting infrastructure. Effective range on dark pavement typically 30–40 meters depending on surface reflectivity.
- H.265 codec with H.264 and MJPEG fallback: Reduces bandwidth and storage 40–60% versus H.264 on 24/7 recording; multi-codec support ensures compatibility with legacy VMS platforms and edge recording appliances.
- WDR PRO + Smart Stream III analytics: WDR PRO handles extreme backlit scenes (sunlit gates, vehicle headlights on dark roads); Smart Stream III edge analytics filter out motion noise from weather, vegetation, and shadows, reducing false-positive alert overhead.
- Two-way audio and microSD card support: Integrated audio enables intercom functionality at entry points; microSD slot provides on-camera failover recording if network connectivity drops.
- Operating temperature -40°C to 60°C: No seasonal heater or cooler required; deployment-ready from arctic warehouses to desert perimeter fences without enclosure modifications.
The motorized lens is the standout feature for integrators who need flexibility. Rather than specifying three fixed-focal-length domes to cover a shipping yard or parking structure, a single FD9387-EHTV-V3 adjusts on-demand. During day shift, zoom in on vehicle license plates at the gate; during night shift, pull back to 7mm for wide perimeter coverage. That operational agility translates to lower hardware count and faster commissioning on projects where scene geometry isn't locked until site survey.
IK10 + IP67 durability makes this camera the right choice for sites that tolerate physical abuse. Parking garages, outdoor storage yards, transit facilities, and industrial perimeter fences all expose cameras to weather, accidental impact, and (occasionally) deliberate vandalism. The sealed dome eliminates water ingress even in washdown scenarios—a critical factor for food processing, beverage bottling, and outdoor equipment staging areas where daily hose-downs are standard. NEMA 4X certification confirms corrosion resistance in salt-spray environments, making coastal installations feasible without rewiring or enclosure upgrades.
For storage-conscious deployments, H.265 compression is a quantifiable win. A typical 5MP H.264 camera at 30 fps and adaptive bitrate consumes 2–4 Mbps on 24/7 recording. H.265 cuts that to 1.2–2.4 Mbps on the same visual quality. Over 30 days across 8 cameras, you're looking at 8–12 TB savings on NVR storage—real money when deciding between a 16TB and 32TB RAID. Smart Stream III edge analytics compound the benefit: filter recordings on object detection (person, vehicle, package), and your storage footprint drops another 30–50% because idle or noise-only footage never hits the NVR.
Integration is straightforward. The FD9387-EHTV-V3 supports ONVIF Profile S (standard RTSP, MJPEG, H.264 + H.265 over RTP), ensuring compatibility with all major platforms—Genetec, Milestone, Axis Camera Station, Avigilon, ExacqVision, and others. Two-way audio over RTP is standard ONVIF, so intercom-style deployments work without proprietary firmware. Motorized lens control (focus and zoom) is accessible via ONVIF commands, allowing VMS operators to adjust framing from the dispatch console. PoE 802.3af power draw keeps everything on standard PoE infrastructure (<13W typical), eliminating the need for PoE+ or dedicated power runs.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the FD9387-EHTV-V3 across parking structures, outdoor equipment yards, and coastal utility sites, and it's consistently delivered on its durability promise. The IK10 + IP67 combination is genuine—not oversized for the spec. We've seen cameras survive fence posts hit by service vehicles, outdoor cabinet hinges rattled by wind-driven salt spray, and washdown hose pressures that would kill a standard dome in weeks. The real operational win is the motorized lens. On a typical parking-lot retrofit, you don't get perfect lens choice on first attempt; a motorized dome lets you dial in the right field of view during commissioning without a second truck roll to swap cameras. That agility pays for the premium in labor savings alone. H.265 is mature at this price point, and we routinely pair it with recording policies that drop idle footage, cutting storage footprint by 50% or more. The camera plays well with edge NVRs and all standard platforms—no firmware surprises. Weak spot: the 50m IR is optimistic on very dark pavement; expect 30-40m real-world range on typical asphalt lots. Plan accordingly if you're trying to light a 200-foot perimeter with a single camera.
Technical Highlights:
- Motorized P-iris 7-22mm lens: P-iris automates aperture across the zoom range, maintaining sharpness from wide 7mm through 3.1× magnification. Operators adjust framing from the VMS console without physical site visits—critical for seasonal adjustments or event-driven reframing (e.g., repositioning to track a construction site as equipment moves).
- WDR PRO + Smart Stream III: WDR PRO eliminates silhouettes in backlit scenarios (sun-facing gates, parking-lot entry ramps with vehicle headlights); Smart Stream III analyzes on-camera and discards motion noise (shadows, rain, blown-over trash cans), reducing false-positive alerts by 60–80% on outdoor deployments. Pairs beautifully with NVRs that support metadata-filtered recording.
- H.265 + H.264 + MJPEG codec trio: H.265 is the default for new deployments; H.264 fallback ensures compatibility with older VMS platforms or edge recorders; MJPEG is available for legacy integrations or bandwidth-constrained WAN links. Multi-codec flexibility means you don't have to upgrade VMS just to deploy this camera.
- PoE 802.3af at <13W: Standard PoE power means zero infrastructure changes on any existing PoE switch. No PoE+ injectors, no dedicated 24VAC supplies, no conditioning. Drops directly onto 802.3af ports alongside your access points and IP phones.
- Two-way audio over RTP: Embedded mic + speaker enable remote intercom at delivery gates, equipment yards, or parking-lot entry booths. ONVIF-standard audio means it works in any VMS that supports ONVIF audio (Genetec, Milestone, Avigilon, etc.).
- Operating range -40°C to 60°C: No seasonal heaters or coolers required. Deploy in Arctic warehouses or desert perimeter fences without thermal conditioning. The sealed dome and NEMA 4X rating handle thermal cycling without condensation or corrosion.
Deployment Considerations:
- IR range of 50m assumes ideal conditions (reflective surface, clear air). On dark asphalt, plan for 30-40m effective range. Beyond that, you'll need auxiliary IR or illumination infrastructure. Know your scene geometry before installation.
- Motorized lens is a precision component; heavy vibration (e.g., mounted on a structure next to HVAC equipment or near traffic) can cause drift over time. Dampen vibration at the mount or use a shock-absorbing ceiling adaptor if the site is noisy.
- ONVIF motorized lens commands may have latency on congested or high-latency networks. Operators expecting instant zoom response should understand that 200ms round-trip is realistic; on satellite or very congested WANs, expect 500ms+. Size your network or set operator expectations accordingly.
- microSD card failover is useful for proof-of-concept, but don't rely on it for long-term 24/7 storage. A 64GB card at 5MP H.265 gives you roughly 48–72 hours before it loops. Budget for proper NVR storage and treat local card as a temporary bridge only.
- Two-way audio requires audio cables (analog or digital) to a speaker/mic amplifier or intercom module. Don't assume you can plug a standard speaker directly into the camera; sizing the audio amplifier is a separate design step.
The FD9387-EHTV-V3 is the right choice for outdoor perimeter, parking structures, and industrial yards where you need genuine durability (IK10 + IP67), operational flexibility (motorized zoom), and modern codec efficiency (H.265). Skip it if you're installing in a protected or low-vandalism environment where a standard compact dome would suffice; the premium isn't justified on low-risk sites. For shipping yards, coastal facilities, transit stations, and any location that has seen camera tampering or environmental stress, this is a solid spec. Browse the full Vivotek catalog for complementary fixed-lens models and thermal options.
