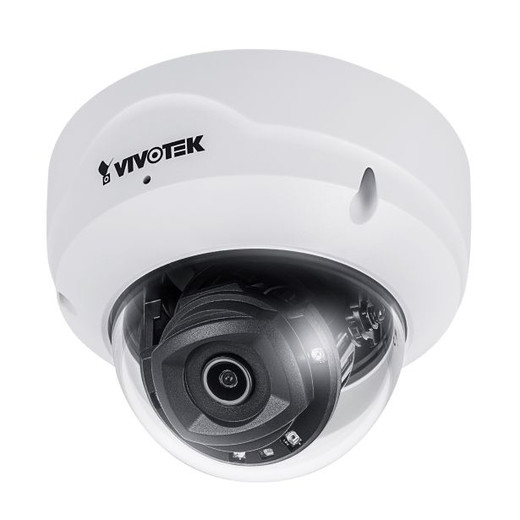

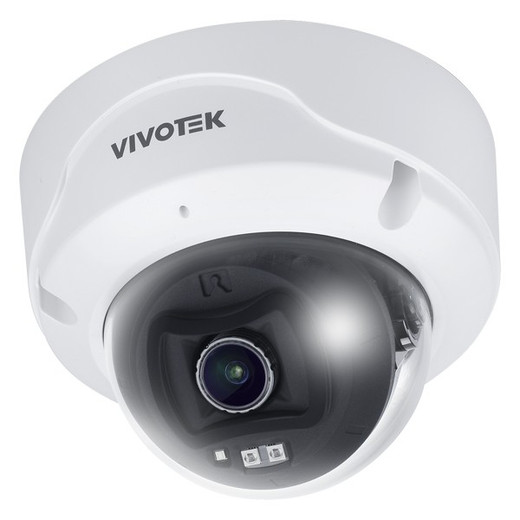

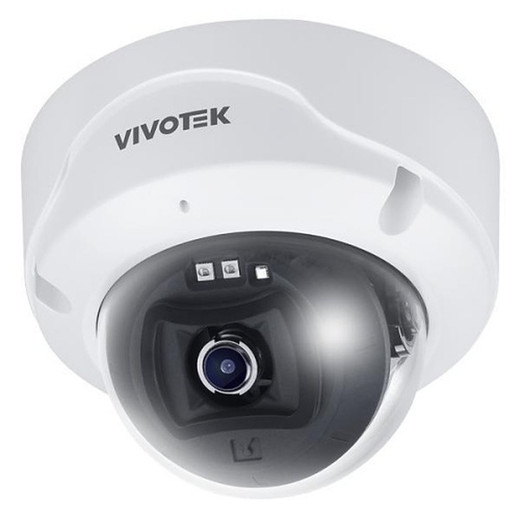

Vivotek FD9189-H-V3 5MP Vandal-Proof Dome Camera
The Vivotek FD9189-H-V3 is a robust 5MP indoor dome camera purpose-built for high-security installations requiring proven durability and superior image quality in challenging environments. Delivering 2560x1920 resolution at 30 fps with advanced H.265 compression, this vandal-proof camera combines bandwidth efficiency with exceptional clarity—essential for organizations managing large-scale surveillance deployments across multiple locations.
Key Features
- 5MP resolution (2560x1920) at 30 fps with H.265 video compression for optimized bandwidth utilization
- 120dB WDR Pro technology handles extreme contrast and dynamic lighting transitions
- 30m Smart IR with advanced infrared capability for reliable low-light and night vision performance
- Vandal-proof dome construction rated for extreme temperature operation
- 3D Noise Reduction (3DNR) for cleaner footage in low-light conditions
- Video Rotation feature supports flexible mounting and deployment configurations
- Built-in microphone for integrated audio monitoring capabilities
- Smart Stream III technology automatically optimizes performance across varying network conditions
- System integration via AO-014 interface
Technical Highlights
The FD9189-H-V3's H.265 codec delivers significant compression advantages over standard H.264, reducing storage requirements and network bandwidth by up to 50% while maintaining image fidelity. The 120dB WDR Pro engine excels in environments with mixed lighting—such as lobbies with bright windows and interior spaces—ensuring visible detail across the entire frame regardless of lighting variation.
The 30-meter Smart IR system provides continuous surveillance capability in complete darkness without requiring supplemental lighting infrastructure. Combined with 3DNR processing, the camera produces usable footage even when ambient light is minimal, making it suitable for 24/7 monitoring in warehouses, corridors, and perimeter areas.
Smart Stream III dynamically adjusts compression and frame rate in response to network congestion, preventing dropped frames and maintaining surveillance continuity during bandwidth-limited scenarios. This intelligent adaptation is particularly valuable in multi-camera deployments where consistent network performance cannot be guaranteed.
Ideal Applications
- Retail environments with high-value asset protection needs
- Corporate facilities requiring discreet, vandal-resistant monitoring
- Educational institutions with campus-wide surveillance requirements
- Healthcare facilities requiring HIPAA-compliant surveillance infrastructure
- Transportation hubs and secure access points
- Warehouse and logistics facilities requiring round-the-clock monitoring
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The FD9189-H-V3 represents a mature, production-proven platform ideal for organizations seeking reliable indoor surveillance without the complexity of external weatherproofing requirements. The vandal-proof dome housing provides both physical protection and psychological deterrent value—a critical consideration in high-theft or high-vandalism environments.
The H.265 codec implementation is particularly valuable for organizations operating legacy infrastructure with bandwidth constraints. A 5MP H.265 stream consumes approximately 2–4 Mbps at 30 fps depending on scene complexity, compared to 6–10 Mbps for equivalent H.264 quality. Over a deployment of 20+ cameras, this differential translates to measurable infrastructure savings and reduced NVR storage requirements.
The 120dB WDR Pro specification is exceptionally strong for an indoor-rated camera, indicating superior performance in mixed-lighting scenarios where competing solutions might struggle. This makes the unit suitable for lobbies, retail floors, and access control points where lighting conditions cannot be standardized.
Requires AO-014 interface module for system integration—verify compatibility with your existing NVR platform before deployment.
