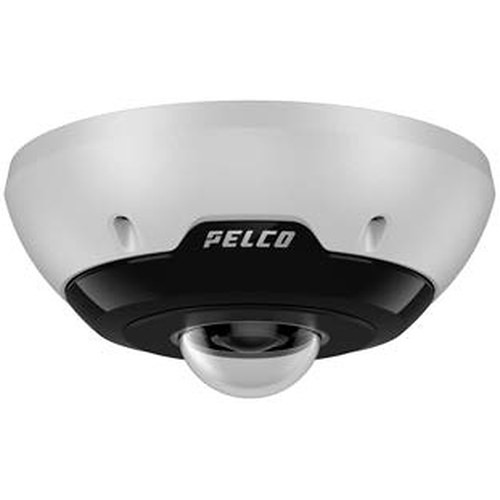

Pelco SRXF3-8180-ES vs Pelco SRXF3-8360-I: Specification Comparison
Both the Pelco SRXF3-8180-ES and SRXF3-8360-I belong to the Sarix Fisheye 3 series, sharing the same 8MP sensor, 2.7 mm f/2.5 lens, PoE+ power, and Pelco Smart Analytics platform. The comparison is relevant for buyers choosing between an outdoor-rated 180-degree panoramic deployment and an indoor-focused 360-degree full-panoramic deployment. Key decision factors are environmental protection rating, operating temperature floor, and intended field-of-view coverage pattern rather than imaging capability, which is essentially identical between the two models.
In This Guide
How do the imaging specs compare?
Both cameras deliver identical imaging performance: 8MP resolution at 3264x2448 pixels, a 2.7 mm f/2.5 lens with an F2.0 aperture, a minimum illumination of 0.10 lux with IR (850 nm) day/night switching, and WDR rated up to 83 dB. Frame rate is 12.5 fps at full resolution for both. No spec difference exists between the two models on any sensor, lens, or low-light parameter.
Video compression is identical as well — both support H.265 and H.264 per the specs provided. The SRXF3-8180-ES is specified as a 180-degree panoramic field of view in its primary deployment spec, while the SRXF3-8360-I is specified as 360-degree panoramic. Both models list '180 degrees; 360 degrees' in the shared field-of-view spec field, which likely reflects de-warp mode options available to the operator; the model suffix (-8180 vs -8360) and environment-rating field confirm the intended primary coverage pattern for each.
What about installation and environment?
The most significant differentiator between these two models is environmental protection. The SRXF3-8180-ES carries IP66 and IP67 ratings, making it suitable for outdoor installations exposed to dust ingress, water jets, and temporary immersion. Its operating temperature range extends from -40°C to +60°C, qualifying it for extreme cold environments. The SRXF3-8360-I is rated IP52, providing only limited dust protection and protection against vertically dripping water — an indoor-only rating — with an operating temperature floor of -10°C, appropriate for conditioned interior spaces only. Both carry IK10 impact resistance.
Power requirements are identical: both run on PoE+ (802.3at, Class 3), requiring a PoE+ switch or injector rather than a standard PoE port. Physical dimensions are listed identically at 153.5 mm x 153.5 mm x 71.3 mm, and weight with wall mount is listed at 1.001 kg for both. Mounting options listed for both include wall, ceiling, pole, pendant, and corner configurations. Storage temperature for both units is specified as -10°C to +70°C.
Which fits your VMS and analytics better?
Both cameras are ONVIF Profile S and Profile T compliant, ensuring broad compatibility with third-party VMS platforms supporting those profiles. Pelco Smart Analytics with 8 behavior detection is present on both models, providing identical on-board edge analytics capability. Both support microSD on-board storage and both list microphone support in the audio specification, though neither spec confirms a built-in speaker or two-way audio capability explicitly.
Memory and flash specs are identical (4 GB RAM, 4 GB Flash). HTTPS encryption is confirmed for both. No spec difference exists in compression codec support, ONVIF compliance level, analytics behavior count, or storage interface between the two models. Integrators running Pelco VMS or any ONVIF-compatible platform will find no integration distinction between the two.
Which should you choose: the SRXF3-8180-ES or the SRXF3-8360-I?
Our take: The SRXF3-8180-ES is the stronger choice when the deployment site is outdoors or in a harsh environment requiring rated weatherproofing. Its IP66/IP67 rating versus the SRXF3-8360-I's IP52 rating is the decisive differentiator: the -8180-ES tolerates sustained water jets and temporary immersion while the -8360-I is suitable only for indoor locations with limited moisture exposure. The operating temperature floor of -40°C on the SRXF3-8180-ES versus -10°C on the SRXF3-8360-I further separates them for cold-climate outdoor use. Beyond environmental hardening, every material spec — 8MP sensor, 0.10 lux minimum illumination, H.265/H.264 compression, IK10 impact rating, PoE+ Class 3 power, Pelco Smart Analytics with 8 behaviors, ONVIF Profile S/T, and microSD storage — is identical. Select the SRXF3-8360-I only when the installation is confirmed indoor and a 360-degree ceiling-mount panoramic view is the primary operational requirement.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Pelco SRXF3-8180-ES | Pelco SRXF3-8360-I |
|---|---|---|
| Series | Sarix Fisheye 3 | Sarix Fisheye 3 |
| Max Resolution | 3264 x 2448 (8MP) | 3264 x 2448 (8MP) |
| Primary Field of View | 180° panoramic | 360° panoramic |
| Lens / Focal Length | 2.7 mm f/2.5 | 2.7 mm f/2.5 |
| Aperture | F2.0 | F2.0 |
| Min Illumination | 0.10 lux (day/night) | 0.10 lux (day/night) |
| IR | IR 850 nm, day/night | IR 850 nm, day/night |
| WDR | Up to 83 dB | Up to 83 dB |
| Max Frame Rate | 12.5 fps (full resolution) | 12.5 fps (full resolution) |
| Video Compression | H.265; H.264 | H.265; H.264 |
| IP Rating | IP66 / IP67 | IP52 |
| Impact Rating | IK10 | IK10 |
| Operating Temperature | -40°C to +60°C | -10°C to +60°C |
| Environment Rating | Outdoor | Indoor |
| Power Input / PoE Class | PoE+ (802.3at) / Class 3 | PoE+ (802.3at) / Class 3 |
| Edge Storage | microSD | microSD |
| Audio | Microphone supported | Microphone supported |
| ONVIF Compliance | Profile S; Profile T | Profile S; Profile T |
| Analytics | Pelco Smart Analytics, 8 behaviors | Pelco Smart Analytics, 8 behaviors |
| Dimensions | 153.5 mm x 153.5 mm x 71.3 mm | 153.5 mm x 153.5 mm x 71.3 mm |
| Weight (with wall mount) | 1.001 kg (2.21 lb) | 1.001 kg (2.21 lb) |
| Warranty | 5-year | 5-year |
Frequently Asked Questions
Which should you choose: the SRXF3-8180-ES or the SRXF3-8360-I?
The SRXF3-8180-ES is the stronger choice when the deployment site is outdoors or in a harsh environment requiring rated weatherproofing. Its IP66/IP67 rating versus the SRXF3-8360-I's IP52 rating is the decisive differentiator: the -8180-ES tolerates sustained water jets and temporary immersion while the -8360-I is suitable only for indoor locations with limited moisture exposure. The operating temperature floor of -40°C on the SRXF3-8180-ES versus -10°C on the SRXF3-8360-I further separates them for cold-climate outdoor use. Beyond environmental hardening, every material spec — 8MP sensor, 0.10 lux minimum illumination, H.265/H.264 compression, IK10 impact rating, PoE+ Class 3 power, Pelco Smart Analytics with 8 behaviors, ONVIF Profile S/T, and microSD storage — is identical. Select the SRXF3-8360-I only when the installation is confirmed indoor and a 360-degree ceiling-mount panoramic view is the primary operational requirement.
Is the SRXF3-8180-ES or SRXF3-8360-I better for low light?
Both cameras are spec-identical for low light: each achieves a minimum illumination of 0.10 lux with IR (850 nm) day/night switching. Neither model has an advantage over the other on this parameter.
Can the SRXF3-8360-I be installed outdoors?
Based on the provided specs, the SRXF3-8360-I carries an IP52 rating and an Environment Rating of Indoor, making it unsuitable for outdoor installation where it would be exposed to rain, water jets, or dust ingress. The SRXF3-8180-ES, rated IP66/IP67, is the outdoor-rated model in this series.
Do both cameras work with the same VMS and ONVIF systems?
Yes. Both the SRXF3-8180-ES and SRXF3-8360-I are ONVIF Profile S and Profile T compliant and share identical Pelco Smart Analytics with 8 behavior detection. There is no integration or VMS compatibility distinction between the two models based on the provided specifications.
