Which UPS topology and output type better fits the load?

The most fundamental difference between these two units is their power topology. The Middle Atlantic FWD-CBS-1.5KVA-B27 is a Line Interactive UPS rated at 1,500 VA / 1,350 W with MOV surge protection. Its primary output is 48 VDC, with an AC output range of 110–127 VAC at 15 A via a NEMA 5-15R receptacle. This topology corrects minor voltage fluctuations without switching to battery but does transfer to battery on deeper disturbances; it does not deliver zero-transfer-time power conditioning.

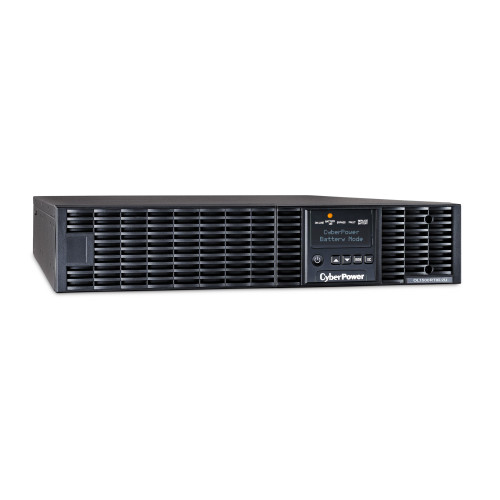

The CyberPower OL1500RTXL2U is a true online (double-conversion) UPS. All load power passes through the inverter continuously, eliminating transfer time entirely and providing pure sine wave output. Output voltage is configurable across 100/110/115/120/125 VAC ±2%, powered by three 12 V / 9 Ah sealed lead-acid batteries. For sensitive electronics — medical, broadcast, or precision computing — the double-conversion topology offers a materially higher level of power isolation. The Middle Atlantic unit's line-interactive topology is adequate for most AV and network infrastructure but does not match the CyberPower's isolation capability.

Buyers should note that the Middle Atlantic unit's 48 VDC output bus is architecturally designed to integrate with Middle Atlantic BGR-series rack power distribution, not to directly power standard AC equipment without the matching PDU. The CyberPower outputs standard AC directly to connected equipment via its native receptacles.

How do these units differ in physical footprint, weight, and rack integration?

The Middle Atlantic FWD-CBS-1.5KVA-B27 is a 2 RU device specified at 23 in wide × 27 in deep × 7.42 in tall, with a shipping weight of 145 lbs (65.8 kg). It is engineered as a structural component of a BGR-series rack system, with a rated weight capacity of 1,100 lbs (499 kg), mounting hardware included, and a 6 ft (1.8 m) input cord. Width is specified at 23 in — consistent with a full-rack panel rather than a discrete rackmount chassis.

The CyberPower OL1500RTXL2U is specified at 17 × 3.5 × 16.9 in (432 × 89 × 429 mm) in a rack/tower convertible form factor, with a unit weight of 39.6 lbs (17.96 kg) — approximately 27% of the Middle Atlantic's shipping weight. Its depth of 16.9 in makes it compatible with shallower rack enclosures, whereas the Middle Atlantic's 27 in depth requires a full-depth cabinet.

For installers building out Middle Atlantic BGR-series enclosures, the FWD-CBS-1.5KVA-B27 is purpose-matched to that ecosystem. For installers populating a standard 19 in open-frame or enclosed rack with mixed equipment, the CyberPower's lighter weight and shorter depth offer greater flexibility. No weight-capacity rating is stated for the CyberPower unit itself.

What certifications, remote management options, and warranty terms apply?

The CyberPower OL1500RTXL2U carries documented compliance certifications: UL 1778, FCC Part 15 Class B, CSA C22.2 No. 107.3, RoHS, and Energy Star. These certifications are relevant to IT procurement, government purchasing, and environments where third-party safety validation is required by policy or code. A 3-year limited warranty is specified.

The Middle Atlantic FWD-CBS-1.5KVA-B27 does not list equivalent certification marks in the provided specifications. Network management is available as an option via the UPX-RLNK-CARD accessory (not included); without it, the unit has no stated remote monitoring capability. Warranty terms are not stated in the provided specifications.

For deployments subject to UL or FCC compliance requirements, the CyberPower's certifications provide documented coverage. The Middle Atlantic unit's management path requires an additional accessory purchase, while the CyberPower's management capabilities beyond the LCD panel are not detailed in the provided specifications.

Which should you choose: the FWD-CBS-1.5KVA-B27 or the OL1500RTXL2U?

Our take: The CyberPower OL1500RTXL2U is the stronger choice when true online double-conversion power conditioning, certified compliance, and a self-contained rackmount form factor are required. Its online topology eliminates transfer time entirely and delivers pure sine wave output, versus the Middle Atlantic's line-interactive design. At 39.6 lbs and 16.9 in deep it fits shallower, mixed-equipment racks, compared to the Middle Atlantic's 145 lb shipping weight and 27 in depth. The CyberPower also carries UL 1778, FCC Part 15 Class B, CSA, RoHS, and Energy Star certifications — none of which are stated for the Middle Atlantic unit. The FWD-CBS-1.5KVA-B27 is the correct choice exclusively when integrating into a Middle Atlantic BGR-series enclosure ecosystem, where its 48 VDC output bus, 1,100 lb structural weight capacity, and purpose-built rack architecture are direct requirements — a context in which the CyberPower is not a substitute.

Side-by-Side Comparison

Spec-for-spec, from manufacturer data.
