Hanwha C9253R vs i-PRO U61300-ZYPR: Specification Comparison
Both the Hanwha XNP-C9253R and the i-PRO WV-U61300-ZYPR are 8MP PTZ cameras, placing them in the same resolution class and the same camera-type category. This comparison is written for installers and IT buyers evaluating an outdoor AI-tracking PTZ against an indoor 4K PTZ. The analysis is drawn strictly from the specifications supplied for each model; where a spec is absent for one product it is noted rather than inferred.
In This Guide
How do the imaging specs compare?

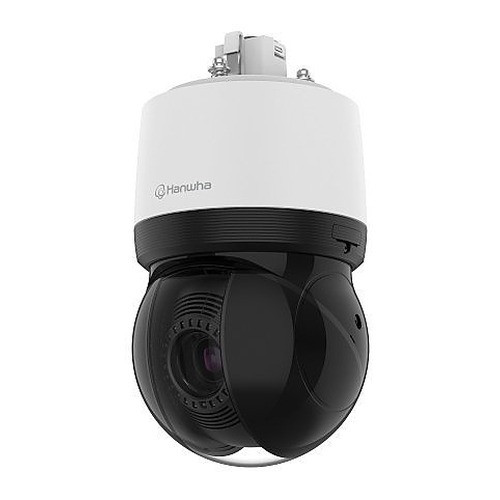

The XNP-C9253R is built around a 1/2.8-inch CMOS sensor delivering 3840×2160 (8MP) at up to 30fps at full resolution, with a 60fps capability noted in the feature list at an unspecified lower resolution. Its varifocal lens covers 5–125mm at a 25x optical zoom ratio (F1.6 wide, F3.73 tele), and the combined optical-digital zoom reaches 800x. Angular field of view spans 57.42° horizontal at wide end. Minimum illumination is rated at 0.1 Lux color and 0 Lux with IR active. Wise IR illumination extends to 200m, and Extreme WDR is specified at 120dB. DORI distances at the tele end reach 3,246.9m for detection and 324.7m for identification.

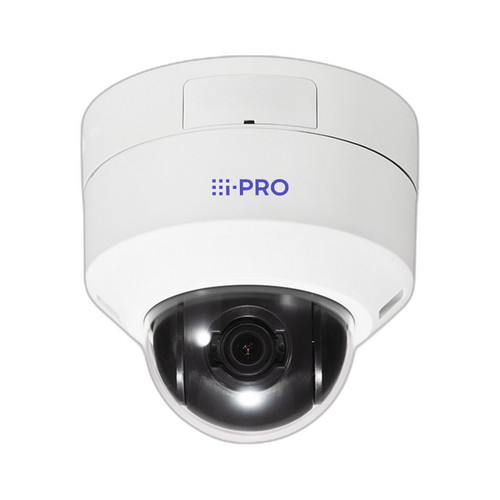

The WV-U61300-ZYPR is specified as an 8MP (4K) indoor PTZ. Beyond resolution class and PTZ form factor, the supplied specifications do not include sensor size, focal-length range, optical zoom ratio, minimum illumination, IR capability, WDR rating, or DORI distances. Buyers requiring those figures should consult the i-PRO datasheet directly before making a side-by-side imaging comparison.
What about installation and environment?
The XNP-C9253R carries IP66, IK10, and NEMA 4X ratings, is tested to NEMA TS 2 traffic-signal vibration and shock profiles, and operates from -40°C to +55°C — making it a legitimate outdoor-rated unit. It is powered via PoE++ (IEEE 802.3bt Class 6), with typical draw of 24W and a maximum of 40W; the injector is included. The housing is aluminum (white) or polycarbonate (black) and weighs 3,200g (7.05 lb), measuring ø158×293.3mm. A wide accessory ecosystem of wall, pole, parapet, corner, ceiling, and in-ceiling mounts is listed explicitly.
The WV-U61300-ZYPR is described in its type field as an indoor PTZ. No IP rating, IK rating, operating temperature range, or ingress-protection certification is provided in the supplied specifications. Power is listed as PoE (standard not specified); no wattage is given. Mount types noted are wall and ceiling. Installers planning any outdoor or harsh-environment deployment should confirm environmental ratings with i-PRO before specifying this unit.
Which fits your VMS and analytics better?
The XNP-C9253R supports ONVIF Profile S, G, T, and M, as well as SUNAPI and Wisenet protocols. Edge analytics are AI-driven and include object detection (person, face, vehicle, license plate), vehicle sub-type classification (car, bus, truck, motorcycle, bicycle), virtual line crossing with direction, virtual area loitering, and object auto-tracking for persons and vehicles. On-board storage is provided via two Micro SD/SDHC/SDXC slots supporting up to 512GB each (1TB total), with SD card encryption. Security features include TPM with FIPS 140-2 Level 2, secure boot, signed and encrypted firmware, 802.1X network authentication, and SRTP/HTTPS/WSS. Alarm I/O requires the optional SPM-4210 accessory box; audio output capability is noted as partially truncated in the supplied spec text.
The WV-U61300-ZYPR lists ONVIF Profile S and T compatibility, and names specific VMS platforms: i-PRO WJ-NU series, Milestone, Genetec, and Axis Camera Station. No edge analytics, on-board storage, audio specifications, or cybersecurity certifications are documented in the provided specifications. The explicit VMS compatibility list may benefit integrators already standardized on those platforms.
Which should you choose: the C9253R or the U61300-ZYPR?
Our take: The XNP-C9253R is the stronger choice when the deployment demands outdoor-rated, AI-analytics-equipped PTZ coverage with defined imaging performance. Three concrete spec deltas support this: first, the C9253R carries IP66/IK10/NEMA 4X environmental ratings with a -40°C to +55°C operating range, while the U61300-ZYPR is specified only as an indoor unit with no published environmental ratings; second, the C9253R's 25x optical zoom (800x combined) with 200m Wise IR and 120dB Extreme WDR provides documented low-light and long-range imaging metrics, whereas none of those figures are present in the U61300-ZYPR specifications; third, the C9253R includes dual SD card slots (1TB total), AI auto-tracking, and FIPS 140-2 Level 2 TPM, all absent from the U61300-ZYPR spec sheet. The U61300-ZYPR warrants consideration for integrators working within named VMS ecosystems (Milestone, Genetec, Axis Camera Station) in controlled indoor environments where the missing specs may be acceptable given platform compatibility requirements.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Hanwha C9253R | i-PRO U61300-ZYPR |
|---|---|---|
| Resolution | 3840×2160 (8MP) | 4K (8MP) |
| Image Sensor | 1/2.8" CMOS | — |
| Lens / Focal Length | 5–125mm, 25x optical zoom (F1.6 wide / F3.73 tele) | — |
| Min. Illumination | 0.1 Lux color / 0 Lux IR | — |
| IR Range | 200m (Wise IR) | — |
| WDR | Extreme WDR 120dB | — |
| Max Frame Rate | 60fps (full-res 30fps @ 8MP) | — |
| Video Compression | H.265, H.264 (Main/Baseline/High), MJPEG; WiseStream II/III | H.265, H.264, MJPEG |
| ONVIF | Profile S, G, T, M | Profile S, T |
| IP Rating | IP66 | — |
| IK / Impact Rating | IK10 | — |
| Operating Temperature | -40°C to +55°C | — |
| Power Input / PoE Class | PoE++ IEEE 802.3bt Class 6 (24W typical / 40W max) | PoE (class not specified) |
| Edge Storage | Dual Micro SD/SDHC/SDXC, up to 1TB (512GB×2), encrypted | — |
| AI Analytics | Object detection: person, face, vehicle, license plate; auto-tracking; virtual line/area | — |
| VMS Compatibility | ONVIF, SUNAPI, Wisenet | ONVIF; i-PRO WJ-NU; Milestone; Genetec; Axis Camera Station |
| Dimensions | ø158×293.3mm (6.22×11.55") | — |
| Weight | 3,200g (7.05 lb) | — |
| Warranty | 3-year | — |
Frequently Asked Questions
Which should you choose: the C9253R or the U61300-ZYPR?
The XNP-C9253R is the stronger choice when the deployment demands outdoor-rated, AI-analytics-equipped PTZ coverage with defined imaging performance. Three concrete spec deltas support this: first, the C9253R carries IP66/IK10/NEMA 4X environmental ratings with a -40°C to +55°C operating range, while the U61300-ZYPR is specified only as an indoor unit with no published environmental ratings; second, the C9253R's 25x optical zoom (800x combined) with 200m Wise IR and 120dB Extreme WDR provides documented low-light and long-range imaging metrics, whereas none of those figures are present in the U61300-ZYPR specifications; third, the C9253R includes dual SD card slots (1TB total), AI auto-tracking, and FIPS 140-2 Level 2 TPM, all absent from the U61300-ZYPR spec sheet. The U61300-ZYPR warrants consideration for integrators working within named VMS ecosystems (Milestone, Genetec, Axis Camera Station) in controlled indoor environments where the missing specs may be acceptable given platform compatibility requirements.
Is the XNP-C9253R or the WV-U61300-ZYPR better for low-light performance?
Based on the specifications provided, only the XNP-C9253R includes low-light data: it is rated at 0.1 Lux color and 0 Lux with IR active, backed by 200m Wise IR illumination and 120dB Extreme WDR. No minimum illumination, IR range, or WDR rating is listed for the WV-U61300-ZYPR, so a direct comparison cannot be made from the supplied specs. Buyers should request the i-PRO low-light figures from the manufacturer before deciding.
Can either camera be installed outdoors?
The XNP-C9253R is explicitly outdoor-rated: IP66, IK10, NEMA 4X, and NEMA TS 2 certified, with an operating range of -40°C to +55°C. The WV-U61300-ZYPR is described in its type field as an indoor PTZ; no IP or IK rating is provided in its specifications. Only the XNP-C9253R should be specified for outdoor or exposed-environment installations based on the data available.
Which camera works with Milestone or Genetec VMS?
The WV-U61300-ZYPR explicitly lists Milestone and Genetec (along with i-PRO WJ-NU and Axis Camera Station) as compatible VMS platforms. The XNP-C9253R lists ONVIF Profile S/G/T/M, SUNAPI, and Wisenet but does not name Milestone or Genetec in the supplied specifications. Both cameras support ONVIF, which provides a baseline level of interoperability with most major VMS platforms, but the U61300-ZYPR has documented, named compatibility with Milestone and Genetec.
