Geovision PBL880W-0010 vs Pelco SRXF3-8360-ERS: Specification Comparison

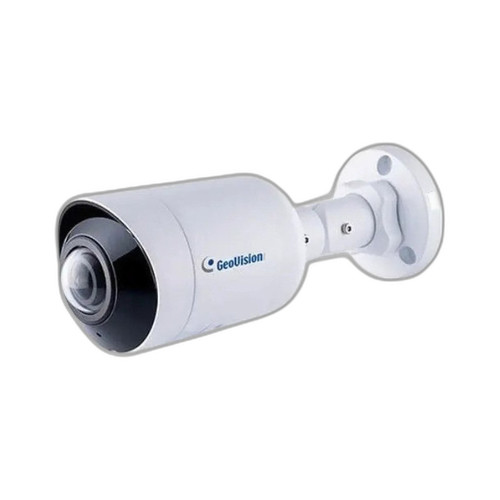

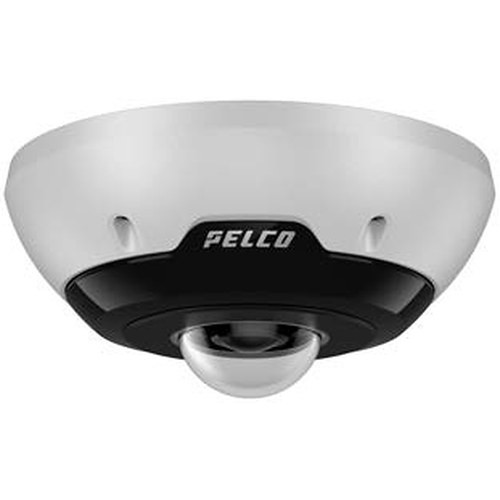

Both the Geovision PBL880W-0010 and the Pelco SRXF3-8360-ERS are 8MP fixed IP cameras designed for wide-area surveillance coverage, making them legitimate cross-shop candidates for perimeter and open-area deployments. The PBL880W-0010 achieves 180° panoramic coverage via a 1.68mm bullet-body lens, while the SRXF3-8360-ERS delivers full 360° coverage through a 2.7mm fisheye optic. This comparison examines imaging performance, installation requirements, and integration characteristics based solely on the published specifications for each model.
In This Guide
How do the imaging specs compare?
Both cameras are rated at 8MP. The Geovision PBL880W-0010 uses a 1.68mm panoramic lens to achieve a 180° horizontal field of view in a bullet form factor, with IR illumination at 850nm and a 'Super Low Lux' minimum illumination specification. WDR is listed as 'WDR Pro' in one spec field and 'WDR' in another—the specific dynamic range figure in dB is not provided in the available specifications. The Pelco SRXF3-8360-ERS resolves its 8MP sensor at 3264×2448 pixels across a full 360° fisheye field of view using a 2.7mm f/2.5 (aperture also listed separately as F2.0—the spec is internally inconsistent) lens, at a maximum frame rate of 12.5 fps at full resolution. WDR on the Pelco is listed as active up to 83dB.
For low-light performance, the Geovision specifies IR (850nm) illumination with 'Super Low Lux' sensitivity, though no lux figure in numeric form is provided in the supplied specs. The Pelco SRXF3-8360-ERS also specifies IR illumination described as 360° integrated IR at 850nm with Day/Night capability and a storage temperature noted but no numeric minimum illumination lux value provided. Both cameras include IR, but neither spec sheet as provided gives a direct numeric lux comparison. The Pelco's 12.5 fps ceiling at full 8MP resolution is a meaningful constraint for motion-intensive scenes; the Geovision's maximum frame rate is not stated in the provided specifications.
What about installation and environment?
The Pelco SRXF3-8360-ERS carries IP66 and NEMA 4X environmental ratings and an IK10 impact resistance rating, confirming suitability for outdoor and vandal-resistant installations. Its operating temperature range is specified as -40°C to +60°C, covering extreme cold and heat environments. Power is PoE+ (802.3at, Class 3), meaning a single Ethernet cable handles both data and power without requiring a separate power supply, provided the switch port supports 802.3at. Physical dimensions are 6" × 6" × 2.81". Mounting options listed include wall, ceiling, pole, pendant, and corner. On-board microSD storage is supported. The Geovision PBL880W-0010 specifies wall and pole mounting; no IP rating, IK rating, operating temperature range, or PoE class is present in the supplied specifications for this model.
The absence of IP, IK, and temperature specs for the Geovision PBL880W-0010 does not confirm or deny outdoor suitability—buyers should consult the full datasheet at the linked PDF before specifying this unit for outdoor or vandal-exposed locations. The Pelco's documented IP66/NEMA 4X/IK10/-40°C floor provides a verifiable baseline for harsh-environment procurement.
Which fits your VMS and analytics better?
Both cameras support ONVIF: the Geovision PBL880W-0010 lists ONVIF-compatible NVR/VMS integration generically, while the Pelco SRXF3-8360-ERS specifies ONVIF Profile S and Profile T compliance, which are more precisely defined interoperability levels. Both support H.264; the Geovision also lists H.265 in its compression spec, which can reduce bandwidth and storage consumption significantly. The Pelco spec does not list H.265 support in the provided data, though H.265 is listed under the Compression field in the raw specs—this internal inconsistency exists in the provided data and should be verified against the manufacturer datasheet.
On analytics, the Geovision PBL880W-0010 lists 'AI' analytics without specifying the number or type of behaviors. The Pelco SRXF3-8360-ERS specifies Pelco Smart Analytics with 8 configurable behaviors, providing a concrete count. The Pelco also notes microphone/audio support and on-board microSD storage. Audio and on-board storage specifications are absent from the Geovision's provided spec set. The Pelco's analytics are platform-specific (Pelco ecosystem); buyers should confirm VMS-native decoding of the fisheye dewarp stream for their chosen platform. The Geovision lists a 4GB RAM / 4GB Flash memory spec, which is present but unusual for a camera and may warrant datasheet verification.
Which should you choose: the PBL880W-0010 or the SRXF3-8360-ERS?
Our take: The SRXF3-8360-ERS is the stronger choice when a single camera must cover a full 360° area in a harsh outdoor environment with documented vandal resistance. The Pelco specifies IP66/NEMA 4X/IK10 protection and an operating range of -40°C to +60°C—none of these figures are present in the Geovision's supplied specifications, creating procurement risk for outdoor or high-abuse sites. The Pelco's WDR is quantified at up to 83dB and its ONVIF compliance is declared at Profile S and Profile T, versus the Geovision's unquantified WDR and generic ONVIF claim. Conversely, the PBL880W-0010 lists H.265 compression (confirmed in specs), which can cut bandwidth and storage costs versus the Pelco's H.264-primary profile. The Geovision's 180° panoramic bullet form factor suits corridor or wall-end deployments where full 360° is unnecessary. Choose the Geovision only after confirming its environmental ratings via its full datasheet; choose the Pelco where the 12.5 fps frame rate ceiling and Pelco-ecosystem analytics are acceptable trade-offs.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Geovision PBL880W-0010 | Pelco SRXF3-8360-ERS |
|---|---|---|
| Resolution | 8MP | 8MP (3264 × 2448) |
| Lens / Focal Length | 1.68mm (180° panoramic) | 2.7mm f/2.5 (360° fisheye) |
| Field of View | 180° | 180° / 360° |
| Form Factor | Panoramic Bullet | Fisheye |
| Max Frame Rate | — | 12.5 fps at full resolution |
| Video Compression | H.265; H.264 | H.264 (H.265 listed in one field—verify datasheet) |
| WDR | WDR Pro (dB not specified) | WDR up to 83dB |
| Min Illumination | Super Low Lux (no lux figure provided) | — (no lux figure provided) |
| IR Illumination | IR 850nm | 360° integrated IR 850nm |
| Day/Night | — | Yes |
| IP Rating | — | IP66 / NEMA 4X |
| IK / Impact Rating | — | IK10 |
| Operating Temperature | — | -40°C to +60°C |
| Power Input / PoE Class | — (PoE class not specified) | PoE+ 802.3at / Class 3 |
| ONVIF Compliance | ONVIF (profile level not specified) | ONVIF Profile S; Profile T |
| Edge Analytics | AI (behaviors not specified) | Pelco Smart Analytics; 8 configurable behaviors |
| Audio | — | Microphone supported |
| Edge Storage | — | microSD |
| Mount Types | Wall; Pole | Wall; Ceiling; Pole; Pendant; Corner |
| Dimensions | — | 6" × 6" × 2.81" |
| Warranty | — | 5 years |
| Housing Color | — | White |
Frequently Asked Questions
Which should you choose: the PBL880W-0010 or the SRXF3-8360-ERS?
The SRXF3-8360-ERS is the stronger choice when a single camera must cover a full 360° area in a harsh outdoor environment with documented vandal resistance. The Pelco specifies IP66/NEMA 4X/IK10 protection and an operating range of -40°C to +60°C—none of these figures are present in the Geovision's supplied specifications, creating procurement risk for outdoor or high-abuse sites. The Pelco's WDR is quantified at up to 83dB and its ONVIF compliance is declared at Profile S and Profile T, versus the Geovision's unquantified WDR and generic ONVIF claim. Conversely, the PBL880W-0010 lists H.265 compression (confirmed in specs), which can cut bandwidth and storage costs versus the Pelco's H.264-primary profile. The Geovision's 180° panoramic bullet form factor suits corridor or wall-end deployments where full 360° is unnecessary. Choose the Geovision only after confirming its environmental ratings via its full datasheet; choose the Pelco where the 12.5 fps frame rate ceiling and Pelco-ecosystem analytics are acceptable trade-offs.
Is the PBL880W-0010 or SRXF3-8360-ERS better for low-light performance?
Both cameras specify 850nm IR illumination, but neither provides a numeric minimum illumination figure (in lux) in the supplied specifications. The Geovision lists 'Super Low Lux' as a qualitative descriptor; the Pelco lists Day/Night with 360° integrated IR. A direct numeric comparison cannot be made from the available data—consult each manufacturer's datasheet for lux values before selecting on low-light performance.
Can either camera be installed outdoors without additional housing?
The Pelco SRXF3-8360-ERS is documented as outdoor-ready with IP66 and NEMA 4X ratings and an IK10 impact rating, rated from -40°C to +60°C. The Geovision PBL880W-0010 does not include an IP rating, IK rating, or operating temperature range in the provided specifications. Outdoor suitability for the Geovision cannot be confirmed from the available data alone.
Which camera offers better VMS integration flexibility?
The Pelco SRXF3-8360-ERS declares ONVIF Profile S and Profile T compliance, which are well-defined interoperability standards. The Geovision PBL880W-0010 states ONVIF compatibility generically without specifying a Profile level. Both support H.264; the Geovision additionally lists H.265, which broadens compatibility with modern NVR platforms and reduces storage overhead. For Pelco-ecosystem VMS environments, the SRXF3-8360-ERS and its 8-behavior Smart Analytics will integrate most tightly.
