Geovision MFD2401-1F1U vs Geovision VD25000-001U: Specification Comparison
Both the Geovision MFD2401-1F1U and the VD25000-001U are 2MP ONVIF-compliant fixed dome cameras powered over PoE, making them legitimate cross-shop candidates for an IP camera refresh. The MFD2401-1F1U is a compact indoor mini dome with a fixed 4mm lens and WDR Pro, while the VD25000-001U is a vandal-rated outdoor dome with a varifocal 3–9mm lens, IR night vision, and an IP66 weatherproof housing. The comparison below is driven entirely by the specifications provided for each model.
In This Guide
How do the imaging specs compare?
Both cameras share a 2MP resolution, but their optical and low-light capabilities diverge significantly. The MFD2401-1F1U uses a fixed 4mm lens, which locks the field of view at installation and suits corridors or counters where the coverage zone is predetermined. It carries a WDR Pro designation, indicating a high-dynamic-range mode intended to reduce halo artifacts in mixed-lighting environments such as lobbies with bright windows. No IR or low-light illumination spec is listed for this model in the provided data.
The VD25000-001U is fitted with a varifocal 3–9mm lens, giving the installer a 3× optical zoom range to dial in the exact field of view on site without swapping optics. Its low-light capability is documented as IR, Day/Night, and Super Low Lux, meaning it includes an IR illuminator for true zero-lux operation and an ICR filter for automatic day-to-night switching. No WDR rating is listed for the VD25000-001U in the provided specifications.
What about installation and environment?

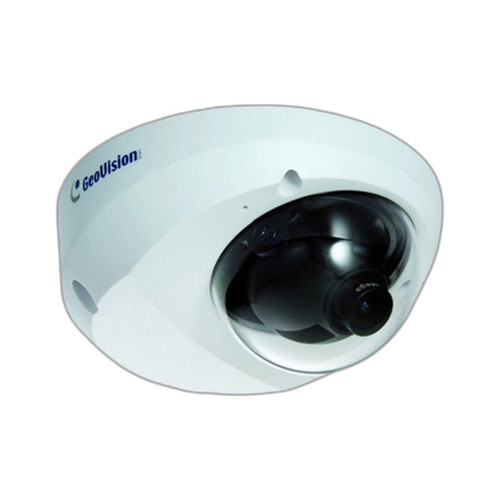

The MFD2401-1F1U is rated for indoor use only; no IP or IK rating is listed in the provided specs, and no operating temperature range is given. It draws power at 5V DC via PoE 802.3af, supports ceiling and wall mounting, and connects via a standard RJ-45 jack. Its compact mini-dome form factor suits clean indoor spaces such as retail interiors, offices, and reception areas.
The VD25000-001U carries an IP66 weatherproof rating and is described as vandal-resistant, enabling deployment in exposed outdoor or semi-outdoor locations. Its operating temperature range spans -40°C to 60°C, covering extreme cold and high-heat environments. Power is supplied via PoE 802.3af/at, giving it compatibility with both standard and high-power PoE switches. It also supports ceiling and wall mounting in dome form factor. No IK impact rating is listed in the provided specs.
Which fits your VMS and analytics better?
The MFD2401-1F1U is listed as ONVIF-compliant and outputs H.264 video, integrating with any ONVIF-capable NVR or VMS over a single RJ-45 PoE connection. No specific ONVIF profile version (S, T, or G) is identified in the provided specs, and no edge analytics, audio, or on-board storage capabilities are listed for this model.
The VD25000-001U declares ONVIF Profile S and Profile T compliance. Profile S covers basic live streaming and PTZ control, while Profile T adds H.264/H.265 video streaming, motion alarms, and metadata support—providing a broader baseline for VMS feature integration. No compression codec (e.g., H.264 or H.265), edge analytics, audio, or on-board storage specs are listed in the provided data for this model.
Which should you choose: the MFD2401-1F1U or the VD25000-001U?
Our take: The MFD2401-1F1U is the stronger choice when deploying in controlled indoor environments where fixed framing, WDR Pro, and a minimal footprint are priorities. The VD25000-001U is the stronger choice for any outdoor, semi-exposed, or vandalism-prone location. Three concrete spec deltas drive that split: first, the VD25000-001U carries an IP66 rating and a -40°C to 60°C operating range versus no IP/temperature rating on the MFD2401-1F1U; second, the VD25000-001U includes IR and Super Low Lux night vision while the MFD2401-1F1U lists no IR capability at all; third, the VD25000-001U's varifocal 3–9mm lens allows post-mount field-of-view adjustment, whereas the MFD2401-1F1U's 4mm fixed lens does not. If your site is entirely indoor, climate-controlled, and well-lit, the MFD2401-1F1U's WDR Pro and compact form are valid advantages—but for any exterior or harsh-environment deployment, the VD25000-001U is the appropriate specification.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Geovision MFD2401-1F1U | Geovision VD25000-001U |
|---|---|---|
| Resolution | 2 MP | 2 MP |
| Camera Type | Mini Fixed Dome | IR Vandal Dome |
| Lens / Focal Length | 4mm fixed | Varifocal 3–9mm |
| WDR | WDR Pro | — |
| IR / Low-Light | — | IR; Day/Night; Super Low Lux |
| IR Range | — | Not specified |
| Video Compression | H.264 | — |
| ONVIF Profile | ONVIF (profile not specified) | ONVIF Profile S/T |
| IP Rating | — | IP66 |
| Operating Temperature | — | -40°C to 60°C |
| Power Input / PoE Class | PoE 802.3af; 5V DC | PoE 802.3af/at |
| Connector | RJ-45 | — |
| Mount Type | Ceiling; Wall | Ceiling; Wall |
| Intended Environment | Indoor | Outdoor / Harsh |
Frequently Asked Questions
Which should you choose: the MFD2401-1F1U or the VD25000-001U?
The MFD2401-1F1U is the stronger choice when deploying in controlled indoor environments where fixed framing, WDR Pro, and a minimal footprint are priorities. The VD25000-001U is the stronger choice for any outdoor, semi-exposed, or vandalism-prone location. Three concrete spec deltas drive that split: first, the VD25000-001U carries an IP66 rating and a -40°C to 60°C operating range versus no IP/temperature rating on the MFD2401-1F1U; second, the VD25000-001U includes IR and Super Low Lux night vision while the MFD2401-1F1U lists no IR capability at all; third, the VD25000-001U's varifocal 3–9mm lens allows post-mount field-of-view adjustment, whereas the MFD2401-1F1U's 4mm fixed lens does not. If your site is entirely indoor, climate-controlled, and well-lit, the MFD2401-1F1U's WDR Pro and compact form are valid advantages—but for any exterior or harsh-environment deployment, the VD25000-001U is the appropriate specification.
Is the MFD2401-1F1U or VD25000-001U better for low-light or nighttime coverage?
The VD25000-001U is better for low-light use. Its spec sheet lists IR illumination, Day/Night switching, and Super Low Lux sensitivity, enabling operation in near-zero or zero ambient light. The MFD2401-1F1U lists no IR or low-light capability in the provided specifications.
Can either camera be installed outdoors?
Only the VD25000-001U is rated for outdoor use based on the provided specs. It carries an IP66 weatherproof rating and operates from -40°C to 60°C. The MFD2401-1F1U is specified for indoor use only, with no IP rating or temperature range listed.
Will both cameras work with my existing ONVIF VMS?
Both cameras declare ONVIF compliance, so either will connect to an ONVIF-capable NVR or VMS. However, the VD25000-001U specifies ONVIF Profile S and Profile T, which means it exposes a defined feature set including metadata and motion alarms under those profiles. The MFD2401-1F1U is listed as ONVIF-compliant but no specific profile version is identified in the provided specs, so confirm profile support with Geovision before selecting it for a VMS that requires Profile S or T features.
