Digital Watchdog MPTZ230XTW vs Digital Watchdog PTZ220XW: Specification Comparison
Both the Digital Watchdog DWC-MPTZ230XTW and DWC-PTZ220XW are outdoor IP PTZ dome cameras sharing a 2.1MP/1080p sensor and IP66/IK10-rated aluminum housings — making them genuine cross-shop candidates for installers evaluating wide-area PTZ coverage. The MPTZ230XTW is a newer network-only unit with 30x optical zoom and PoE++ power, while the PTZ220XW is a hybrid analog/IP unit with 20x optical zoom powered by 24V AC. The comparison below is drawn strictly from the specifications provided for each model.
In This Guide
How do the imaging specs compare?
The MPTZ230XTW uses a 1/3" 2.1MP CMOS sensor with a 4.3–129mm motorized varifocal lens delivering 30x optical zoom and a horizontal field of view spanning 65.1° (wide) to 2.34° (telephoto). Its Smart IR™ illuminator is rated to 200 feet, and it achieves minimum scene illumination of 0.05 lux in color and 0.0 lux in B/W. WDR is specified at True WDR 120dB, and the lens includes P-iris control in addition to autofocus and motorized zoom. The PTZ220XW uses a larger 1/2.8" 2.1MP CMOS sensor with a 4.7–94mm lens for 20x optical zoom and an HFOV of 55.5° to 3°. Low-light performance is listed at 0.35 lux (color) and 0.013 lux (B/W) via Star-Light technology with IR — notably the color minimum illumination is higher (less sensitive in color) than the MPTZ230XTW, though the B/W figure of 0.013 lux is measurably better than the MPTZ230XTW's 0.05 lux in color mode. WDR on the PTZ220XW is rated at True WDR 100dB, 20dB below the MPTZ230XTW.
On PTZ mechanics, the MPTZ230XTW supports 360° endless pan at up to 360°/sec, tilt from 5° to 90°, 255 presets, and 10 tours. The PTZ220XW pans at up to 380°/sec (preset speed) with a wider tilt range of -10° to 190°, but offers fewer presets (240) and fewer tours (8). The PTZ220XW also adds 8 patterns and 1 auto-pan plus 16 auto-scan modes not listed for the MPTZ230XTW. The MPTZ230XTW includes Digital Image Stabilization (DIS) and de-fog; the PTZ220XW lists DIS but de-fog is not specified.
What about installation and environment?
Both cameras share IP66 weatherproofing, IK10 vandal resistance, aluminum die-cast construction, and an operating temperature range of -4°F to 122°F (-20°C to 50°C). Housing humidity tolerance differs slightly: the MPTZ230XTW is rated 10–90% non-condensing, while the PTZ220XW is rated 0–90% RH non-condensing. Both are finished in white.
Power is a meaningful differentiator. The MPTZ230XTW draws up to 35W and requires a high-power PoE injector (PoE Class 5 / PoE++) included in the package, or 24V AC. The PTZ220XW draws only 12W maximum and is powered by 24V AC only (500mA) or DC12V (1A); its PoE designation in the spec data is listed but the primary power spec is 24V AC — installers should verify PoE injector compatibility independently. The MPTZ230XTW's higher power draw requires infrastructure supporting PoE++ (IEEE 802.3bt); standard PoE switches will not suffice without the included injector. The PTZ220XW is lighter (3.50 lbs / 1.6 kg vs. 6.17 lbs / 2.8 kg) and smaller, which may matter for pole or corner mounts. The PTZ220XW's spec lists optional mounting accessories sold separately; the MPTZ230XTW requires accessories sold separately.
Which fits your VMS and analytics better?
The MPTZ230XTW is a pure IP camera with full ONVIF compliance, supporting H.264, H.265, and MJPEG compression in dual-stream configuration at up to 30fps. It supports SNMPv1/v2/v3, IPv4/IPv6, 802.1x, HTTPS/TLS, IP filtering, and digest authentication. On-board storage accepts Micro SD/SDHC/SDXC up to 1TB with pre- and post-event buffering. It includes 1 audio in / 1 audio out (G.711 compression), 1 alarm input and 1 alarm output, and 4 programmable motion detection zones with 4 privacy masks. It is compatible with any ONVIF-compliant VMS.

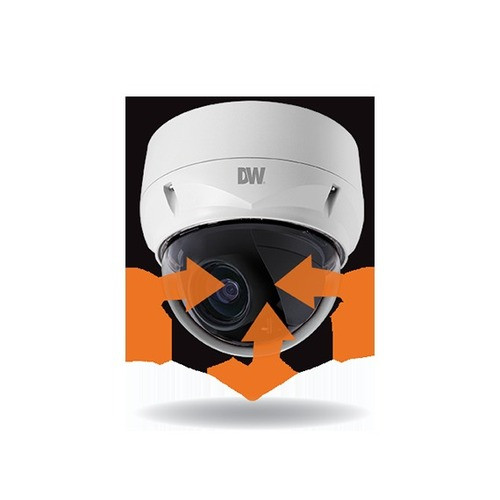

The PTZ220XW is a hybrid unit supporting HD-Analog, HD-TVI, CVBS, and 960H analog outputs in addition to IP, and is controlled via RS-485 or UTC in addition to network. It is listed as compatible with Digital Watchdog's VMAX A1 Plus DVR. Network compression type is not explicitly specified in the provided specs (no H.264/H.265 listing found), and on-board SD card storage is not listed. Audio I/O is not listed. It provides 4 alarm inputs and 1 alarm output — more alarm inputs than the MPTZ230XTW. ONVIF compliance is not stated in the provided specs for the PTZ220XW.
Which should you choose: the MPTZ230XTW or the PTZ220XW?
Our take: The MPTZ230XTW is the stronger choice when the deployment is a pure IP/ONVIF environment requiring long-range zoom, higher WDR, and on-board storage. Its 30x optical zoom (4.3–129mm vs. 4.7–94mm), 200-foot Smart IR range with a 0.05 lux color minimum illumination, True WDR rated at 120dB vs. 100dB, H.265 dual-stream compression, 1TB edge storage support, and audio I/O represent a materially richer IP feature set. The PTZ220XW is the appropriate choice when the site uses or plans to retain analog infrastructure (HD-TVI, HD-Analog, CVBS), requires RS-485/UTC control, needs a lower-power draw (12W vs. 35W), or benefits from its 1/2.8" sensor's 0.013 lux B/W Star-Light sensitivity advantage. The MPTZ230XTW carries a 2-year warranty; the PTZ220XW carries a 5-year warranty — a significant lifecycle cost consideration for budget-constrained deployments.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Digital Watchdog MPTZ230XTW | Digital Watchdog PTZ220XW |
|---|---|---|
| Sensor Size | 1/3" CMOS | 1/2.8" CMOS |
| Max Resolution | 2.1MP / 1080p | 2.1MP / 1080p |
| Active Pixels | 1981 (H) x 1288 (V) | 1945 (H) x 1097 (V) |
| Min Illumination (Color / B/W) | 0.05 lux (color) / 0.0 lux (B/W) | 0.35 lux (color) / 0.013 lux (B/W) |
| Optical Zoom / Focal Length | 30x / 4.3–129mm | 20x / 4.7–94mm |
| IR Range | 200 ft Smart IR™ | Not specified |
| WDR | True WDR 120dB | True WDR 100dB |
| Pan Speed / Pan Range | 360°/sec / 360° endless | 380°/sec (preset) / 360° endless |
| Tilt Range | 5°–90° | -10°–190° |
| Presets / Tours | 255 presets / 10 tours | 240 presets / 8 tours |
| Video Compression | H.264, H.265, MJPEG (dual-stream) | Not specified in provided specs |
| ONVIF | Yes | Not specified in provided specs |
| Power Input / Max Draw | 24V AC or PoE++ (Class 5) / 35W | 24V AC or DC12V / 12W |
| Edge Storage | Micro SD/SDHC/SDXC up to 1TB | Not specified |
| Audio I/O | 1 in / 1 out (G.711) | Not specified |
| Alarm I/O | 1 input / 1 output | 4 inputs / 1 output |
| IP / IK Rating | IP66 / IK10 | IP66 / IK10 |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) | -4°F to 122°F (-20°C to 50°C) |
| Weight | 6.17 lbs (2.8 kg) | 3.50 lbs (1.6 kg) |
| Analog Output | None specified | HD-Analog, HD-TVI, CVBS, 960H |
| Warranty | 2 years | 5 years |
Frequently Asked Questions
Which should you choose: the MPTZ230XTW or the PTZ220XW?
The MPTZ230XTW is the stronger choice when the deployment is a pure IP/ONVIF environment requiring long-range zoom, higher WDR, and on-board storage. Its 30x optical zoom (4.3–129mm vs. 4.7–94mm), 200-foot Smart IR range with a 0.05 lux color minimum illumination, True WDR rated at 120dB vs. 100dB, H.265 dual-stream compression, 1TB edge storage support, and audio I/O represent a materially richer IP feature set. The PTZ220XW is the appropriate choice when the site uses or plans to retain analog infrastructure (HD-TVI, HD-Analog, CVBS), requires RS-485/UTC control, needs a lower-power draw (12W vs. 35W), or benefits from its 1/2.8" sensor's 0.013 lux B/W Star-Light sensitivity advantage. The MPTZ230XTW carries a 2-year warranty; the PTZ220XW carries a 5-year warranty — a significant lifecycle cost consideration for budget-constrained deployments.
Is the MPTZ230XTW or PTZ220XW better for low-light performance?
It depends on the lighting mode. The PTZ220XW's Star-Light sensor achieves 0.013 lux in B/W, which is lower than the MPTZ230XTW's 0.05 lux in color mode. However, the MPTZ230XTW reaches 0.0 lux in B/W with its Smart IR™ active and offers a 200-foot IR range — the PTZ220XW's IR range is not specified in the provided specs. If IR-assisted near-zero-lux B/W performance at long range matters most, the MPTZ230XTW holds the advantage on specified IR range.
Can the PTZ220XW work on a standard PoE switch without an injector?
The PTZ220XW's primary specified power source is 24V AC (12W / 500mA) or DC12V. Its PoE designation appears in the provided spec data but the authoritative power spec lists 24V AC. Installers should confirm with Digital Watchdog documentation whether a standard 802.3af/at port is sufficient. The MPTZ230XTW explicitly requires PoE Class 5 (PoE++ / 802.3bt) or a high-power PoE injector — included in the box — due to its 35W draw.
Which camera is better suited for a hybrid analog and IP system?
The PTZ220XW is the clear choice for hybrid deployments. It outputs HD-Analog, HD-TVI, CVBS, and 960H signals in addition to IP, and supports RS-485 and UTC control — making it compatible with analog DVRs such as Digital Watchdog's VMAX A1 Plus. The MPTZ230XTW is a network-only camera with no analog output listed in its specifications.
