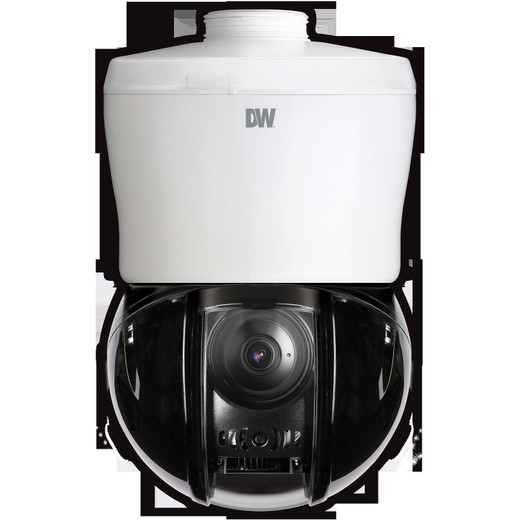

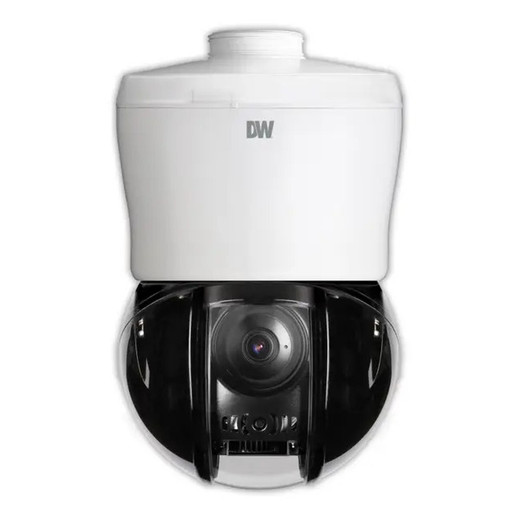

Digital Watchdog DWC-MPTZ230XTW 2MP Outdoor IR PTZ IP Camera

Digital Watchdog DWC-MPTZ230XTW 2MP Outdoor IR PTZ Camera

The Digital Watchdog DWC-MPTZ230XTW is a professional-grade 2MP outdoor infrared pan-tilt-zoom IP camera engineered for comprehensive surveillance in demanding environments. Built on a 2.1MP 1/3" CMOS sensor with 3840 x 2160 active pixels, this camera delivers exceptional image clarity while maintaining robust performance across variable lighting conditions. Its motorized varifocal lens (4.3–129mm) provides 30x optical zoom and 30x digital zoom, enabling operators to capture critical details from significant distances.

Key Features

• 2MP resolution with Full HD 1080p network streaming at up to 30fps
• Motorized vari-focal lens with 4.3–129mm focal length and 30x optical zoom

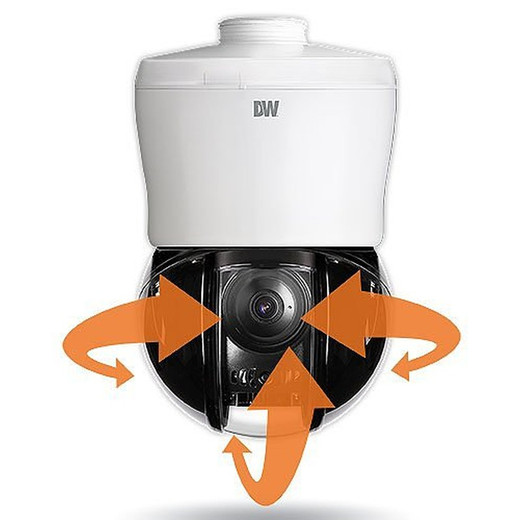

• 360° endless pan rotation at 360°/second; 5–90° tilt range at 360°/second
• Smart IR™ infrared night vision with 200-foot effective range
• Auto day/night switching between color (day) and B/W (night) modes
• IP66-rated weatherproof aluminum die-cast housing for outdoor durability
• IK10 vandal resistance rated for harsh environments
• PoE++ power (Class 5) with optional 24V AC/DC alternatives
• Dual-stream H.264/H.265/MJPEG video compression with multi-bitrate control
• microSD/SDHC/SDXC card slot supporting up to 1TB onboard storage
• 255 preset positions and 10 tour functions for automated monitoring
• 4 programmable motion detection zones and 4 privacy masks
• True WDR 120dB for balanced exposure in high-contrast scenes
• Smart DNR™ 3D Digital Noise Reduction and Digital Image Stabilization
• De-fog, auto focus, P-iris, and motorized zoom for adaptive image control

Advanced Imaging & Processing

Exceptional low-light performance is achieved through Smart IR™ technology delivering clear imagery down to 0.05 lux in color and 0.0 lux in black/white modes. The camera's True WDR 120dB handles backlit and high-contrast scenarios seamlessly, while Smart DNR™ 3D noise reduction maintains clarity in reduced lighting without sacrificing frame rate. Auto gain control, selectable shutter modes (auto, manual, slow shutter up to x4), and white balance adjustment ensure optimal image quality across all conditions.

Connectivity & Network Integration

The camera supports dual IPv4/IPv6 connectivity via RJ45 10/100Base-T Ethernet with ONVIF conformance, enabling seamless integration with industry-standard video management systems including DW Spectrum® IPVMS, Milestone Systems, and ExacqVision Technologies. Comprehensive protocol support includes RTSP, RTP (UDP/TCP), HTTP/HTTPS, FTP, DDNS, DHCP, NTP, SNMPv1/v2/v3, and 802.1x authentication. Security features include HTTPS/TLS encryption, digest authentication, and IP filtering.

Operational Features & Alerts

Event triggers include motion detection, network disconnection, and temperature anomaly alerts with configurable notifications via email, FTP server, SD card recording, and alarm output (1 input/1 output). Bi-directional audio support (1 input/1 output, G.711 compression) enables two-way communication. Event buffering provides 5-second pre-event and 240-second post-event SD card storage, with up to 5-second FTP pre-event capture.

Environmental Specifications

Rated for outdoor operation across -4°F to 122°F (-20°C to 50°C) and 10–90% non-condensing humidity, this camera withstands demanding climatic conditions. Power consumption ranges from 35W (AC24V) to 42W (PoE), with a high-power PoE injector included. Dimensions: 12.2" H x 3.81" W x 5.9" D (310 x 97 x 150mm); weight: 6.17 lbs (2.8 kg).

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MPTZ230XTW represents Digital Watchdog's commitment to delivering professional-grade PTZ surveillance without unnecessary complexity. The 30x optical zoom combined with motor-driven varifocal optics and Smart IR™ creates a highly versatile platform suited for large-area monitoring—parking facilities, perimeters, traffic corridors, and industrial sites benefit from its speed (360°/second pan/tilt) and precision (255 presets). The PoE++ Class 5 power budget and dual-stream H.265 compression optimize network bandwidth while maintaining operational flexibility.

True WDR 120dB and Smart DNR™ address real-world lighting challenges without frame rate penalty, a critical advantage over budget alternatives. ONVIF compliance ensures vendor neutrality and long-term compatibility. For integrators prioritizing reliability, zoom capability, and outdoor durability at enterprise scale, this camera justifies its investment through proven performance in harsh environments and seamless VMS integration.
