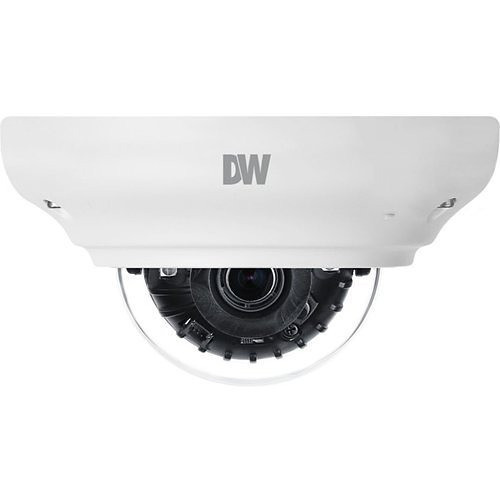

Digital Watchdog DWC-MPV72Wi28ATW 2MP Outdoor IR Dome Camera

The Digital Watchdog DWC-MPV72Wi28ATW is a professional-grade 2MP outdoor dome camera engineered for 24/7 surveillance in demanding environments. Built with a vandal-resistant design and IP67 weatherproofing, this camera delivers reliable monitoring for perimeter security, parking areas, and facility protection. Its combination of advanced imaging technology, intelligent video analytics, and robust construction makes it an ideal choice for organizations requiring dependable outdoor surveillance.

Key Features

• 2.1MP/1080p Full HD resolution for detailed video capture
• 80-foot Smart IR™ illumination for complete darkness monitoring
• Wide 111° horizontal field of view with 2.8mm fixed lens
• PoE power delivery for simplified installation
• IK10 vandal-resistant dome housing with aluminum die-cast construction
• IP67 rating for dust and water protection
• True WDR 120dB for balanced exposure in challenging lighting
• Auto day/night mode with intelligent IR control
• 16 programmable privacy masks for compliance
• Built-in microphone with G.711 audio compression
• Dual H.264/H.265 streaming at up to 30fps
• Micro SD/SDHC/SDXC local storage up to 1TB

Technical Highlights

Powered by a 2.1MP 1/2.8" CMOS sensor, the DWC-MPV72Wi28ATW captures crisp 1080p video with exceptional low-light sensitivity—0.05 lux in color mode and 0.0 lux in B/W with IR. The camera's advanced 3D Smart DNR™ noise reduction ensures clean footage even in challenging conditions. True Wide Dynamic Range (120dB) compensates for extreme backlighting, maintaining detail in both bright and dark areas simultaneously.

The camera supports intelligent video analytics including intrusion detection, line crossing, loitering, object counting, tamper detection, and directional monitoring. Optional IVA+ licensing unlocks advanced capabilities like tailgating detection, object removal alerts, and logical rule-based event triggers. Motion detection and programmable alarm outputs enable rapid response to security events.

Network connectivity includes IPv4 support with HTTPS/TLS encryption, 802.1x authentication, and MAC filtering. The camera streams over H.264, H.265, and MJPEG codecs with configurable bitrate control (32Kbps–20Mbps) and dual-stream capability. Compatible with DW Spectrum® IPVMS, Milestone Systems, and Genetec platforms, it integrates seamlessly into enterprise surveillance ecosystems.

Durability & Installation

Operating across -4°F to 122°F (-20°C to 50°C) and 10–90% humidity, this camera withstands seasonal extremes. The compact 4.13" × 2.38" design fits standard mounting brackets, with PoE delivering power efficiently at maximum 5.5W consumption. A 5-year warranty backs your investment in this surveillance workhorse.

Applications

• Parking lot and vehicle monitoring
• Perimeter and building facade coverage
• Outdoor entrance and exit points
• Facility grounds surveillance
• Loading dock and shipping area protection

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MPV72Wi28ATW balances affordability with feature depth, making it accessible for mid-market deployments while delivering institutional-grade reliability. The 2.8mm lens and 111° HFOV prioritize wide coverage over zoom capability—ideal for fixed perimeter monitoring where detail is secondary to situational awareness. Smart IR™ with 80-foot reach handles complete darkness effectively without the washout typical of older IR domes.

The IK10 rating and aluminum construction ensure longevity in vandalism-prone environments. Integration with major VMS platforms and support for H.265 encoding future-proofs bandwidth efficiency. Local Micro SD recording provides failsafe backup independent of network infrastructure.

For organizations deploying 10–100+ cameras across outdoor grounds, this camera's analytics suite and compliance features justify inclusion in enterprise systems.
