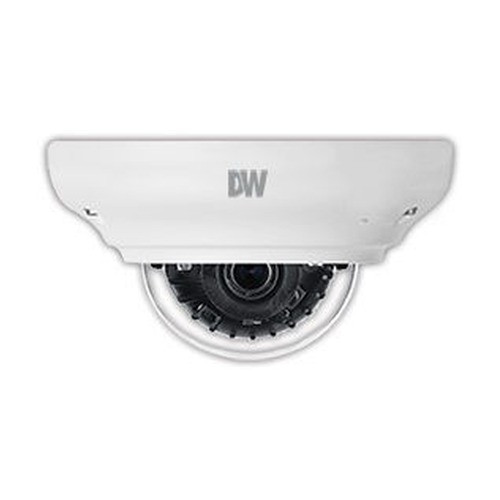

Digital Watchdog DWC-MV72Wi4ATW 2MP Outdoor IR Dome IP Camera

Digital Watchdog DWC-MV72Wi4ATW 2MP Outdoor IR Dome Camera

The Digital Watchdog DWC-MV72Wi4ATW is a robust 2MP outdoor IR dome camera designed for comprehensive surveillance in demanding environments. Featuring a vandal-resistant dome housing with IK10 rating and IP67 weatherproofing, this camera delivers reliable performance in harsh conditions while maintaining exceptional image quality day and night. The 4.0mm fixed lens provides an 86° horizontal field of view, ideal for focused monitoring of specific areas with precision coverage.

Key Features

• 2.1MP/1080p CMOS sensor with Full HD resolution
• 80-foot Smart IR™ night vision for complete darkness surveillance
• True WDR 120dB wide dynamic range for backlit scenes
• PoE powered with minimal power consumption (5.5W max)
• IK10 vandal-resistant dome with IP67 weatherproof rating
• IP67 rated for outdoor installation in extreme weather
• Auto day/night switching between color and B/W modes
• Smart DNR™ 3D digital noise reduction
• Integrated microphone with audio in/out capability
• Micro SD/SDHC/SDXC card slot supporting up to 1TB storage
• 16 programmable privacy masks for sensitive areas
• Motion detection with operational notifications

Advanced Technology & Performance

This camera excels in low-light environments, achieving visibility at 0.09 lux in color mode and 0.0 lux in black and white with IR assistance. The dual-stream capability supports simultaneous H.264, H.265, and MJPEG compression, enabling flexible bandwidth management at up to 30fps across all resolutions. Variable shutter speeds (8 to 1/50,000) combined with slow shutter technology ensure optimal exposure in any lighting condition.

Built-in intelligence includes intelligent video analytics (IVA) capabilities for intrusion detection, line crossing, loitering detection, and tamper alerts. The de-fog feature enhances visibility in adverse weather, while true 120dB WDR handles challenging high-contrast scenes with natural color reproduction. The camera supports multiple protocols including RTSP, HTTP, HTTPS, SNMP v1/v2/v3, and Genetec Protocol for seamless integration into diverse network environments.

Connectivity & Integration

PoE connectivity simplifies installation with a single network cable providing both power and data transmission. The camera supports IPv4 networks with standard security features including 802.1x authentication, HTTPS/TLS encryption, and MAC filtering. Compatible with leading VMS platforms including DW Spectrum® IPVMS, ExacqVision, and Milestone Systems. Bonjour and DHCP support enable automatic network discovery and configuration.

Applications

• Perimeter security and property protection
• Parking lot and vehicle monitoring
• Building entrance and access point surveillance
• Outdoor facility monitoring in extreme weather
• Crime prevention and evidence capture

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MV72Wi4ATW delivers enterprise-grade outdoor surveillance with exceptional build quality and advanced imaging capabilities. The IK10 vandal rating and aluminum die-cast housing ensure longevity in high-risk environments, while the 5-year warranty demonstrates manufacturer confidence. The 4.0mm lens provides tighter field of view than standard 2.8mm options, making this model ideal for longer-distance monitoring applications.

True 120dB WDR distinguishes this camera from budget alternatives, enabling reliable surveillance in parking lots and building facades with mixed lighting. The integrated IVA package supports critical analytics without additional licensing, reducing total cost of ownership. PoE operation simplifies large deployments, while dual-stream capabilities optimize bandwidth for mixed-resolution monitoring scenarios.

This camera represents a solid investment for facilities requiring rugged, feature-rich outdoor surveillance without premium pricing.
