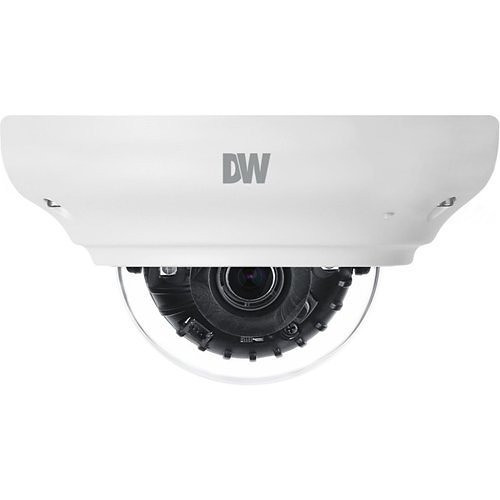

Digital Watchdog DWC-MPV72Wi4ATW 2MP Outdoor IR Dome IP Camera

Digital Watchdog DWC-MPV72Wi4ATW 2MP Outdoor IR Dome Camera

The Digital Watchdog DWC-MPV72Wi4ATW is a professional-grade 2MP outdoor IR dome camera engineered for reliable perimeter security and round-the-clock surveillance. Built with vandal-resistant construction and IP67-rated weatherproofing, this fixed-lens camera delivers sharp 1080p imagery and extended infrared coverage, making it ideal for challenging outdoor environments where durability and performance are non-negotiable.

Key Features

• 2.1MP/1080p CMOS sensor with 1945 x 1109 total pixels for detailed image capture
• 80-foot Smart IR™ range for reliable night vision in complete darkness
• 4.0mm fixed lens with 86° horizontal field of view for focused surveillance
• True WDR 120dB for balanced exposure across high-contrast scenes
• Smart DNR™ 3D digital noise reduction and de-fog capabilities
• IK10-rated vandal dome with aluminum die-cast housing and IP67 protection
• Auto day/night operation with color (day) and B/W (night) modes
• Built-in microphone with G.711 audio compression
• 16 programmable privacy masks for sensitive area protection

Technical Performance

This camera operates across a wide temperature range from -4°F to 122°F and maintains 10-90% humidity tolerance, ensuring consistent performance year-round. The sensor achieves excellent low-light sensitivity at 0.08 lux color and 0.0 lux B/W, paired with manual and slow-shutter modes for enhanced visibility in challenging conditions. Shutter speeds range from 8 to 1/50,000 for precise exposure control.

Streaming & Connectivity

The DWC-MPV72Wi4ATW supports H.264, H.265, and MJPEG video compression with dual-streaming capability at independent frame rates and resolutions. Streaming delivers up to 30fps at all resolutions with video bitrate from 32Kbps to 20Mbps, controlled via CBR/VBR bitrate management. PoE power delivery (5.5W max) simplifies installation with a single Ethernet connection. The camera supports Bonjour, DHCP, DDNS, RTSP, SNMP, and UPnP protocols for seamless integration with major VMS platforms including DW Spectrum® IPVMS, Milestone Systems, and ExacqVision.

Intelligent Video Analytics

Built-in IVA licensing enables intrusion detection, line crossing, people counting, loitering, entry/exit alerts, and tamper detection. Optional IVA+ adds logical rules, object removal detection, tailgating alerts, directional analysis, and stopped-object detection for advanced threat assessment.

Storage & Alerts

Onboard microSD card slot supports up to 1TB FAT32 storage (card sold separately) for local recording. Motion detection triggers SD card recording, email notifications, and alarm outputs for immediate response to suspicious activity.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MPV72Wi4ATW balances affordability with enterprise-class features. The 86° FOV suits medium-range perimeter monitoring; for wider coverage, the 2.8mm variant offers 111° HFOV. True WDR 120dB handling is critical for mixed lighting zones typical in outdoor deployments.

The IK10 rating and IP67 sealing withstand vandalism and washdown environments. PoE powering reduces installation cost versus dual-power cameras. Native H.265 support provides 40-50% bandwidth savings versus H.264 at equivalent quality—valuable for bandwidth-constrained sites.

The 5-year warranty reflects confidence in outdoor durability. Pair with compatible mounting hardware (sold separately) and DW Spectrum IPVMS for unified management across multi-camera deployments.
