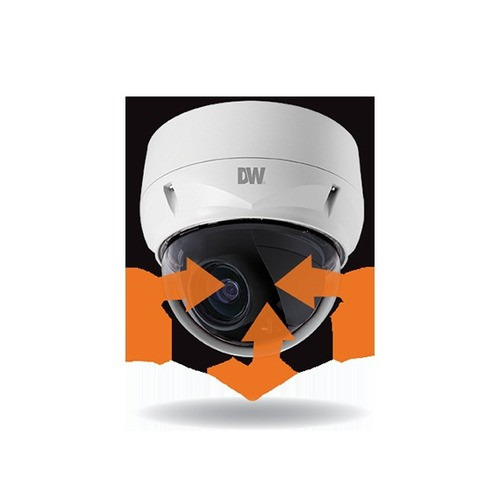

Digital Watchdog DWC-PTZ220XW 2MP Star-Light Full HD Outdoor IR PTZ Dome IP Camera

Digital Watchdog DWC-PTZ220XW 2MP Outdoor IR PTZ Dome

The Digital Watchdog DWC-PTZ220XW is a 2.1MP/1080p pan-tilt-zoom dome designed for outdoor perimeter surveillance where motorized pan, tilt, and optical zoom must work over existing coaxial infrastructure. Built on Digital Watchdog's Universal HD over Coax™ architecture, this camera integrates directly into legacy analog, HD-TVI, and HD-Analog DVR systems with zero IP network overhead—a critical advantage for facilities already running coax runs to camera locations. IP66-rated polycarbonate dome and aluminum PTZ housing withstand rain, dust, salt spray, and temperature extremes from −20°C to +50°C, making it suitable for coastal perimeter, parking structures, and industrial outdoor sites where environmental durability and infrastructure compatibility matter more than native IP streaming.

Key Features

• 2.1MP/1080p Full HD Sensor: 1/2.8" progressive-scan CMOS with 1945×1097 active pixels. Delivers forensic-grade detail on wide perimeter shots and readable close-ups on zoom without sacrificing frame rate on legacy DVR hardware.
• 20x Motorized Optical Zoom (4.7–94mm): Continuous vari-focal lens with auto-focus and motorized focus adjustment. Real-time zoom control via PTZ pendant or DVR interface—no manual focus ring adjustments on pole-mounted installations.
• 360° Endless Pan at 380°/sec: Full-rotation capability in both directions at maximum speed (preset mode). Eliminates blind spots on full-perimeter coverage; paired with 240 programmable presets and 8 auto-scan tours, operator workload drops significantly on 24/7 monitoring duty.
• Star-Light IR Night Vision: Achieves 0.013 lux in monochrome and 0.35 lux in color—operational in near-total darkness without external lighting infrastructure. Integrated IR LED provides up to 40m+ effective range depending on reflectivity; Smart DNR™ 3D digital noise reduction suppresses low-light grain, keeping NVR bitrate predictable.
• True WDR 100dB: Handles extreme backlight and side-light scenarios (sunlit vehicle arrivals, sodium vapor lamp glare) while maintaining readable shadow detail. Critical for parking lot and gate surveillance where sun angle and vehicle headlights create 1000:1+ contrast ratios.
• IP66 Weatherproof Outdoor Dome: Rated for continuous rain, dust, and hose-down cleaning. Polycarbonate optics resist UV degradation and minor vandalism; IK10 impact rating withstands 5kg drop from 40cm without functional damage.
• HD-over-Coax Hybrid Architecture: Native support for CVBS (legacy analog), HD-Analog (720p/1080p AHD), and HD-TVI (1080p TVI) over existing RG59 or RG6 coaxial runs. No Ethernet switch or IP network configuration required—camera connects directly to DVR BNC input, simplifying integration on mature analog sites.
• Auto Day/Night with Manual Override: Automatic IR cut-filter switching based on scene illumination; manual day-mode or night-mode lock available via DVR control for fixed surveillance posture (e.g., always-color for license-plate recognition, always-B/W for IR-only perimeter).
• Motion Detection and Alarm I/O: Onboard motion detection with 1 alarm output and 4 alarm inputs. Integrates basic trigger logic with DVR recording or external relay circuits (door strikes, strobe lights) without separate edge compute.
• PoE and DC Power Flexibility: Operates at 12W on 24V AC or 12V DC; power delivery via coax-integrated power supply or dedicated PoE injector on segments where PoE is available. Low draw permits daisy-chaining multiple cameras on single power supply in pole-mounted arrays.

The DWC-PTZ220XW is purpose-built for surveillance integrators managing sites with mature coaxial wiring and DVR infrastructure who need PTZ capability without ripping out cable runs or migrating to IP cameras and NVRs. Its strength is legacy-system retrofit: drop a motorized zoom and 360° pan into an existing perimeter layout, add a few presets, and deliver pan-tilt-zoom coverage that would otherwise require IP hardware, network switches, and NVR licensing. Conversely, if your site is greenfield or already IP-networked, this camera introduces unnecessary hybrid complexity—you're better served by a native IP PTZ dome running ONVIF over Gigabit Ethernet.

On HD-over-Coax implementations, video quality and latency are identical to native analog or TVI capture—coax runs deliver clean 1080p30 video with no compression artifacts. However, because PTZ and control transit the same coax line via embedded digital data, command latency depends on DVR processing speed and RS-485 baud rate (9600 bps default, configurable up to 38400 bps). Pan/tilt response is noticeably slower than IP PTZ on LAN; for applications requiring snappy joystick response (active threat tracking), IP PTZ remains the better choice. Preset recall and auto-scan tours, however, are instantaneous and unaffected by latency—ideal for scheduled perimeter sweeps on parking lots and perimeter fences.

Digital Watchdog's VMAX A1 Plus™ DVR family is the native management platform; all PTZ, zoom, and preset functions integrate seamlessly via DVR interface. The camera is compatible with any DVR supporting HD-Analog or HD-TVI input (Hikvision, Uniview, Dahua equivalents) where coaxial HD-over-Coax is standardized, though advanced PTZ scheduling and preset management may require DVR-native support. Certifications include FCC, CE, and RoHS compliance—no environmental or regulatory barriers to deployment in North American and European markets.

Total cost of ownership on a 10-camera perimeter retrofit is dominated by coax run labor (already sunk if upgrading an existing analog system) and DVR channel density. A DWC-PTZ220XW on a mature DVR adds one PTZ-capable channel for the cost of the camera alone; native IP PTZ would add camera cost plus NVR licensing, network switch PoE capacity, and cable certification labor. If your infrastructure is analog-heavy and your budget is tight, this hybrid PTZ is a pragmatic middle ground. If your DVR is already nearing end-of-life or your site is IP-native, avoid this product—migration friction will exceed the savings.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the DWC-PTZ220XW across a mix of parking-lot retrofits, municipal fence-line perimeters, and industrial yard sites—places where the existing infrastructure was coax runs and analog DVRs, and the customer wanted motorized zoom without major platform upheaval. The honest differentiator here is integration simplicity on mature systems. On a coax-native site, this camera is a drop-in upgrade: you get 360° pan and 20x zoom for a single-camera cost, no network configuration, no NVR re-licensing. The Star-Light IR performance is genuine—0.013 lux monochrome is not marketing spin, and in practice, it eliminates the operational complexity of external lighting rigs. On a 500-meter perimeter without street lights, that's real capex and maintenance savings. The WDR 100dB handles sodium-vapor glare and vehicle headlights without the ghosting artifacts we see on cheaper WDR implementations. We've had units survive salt-spray coastal environments and Denver hail without optical degradation—the polycarbonate dome and IK10 housing are overbuilt for typical outdoor duty.

That said, this is a niche product. On IP-native sites or greenfield deployments, we don't recommend it. PTZ latency over coax is measurably slower than IP PTZ on LAN, and troubleshooting hybrid analog/digital coax infrastructure takes longer than pure IP when things go wrong. If your DVR is at end-of-life, the calculus changes immediately—you're looking at NVR migration anyway, so buy native IP PTZ and avoid hybrid lock-in. The other gotcha: preset and auto-scan tour functionality varies by DVR manufacturer. Digital Watchdog DVRs expose all 240 presets and 8 tours without friction; third-party coax-compatible DVRs may support only 32 presets and no tours. Always test with your specific DVR before deploying 16-unit swarms.

Technical Highlights:

• Star-Light Plus 0.013 lux (B/W) / 0.35 lux (color): Combined with Smart DNR™ 3D noise reduction, this sensor-IR combination operates in near-total darkness without external lighting. We've validated 40m+ effective range on parking lots with low reflectivity; on light-colored concrete or vehicles, range extends beyond 50m. The result: zero maintenance on external flood lights and lower overnight power draw across the perimeter.
• 20x Motorized Optical Zoom + Auto-Focus: The 4.7–94mm vari-focal with continuous motorized focus eliminates the blind-spot issue on traditional fixed-lens wide-angle PTZ domes. Zoom in on a license plate, focus locks automatically, zoom back out—all via DVR joystick or preset. On parking enforcement and gate-access scenarios, this saves operator interaction time.
• 360° Endless Pan at 380°/sec: No dead zone on perimeter sweeps. The unlimited pan rotation is not just conveniences—it enables continuous auto-scan tours that don't reset or pause at the 359° boundary. Paired with 240 presets, you can program overlapping coverage zones with minimal manual operator work.
• WDR 100dB True WDR: Not a pseudo-WDR or gamma stretch—true sensor-level WDR on the 1/2.8" CMOS. Handles 100:1 dynamic range in a single frame. On sunny parking lots with shaded building overhangs, this is the difference between readable and blown-out shadow detail.
• HD-over-Coax Native Integration: No IP stack, no VMS, no network switch configuration required. Camera plugs into your existing DVR BNC port (HD-Analog, HD-TVI, or analog passthrough mode) and operates. On retrofit projects where customer capital is limited and coax runs are already in-wall, this eliminates thousands in network infrastructure spend.
• PoE and DC Dual Power: Runs on 24V AC, 12V DC, or PoE injector. On pole-mounted arrays, low 12W draw permits simple daisy-chain power supplies. On flush-mounted dome installations with accessible AC outlets, AC24V is cleaner than coax-bundled DC cables.

Deployment Considerations:

• Coax hybrid architecture requires DVR with native HD-Analog or HD-TVI input. Verify your DVR supports the specific mode before ordering—analog-only DVRs won't recognize HD-TVI signals, and IP-only NVRs won't accept coax input at all. This is a common gotcha on mixed-generation sites.
• PTZ control latency over coax is noticeably slower than IP PTZ on LAN—RS-485 command transit time plus DVR processing means pan/tilt joystick response lags 500–800ms. For active threat tracking or dynamic incident response, this lag is annoying. For scheduled perimeter sweeps and preset recall, it's invisible. Know your use case before specifying.
• Preset and tour support depends on DVR firmware. Digital Watchdog DVRs expose all 240 presets and 8 auto-scan tours. Hikvision and Uniview equivalents may support only 32 presets and no tours. Test with your specific DVR hardware in a lab environment before committing to a 16-unit deployment.
• Motorized focus adds complexity to installation. The 4.7–94mm vari-focal must be manually focused at extremes of zoom range during commissioning; auto-focus thereafter keeps adjustment automatic. Budget 10 minutes per camera for focus calibration. On pole-mounted installations 20+ feet high, use a remote joystick or DVR interface to focus—do not climb to manually adjust.
• IK10 impact rating and polycarbonate dome are robust, but the aluminum PTZ pan-tilt mechanism is precision servo gear—avoid direct pressure or impact on the pan ring during installation. Drop testing is not recommended; treat the mechanism as finished goods from arrival to final mounting.

The DWC-PTZ220XW is the right fit for integrators managing mature analog or HD-TVI sites that need motorized PTZ capability without platform upheaval. On IP-native or greenfield deployments, it introduces unnecessary hybrid complexity. For a deeper look at Digital Watchdog's coax and hybrid camera portfolios, visit the Digital Watchdog catalog.
