Digital Watchdog DWC-XSBE05Mi vs Hanwha XNB-8000: Specification Comparison
This comparison evaluates two 5MP outdoor bullet IP cameras aimed at professional security integrators: the Digital Watchdog DWC-XSBE05Mi and the Hanwha XNB-8000. Both deliver 2560×1920-class resolution at up to 30fps, carry IP67/weatherproof ratings, support PoE, and conform to ONVIF. Key differentiators include sensor size, lens configuration, built-in IR, low-light performance, analytics depth, and platform ecosystem. Neither product is a PTZ; both are fixed-mount bullets intended for perimeter and area surveillance in outdoor environments.
In This Guide
How do the imaging specs compare?

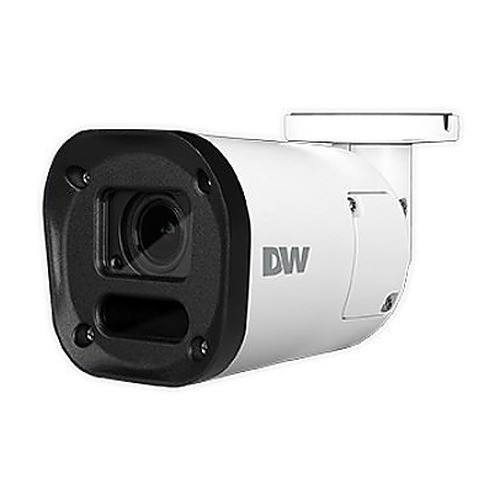

The DWC-XSBE05Mi uses a 1/2.8" 5MP CMOS sensor with a motorized varifocal lens (2.7–13.5mm, 5× optical zoom, P-iris, auto-focus) and built-in Smart IR™ rated to 120 ft. Its minimum illumination is 0.04 lux in color and 0.0 lux in B/W, and it carries True WDR at 120 dB with Smart DNR™ 3D noise reduction. The varifocal range gives installers a 98.3°–31.6° horizontal field of view without a separate lens purchase.

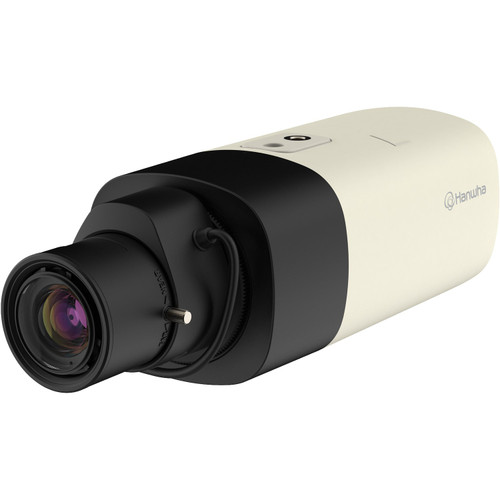

The Hanwha XNB-8000 uses a larger 1/1.8" 6MP CMOS sensor (outputting at 5MP), which provides a larger photosensitive area. Its minimum illumination is 0.07 lux color / 0.007 lux B/W. The XNB-8000 is a box-style bullet with C/CS-mount accepting interchangeable lenses; no lens or IR illuminator is included, requiring separate procurement. WDR is also rated at 120 dB with SSNRV noise reduction and built-in gyro-based digital image stabilization, which the DWC-XSBE05Mi does not list in its specifications.
What about installation and environment?
The DWC-XSBE05Mi is a self-contained bullet camera rated IP67 and IK10, housed in aluminum die-cast, operating from -20°C to +50°C (-4°F to 122°F). It draws up to 8.8W and is specified as PoE Class 1, or 12V DC. The camera includes a built-in IR illuminator, alarm I/O (1 in / 1 out), audio I/O (1 in / 1 out), and weighs 0.97 kg. Mounting accessories are sold separately.
The Hanwha XNB-8000 is a compact box-format bullet (73.1×66.6×147.8mm, 420g / 0.93 lb) rated for outdoor weatherproof use; no IK impact rating is published in the supplied specifications. It operates from -10°C to +55°C (+14°F to +131°F), accepts PoE IEEE 802.3af Class 3, 24VAC, or 12VDC, and draws up to 8.5W. The C/CS-mount design requires a separately purchased lens and, if IR is needed, a separate illuminator. It adds RS-485 serial interface and digital image stabilization not found on the DWC-XSBE05Mi. Its upper temperature ceiling (+55°C) is 5°C higher than the DWC-XSBE05Mi (+50°C).
Which fits your VMS and analytics better?
The DWC-XSBE05Mi supports ONVIF and is optimized for DW Spectrum® IPVMS, with deep-learning analytics covering object tracking, intrusion, line-crossing, zone detection, counting, dwell, and tailgating — all edge-resident. It supports triple streaming (H.265/H.264/MJPEG), SNMPv1/v2/v3, 802.1X, and up to 1TB microSD (single slot). Audio compression is G.711 only.
The Hanwha XNB-8000 supports ONVIF Profile S/G/T, Wisenet open platform, and SUNAPI (HTTP API), providing broader VMS integration hooks. Its analytics include loitering, directional detection, fog detection, digital auto-tracking, sound classification, and handover — all edge-resident. It supports up to 10 simultaneous stream profiles (vs. 3 on the DWC-XSBE05Mi), dual microSD slots up to 512GB total (vs. single slot up to 1TB on the DWC-XSBE05Mi), PPPoE, IPv6, IGMP, SRTP, LLDP, and G.726 audio compression in addition to G.711. WiseStream II smart codec is available for bandwidth optimization. Cybersecurity features include encrypted firmware and firmware protection, which are not listed in the DWC-XSBE05Mi specifications.
Which should you choose: the DWC-XSBE05Mi or the XNB-8000?
Our take: The DWC-XSBE05Mi is the stronger choice when a self-contained, all-in-one outdoor bullet with built-in IR illumination, varifocal motorized zoom, and IK10 vandal resistance is required without additional lens or illuminator procurement. Its 120-ft Smart IR™, 5× optical zoom (2.7–13.5mm), and IK10 aluminum housing are included at purchase, while the XNB-8000 requires separate lens and IR sourcing to reach equivalent capability. However, the Hanwha XNB-8000 holds three concrete spec advantages: its 1/1.8" sensor is physically larger than the DWC-XSBE05Mi's 1/2.8", providing greater light-gathering area; it supports up to 10 simultaneous stream profiles versus 3; and it accepts 24VAC and IPv6 in addition to PoE, broadening infrastructure compatibility. The XNB-8000 also carries a 5-year longer upper operating temperature (+55°C vs. +50°C). Choose the XNB-8000 for lens-flexible box deployments on Wisenet or multi-VMS platforms where IPv6, analog power, or extensive stream profiles are required.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Digital Watchdog DWC-XSBE05Mi | Hanwha XNB-8000 |
|---|---|---|
| Resolution | 5MP (2592×1944) | 5MP (2560×1920) |
| Image Sensor | 1/2.8" 5MP CMOS | 1/1.8" 6MP CMOS |
| Lens / Focal Length | 2.7–13.5mm motorized varifocal (included) | C/CS-mount; lens sold separately |
| Min. Illumination (Color) | 0.04 lux | 0.07 lux |
| Min. Illumination (B/W) | 0.0 lux | 0.007 lux |
| IR Range | 120 ft Smart IR (built-in) | — (no built-in IR) |
| WDR | True WDR 120 dB | 120 dB |
| Max Frame Rate | 30fps | 30fps |
| Video Compression | H.265, H.264, MJPEG | H.265, H.264, MJPEG |
| Simultaneous Streams | 3 (3rd MJPEG only) | Up to 10 profiles |
| IP Rating | IP67 | Weatherproof (IP class not published) |
| IK / Impact Rating | IK10 | — (not published) |
| Operating Temperature | -20°C to +50°C (-4°F to 122°F) | -10°C to +55°C (+14°F to +131°F) |
| Power Input / PoE Class | 12V DC; PoE Class 1 | PoE Class 3 (IEEE 802.3af); 24VAC; 12VDC |
| Power Consumption (Max) | 8.8W | 8.5W |
| Edge Storage | MicroSD/SDHC/SDXC; 1 slot; up to 1TB | MicroSD/SDHC/SDXC; 2 slots; up to 512GB |
| Audio | 1× in / 1× out; G.711 | Mic in / line in / built-in mic; line out; G.711 and G.726 |
| Alarm I/O | 1 in / 1 out | 1 in / 1 out |
| Analytics | Deep learning: intrusion, counting, dwell, tailgating, object tracking | Loitering, directional, fog detection, auto-tracking, sound classification, handover |
| ONVIF | ONVIF | ONVIF Profile S/G/T |
| Dimensions | 197.5×86mm (7.77"×3.38") | 73.1×66.6×147.8mm (2.88"×2.62"×5.82") |
| Weight | 0.97 kg (2.13 lb) | 420g (0.93 lb) |
| Warranty | 5 years | 3 years |
Frequently Asked Questions
Which should you choose: the DWC-XSBE05Mi or the XNB-8000?
The DWC-XSBE05Mi is the stronger choice when a self-contained, all-in-one outdoor bullet with built-in IR illumination, varifocal motorized zoom, and IK10 vandal resistance is required without additional lens or illuminator procurement. Its 120-ft Smart IR™, 5× optical zoom (2.7–13.5mm), and IK10 aluminum housing are included at purchase, while the XNB-8000 requires separate lens and IR sourcing to reach equivalent capability. However, the Hanwha XNB-8000 holds three concrete spec advantages: its 1/1.8" sensor is physically larger than the DWC-XSBE05Mi's 1/2.8", providing greater light-gathering area; it supports up to 10 simultaneous stream profiles versus 3; and it accepts 24VAC and IPv6 in addition to PoE, broadening infrastructure compatibility. The XNB-8000 also carries a 5-year longer upper operating temperature (+55°C vs. +50°C). Choose the XNB-8000 for lens-flexible box deployments on Wisenet or multi-VMS platforms where IPv6, analog power, or extensive stream profiles are required.
Is the DWC-XSBE05Mi or XNB-8000 better for low light?
The XNB-8000 has a larger 1/1.8" sensor versus the DWC-XSBE05Mi's 1/2.8" sensor, meaning more light-gathering area. The XNB-8000 specs a B/W minimum illumination of 0.007 lux; the DWC-XSBE05Mi lists 0.0 lux B/W. Critically, the DWC-XSBE05Mi includes built-in IR to 120 ft, making it effectively a zero-lux camera without a separate illuminator, while the XNB-8000 requires an external IR source to illuminate the scene.
Does the XNB-8000 include a lens and IR illuminator?
No. The XNB-8000 is a C/CS-mount box camera; the lens must be purchased separately and no IR illuminator is built in. The DWC-XSBE05Mi includes a motorized 2.7–13.5mm varifocal lens with auto-focus and a 120-ft Smart IR™ illuminator as part of the unit.
Which camera supports more simultaneous video streams?
The Hanwha XNB-8000 supports up to 10 simultaneous stream profiles. The Digital Watchdog DWC-XSBE05Mi supports triple streaming (3 streams), with the third stream limited to MJPEG. For deployments requiring many concurrent viewers or combined recording and live-view sessions, the XNB-8000 has a clear specification advantage.
