Digital Watchdog D4883WTIRW vs Digital Watchdog DWC-XSDE08Mi: Specification Comparison
Both the Digital Watchdog DWC-D4883WTIRW and DWC-XSDE08Mi are 8MP (4K-class) fixed IP dome cameras from the same manufacturer, making them genuine cross-shop candidates. The D4883WTIRW targets indoor environments with Star-Light low-light technology and analog-hybrid signal outputs, while the DWC-XSDE08Mi is built for outdoor deployment with embedded AI analytics, vandal resistance, and a longer IR range. This comparison covers imaging performance, installation requirements, and VMS/analytics integration to help integrators choose the right unit for a given application.
In This Guide
How do the imaging specs compare?
Both cameras share the same 8MP active resolution footprint and identical minimum scene illumination figures — 0.09 lux in color and 0.0 lux in black-and-white — and both feature True WDR rated at 120dB. The sensor hardware differs, however: the D4883WTIRW uses a larger 1/1.8" CMOS, while the DWC-XSDE08Mi uses a 1/2.8" CMOS (listed as Star-Light Plus). Larger sensors typically collect more light per pixel, which is relevant at the margins of low-light performance, but both cameras spec the same minimum lux figures so a direct performance delta cannot be confirmed from the provided data alone.
Lens coverage diverges meaningfully. The D4883WTIRW offers a 3.6–10mm motorized varifocal with an HFOV of 98.4°–45.7°, while the DWC-XSDE08Mi covers 2.7–13.5mm with an HFOV of 90.3°–33.1° — a wider zoom ratio suitable for covering variable standoff distances. IR range also differs: the D4883WTIRW provides 70-foot Smart IR with up to 32× sense-up, whereas the DWC-XSDE08Mi extends to 100 feet. The D4883WTIRW supports 4K at 15fps and up to 4MP or 1080p at higher rates; the DWC-XSDE08Mi delivers full 4K (3840×2160) at 30fps across all resolutions. The D4883WTIRW adds P-iris and a gamma setting of 0.45 and 24 programmable privacy zones; the DWC-XSDE08Mi provides 16 privacy masks and adds anti-flicker and slow-shutter modes (up to ×10) not listed for the D4883WTIRW.
What about installation and environment?

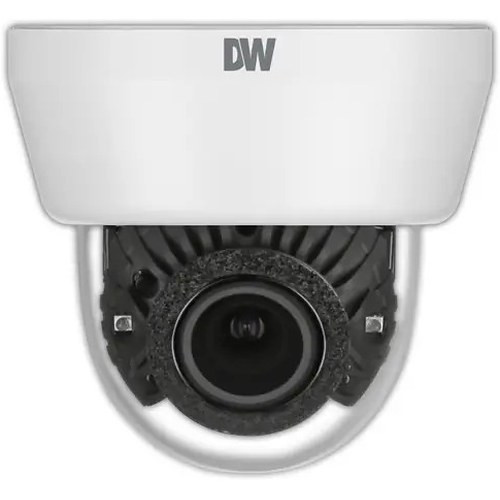

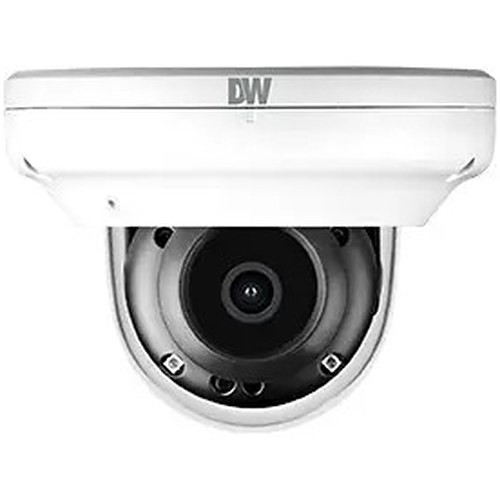

The D4883WTIRW is rated IP66 and is specified as an indoor dome in a plastic Snapit housing weighing 0.55 lbs (0.25 kg). Its operating temperature range is -4°F to 122°F (-20°C to 50°C). It accepts 12VDC or 24VAC power and draws a maximum of 7.15W; PoE is listed as a power option in the product attributes but 24VAC is explicitly stated in the power requirements spec. The DWC-XSDE08Mi carries IP67 and IK10 ratings in an aluminum die-cast vandal dome housing, making it suitable for outdoor and exposed indoor locations subject to physical impact. It weighs 1.14 lbs (0.51 kg) and shares the same -4°F to 122°F temperature range. Power is PoE (Class 3, 12.5W max) or DC12V (10.2W max); no 24VAC input is listed. The DWC-XSDE08Mi is the only model with a confirmed IK10 vandal rating; no IK rating is provided for the D4883WTIRW.
Which fits your VMS and analytics better?
The DWC-XSDE08Mi has a substantially richer network and analytics profile. It supports H.264, H.265, and MJPEG compression with dual-stream capability, CBR/VBR control, and a 100Kbps–25Mbps variable bitrate range over a 1Gbps (1000Base-T) interface. Supported protocols include ONVIF, RTSP, SNMP v1/v2/v3, HTTPS/TLS, 802.1x, and Zeroconf. Embedded AI analytics cover intrusion detection, line crossing, tailgating, dwell time, directional counting, appear/disappear, loitering, and logical rules. On-board storage extends to micro SD/SDHC/SDXC up to 1TB. Audio includes a built-in mic and a line output with G.711 compression, plus a dedicated alarm I/O (1 in, 1 out).
The D4883WTIRW's network specifications are not detailed in the provided spec data — no compression codecs, streaming protocols, bitrate range, or ONVIF compliance are listed. It includes a built-in microphone (no audio output listed) and supports UTC camera control. It also outputs analog CVBS/960H/HD-CVI/HD-TVI/HD-Analog signals, making it a hybrid analog-over-coax and IP camera — useful for mixed analog-IP upgrade scenarios where the DWC-XSDE08Mi, a pure IP device, would not serve. No edge storage, alarm I/O, or AI analytics are listed for the D4883WTIRW.
Which should you choose: the D4883WTIRW or the DWC-XSDE08Mi?
Our take: The DWC-XSDE08Mi is the stronger choice when deploying outdoors, requiring AI-driven edge analytics, or integrating into a modern IP-only VMS. It delivers full 4K at 30fps versus the D4883WTIRW's 4K-at-15fps ceiling, extends IR range from 70 to 100 feet, and adds IK10 vandal resistance and IP67 ingress protection against the D4883WTIRW's IP66 indoor rating. Its embedded AI analytics layer — covering intrusion, line crossing, tailgating, counting, and dwell — plus up-to-1TB edge storage and full alarm I/O have no equivalent in the D4883WTIRW's published specs. The D4883WTIRW is the appropriate choice for indoor analog-hybrid upgrade projects: it uniquely supports CVBS, 960H, HD-CVI, HD-TVI, and HD-TVI outputs alongside IP, carries a larger 1/1.8" sensor, and offers 24 privacy zones (versus 16). Choose the D4883WTIRW for mixed-infrastructure retrofits; choose the DWC-XSDE08Mi for greenfield outdoor or analytics-driven deployments.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Digital Watchdog D4883WTIRW | Digital Watchdog DWC-XSDE08Mi |
|---|---|---|
| Resolution (Active Pixels) | 8MP — 3864 × 2176 | 8MP — 3840 × 2160 |
| Image Sensor | 1/1.8" CMOS | 1/2.8" CMOS (Star-Light Plus) |
| Max Frame Rate at 4K | 15fps | 30fps |
| Lens / Focal Length | Motorized varifocal 3.6–10mm | Motorized varifocal 2.7–13.5mm |
| Horizontal FOV | 98.4° – 45.7° | 90.3° – 33.1° |
| Min. Illumination (Color / B&W) | 0.09 lux / 0.0 lux | 0.09 lux / 0.0 lux |
| IR Range | 70 ft Smart IR (32× sense-up) | 100 ft Smart IR |
| Wide Dynamic Range | True WDR 120dB | True WDR 120dB |
| Video Compression | Not specified in provided specs | H.264, H.265, MJPEG |
| IP Rating | IP66 | IP67 |
| IK / Vandal Rating | — | IK10 |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) | -4°F to 122°F (-20°C to 50°C) |
| Power Input / PoE Class | 12VDC / 24VAC / PoE (7.15W max) | PoE Class 3 (12.5W) / DC12V (10.2W) |
| Edge Storage | — | Micro SD/SDHC/SDXC up to 1TB |
| Audio | Built-in mic (input only) | Built-in mic + line output, G.711 |
| Alarm I/O | — | 1 input, 1 output |
| AI / Edge Analytics | — | Intrusion, line crossing, tailgating, counting, dwell, and more |
| Analog / Coax Output | CVBS, 960H, HD-CVI, HD-TVI, HD-Analog | — |
| Housing Material | Plastic (Snapit) | Aluminum die-casting |
| Environment Rating | Indoor | Outdoor |
| Weight | 0.55 lbs (0.25 kg) | 1.14 lbs (0.51 kg) |
| Warranty | 5 Year | 5 Year |
Frequently Asked Questions
Which should you choose: the D4883WTIRW or the DWC-XSDE08Mi?
The DWC-XSDE08Mi is the stronger choice when deploying outdoors, requiring AI-driven edge analytics, or integrating into a modern IP-only VMS. It delivers full 4K at 30fps versus the D4883WTIRW's 4K-at-15fps ceiling, extends IR range from 70 to 100 feet, and adds IK10 vandal resistance and IP67 ingress protection against the D4883WTIRW's IP66 indoor rating. Its embedded AI analytics layer — covering intrusion, line crossing, tailgating, counting, and dwell — plus up-to-1TB edge storage and full alarm I/O have no equivalent in the D4883WTIRW's published specs. The D4883WTIRW is the appropriate choice for indoor analog-hybrid upgrade projects: it uniquely supports CVBS, 960H, HD-CVI, HD-TVI, and HD-TVI outputs alongside IP, carries a larger 1/1.8" sensor, and offers 24 privacy zones (versus 16). Choose the D4883WTIRW for mixed-infrastructure retrofits; choose the DWC-XSDE08Mi for greenfield outdoor or analytics-driven deployments.
Is the DWC-D4883WTIRW or DWC-XSDE08Mi better for low-light performance?
Both cameras spec the same minimum illumination — 0.09 lux in color and 0.0 lux in black-and-white — so neither has a documented lux advantage over the other. The D4883WTIRW uses a larger 1/1.8" sensor (versus 1/2.8" on the DWC-XSDE08Mi), which can favor low-light capture, but the DWC-XSDE08Mi extends IR range to 100 feet versus 70 feet and adds slow-shutter modes (up to ×10) not listed for the D4883WTIRW. For longer-range IR coverage at night, the DWC-XSDE08Mi has a documented advantage.
Can the DWC-D4883WTIRW be used outdoors?
The D4883WTIRW is specified as an indoor dome with an IP66 rating and a plastic housing. IP66 provides protection against powerful water jets, which may suit covered or sheltered outdoor locations, but the camera is not listed with an IK vandal rating and its housing material is plastic rather than aluminum. The DWC-XSDE08Mi carries both IP67 and IK10 ratings in an aluminum die-cast vandal dome and is explicitly rated for outdoor use. For exposed outdoor deployments, the DWC-XSDE08Mi is the documented choice.
Does either camera work with analog or coax-based systems?
Yes — the DWC-D4883WTIRW supports CVBS, 960H, HD-CVI, HD-TVI, and HD-Analog outputs in addition to IP, making it compatible with hybrid analog-over-coax infrastructure. This is useful for phased migrations where existing coax runs are retained. The DWC-XSDE08Mi's provided specifications list no analog or coax signal outputs; it appears to be a pure IP camera. If backward compatibility with analog or HD-over-coax recorders is required, the D4883WTIRW is the only option between the two with that capability documented.
