Hanwha XNV-9083R vs i-PRO S85402-V2L: Specification Comparison
Both the Hanwha XNV-9083R and the i-PRO WV-S85402-V2L are 8MP outdoor fixed dome cameras with IR illumination, PoE+, IK10 impact resistance, and ONVIF compliance, aimed at installers and IT buyers who need high-resolution vandal-resistant surveillance. The Hanwha is a single-sensor 4K dome; the i-PRO is a dual-sensor design delivering 8MP combined from two 4MP sensors. This comparison examines imaging performance, physical installation, and VMS/analytics integration across both platforms using only published specifications.
In This Guide
How do the imaging specs compare?

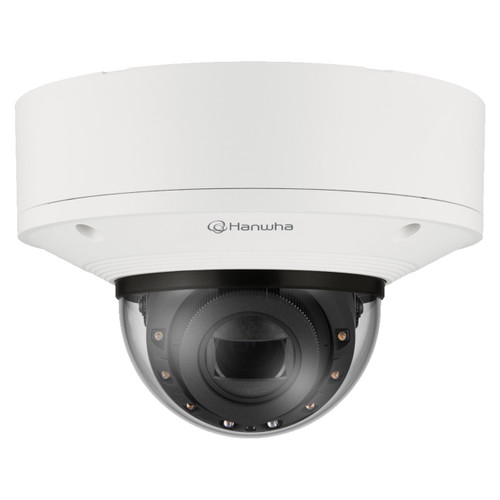

The XNV-9083R uses a single 1/1.8" progressive CMOS sensor at 3840×2160 (true 4K) with a maximum aperture of F1.3 at wide, minimum illumination of 0.04 Lux color and 0 Lux in IR mode, and extremeWDR rated at 120dB. Its 2.1× motorized varifocal lens spans 4.4–9.3mm with a 113° horizontal field of view at wide. WiseIR extends IR coverage to 50m. DORI identify distance reaches 17.7m at tele. The WV-S85402-V2L pairs two 1/2.7" CMOS sensors, each at 2688×1520 (4MP), for 8MP combined. Minimum illumination is 0.12 Lux (BW with IR LED), aperture is F2.0 at wide, and Super Dynamic WDR tops out at 108dB. The 2.5× optical zoom spans 2.9–7.3mm, with a 100° horizontal FOV at wide. IR range is rated at 40m in high mode. DORI identify at tele reaches 13.6m.
On noise reduction, the XNV-9083R employs AI-based WiseNR II and SSNR V, with built-in gyro-based digital image stabilization — a feature not listed for the WV-S85402-V2L. The i-PRO camera is powered by an Ambarella CV2 SoC and adds an extra digital zoom to 10.5× at 640×360, while the Hanwha's zoom tops at 2.1× optical with no digital zoom spec published. The XNV-9083R also lists lens distortion correction (LDC) and defog as discrete supported features; the i-PRO lists fog compensation (level 0–8) and adaptive black stretch (0–255) as distinct controls.
What about installation and environment?
Both cameras carry IP66/IP67 and NEMA 4X ratings and IK10 impact resistance. The XNV-9083R adds IP6K9K (ISO 20653) and its IK10 rating is specified as IK10+, indicating a margin above the standard. The i-PRO WV-S85402-V2L adds a wind resistance rating of up to 40 m/s (~89 mph) and NEMA TS 2 (2.2.7–2.2.9) compliance for traffic applications — neither is listed for the Hanwha. The i-PRO also specifies a Temish anti-condensation element; the XNV-9083R does not list an equivalent.
The XNV-9083R operates from -50°C to +55°C (storage to +60°C) and draws up to 22.5W via PoE+ (IEEE 802.3at, Class 4) or 12VDC. The WV-S85402-V2L operates from -40°C to +60°C (power-on from -20°C) at up to 22.2W via PoE+. The Hanwha's lower cold-start threshold (-50°C vs -20°C power-on for the i-PRO) is a material advantage in extreme-cold environments. Physically, the XNV-9083R is a round dome (ø180×125mm, 1900g) with a 3/4" M25 conduit entry; the i-PRO is a rectangular multi-sensor body (250×150×105mm, ~1800g). The i-PRO's dual-sensor geometry allows independent channel aiming (H -50° to +230°, V +10° to +105°, Yaw ±90°) versus the Hanwha's single-dome pan/tilt/rotate adjustment.
Which fits your VMS and analytics better?
Both cameras support ONVIF Profile S/G/T/M. The XNV-9083R adds SUNAPI and Wisenet SDK and lists a full protocol stack including SNMPv1/v2c/v3, MQTT, SRTP, LLDP, CDP, and IPv6. The i-PRO provides FIPS 140-2 Level 3 security — one level above the XNV-9083R's TPM 2.0 at FIPS 140-2 Level 2. The i-PRO also documents signed firmware; the Hanwha does not list this in its published specs. Both support 802.1X and HTTPS.
For edge analytics, the XNV-9083R lists AI object detection covering person, face, vehicle, and license plate; vehicle attribute classification (car, bus, truck, motorcycle, bicycle); virtual line crossing with direction; virtual area; DetectionShot; and business intelligence functions including people counting, queue management, and heatmap — all edge-resident. The i-PRO lists six AI video analytics types without enumerating them individually in the provided specs, plus AI sound classification covering gunshot, yell, vehicle horn, and glass break — the latter being a differentiator not listed for the Hanwha. On storage, the XNV-9083R provides two microSD slots supporting up to 512GB each (1TB total); the i-PRO specifies a single microSD slot up to 512GB. Audio inputs differ: the Hanwha offers one selectable mic/line input; the i-PRO provides three 3.5mm stereo jack mic inputs and supports full-duplex audio. The i-PRO has 3 alarm I/O terminals versus 2 on the Hanwha.
Which should you choose: the XNV-9083R or the S85402-V2L?
Our take: The XNV-9083R is the stronger choice when a single-sensor 4K image stream, superior low-light performance, and richer onboard AI analytics are the primary requirements; the WV-S85402-V2L is the better fit when dual-sensor field coverage, traffic-rated environmental compliance, or AI sound classification are needed. On imaging, the Hanwha's 1/1.8" sensor and F1.3 aperture achieve 0.04 Lux versus the i-PRO's 0.12 Lux at F2.0 — a 3× sensitivity advantage per published specs. WDR is 120dB on the Hanwha versus 108dB on the i-PRO. IR range is 50m versus 40m. For cold-climate installs, the Hanwha cold-starts at -50°C versus the i-PRO's -20°C power-on floor. The i-PRO counters with FIPS 140-2 Level 3 cryptographic security, NEMA TS 2 traffic compliance, 40 m/s wind resistance certification, dual-sensor independent aiming, three mic inputs, and AI sound classification — advantages that matter most in transportation, critical-infrastructure, and multi-zone coverage deployments on an i-PRO-integrated VMS.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Hanwha XNV-9083R | i-PRO S85402-V2L |
|---|---|---|
| Camera Type | Single-sensor fixed dome | Dual-sensor fixed dome |
| Resolution | 3840×2160 (8MP, single sensor) | 2688×1520 per sensor (4MP×2, 8MP combined) |
| Sensor Size | 1/1.8" CMOS | 2× 1/2.7" CMOS |
| Min. Illumination | 0.04 Lux color / 0 Lux IR | 0.12 Lux (BW, IR LED) |
| Max. Aperture (Wide) | F1.3 | F2.0 |
| WDR | extremeWDR 120dB | Super Dynamic 108dB |
| IR Range | 50m (WiseIR) | 40m (High mode) |
| Focal Length | 4.4–9.3mm (2.1× optical) | 2.9–7.3mm (2.5× optical) |
| H. Field of View | 113° (wide) – ~47° (tele) | 100° (wide) – 43° (tele) |
| DORI Identify (Tele) | 17.7m | 13.6m |
| Operating Temp | −50°C to +55°C | −40°C to +60°C (power-on: −20°C) |
| IP / Impact Rating | IP66/IP67/IP6K9K, IK10+, NEMA 4X | IP66/IP67, IK10, NEMA 4X |
| Wind Resistance | — | 40 m/s (~89 mph) |
| FIPS Security Level | FIPS 140-2 Level 2 (TPM 2.0) | FIPS 140-2 Level 3 |
| Edge Storage | 2× microSD, up to 1TB total (512GB×2) | 1× microSD, up to 512GB |
| Alarm I/O Terminals | 2 | 3 |
| Audio Inputs | 1× mic/line selectable | 3× 3.5mm stereo jack mic |
| AI Sound Classification | — | Gunshot, Yell, Vehicle horn, Glass break |
| Power Input / PoE Class | IEEE 802.3at Type 2, Class 4 — 22.5W max | IEEE 802.3at — 22.2W max |
| Warranty | 3-year | 3-year |
Frequently Asked Questions
Which should you choose: the XNV-9083R or the S85402-V2L?
The XNV-9083R is the stronger choice when a single-sensor 4K image stream, superior low-light performance, and richer onboard AI analytics are the primary requirements; the WV-S85402-V2L is the better fit when dual-sensor field coverage, traffic-rated environmental compliance, or AI sound classification are needed. On imaging, the Hanwha's 1/1.8" sensor and F1.3 aperture achieve 0.04 Lux versus the i-PRO's 0.12 Lux at F2.0 — a 3× sensitivity advantage per published specs. WDR is 120dB on the Hanwha versus 108dB on the i-PRO. IR range is 50m versus 40m. For cold-climate installs, the Hanwha cold-starts at -50°C versus the i-PRO's -20°C power-on floor. The i-PRO counters with FIPS 140-2 Level 3 cryptographic security, NEMA TS 2 traffic compliance, 40 m/s wind resistance certification, dual-sensor independent aiming, three mic inputs, and AI sound classification — advantages that matter most in transportation, critical-infrastructure, and multi-zone coverage deployments on an i-PRO-integrated VMS.
Is the XNV-9083R or WV-S85402-V2L better for low-light performance?
The XNV-9083R has a published minimum illumination of 0.04 Lux in color mode (0 Lux in IR) versus 0.12 Lux for the WV-S85402-V2L, and its F1.3 maximum aperture is wider than the i-PRO's F2.0. On published specs, the Hanwha has a measurable low-light advantage.
Which camera covers more physical area?
The WV-S85402-V2L is a dual-sensor camera whose two independent lenses can be aimed across a wider combined zone (H -50° to +230°, Yaw ±90° per channel), making it better suited to covering intersections or L-shaped corridors. The XNV-9083R is a single-sensor dome with up to 113° horizontal FOV, better suited to a single focused zone.
Does either camera support on-board storage redundancy?
The XNV-9083R provides two microSD card slots supporting up to 512GB each (1TB combined), which allows mirrored or extended local recording. The WV-S85402-V2L specifies a single microSD slot up to 512GB, with no dual-slot redundancy listed in its published specifications.
