Digital Watchdog D4283WD vs Digital Watchdog V4283WD: Specification Comparison
Both the DWC-D4283WD and DWC-V4283WD are Digital Watchdog analog-over-coax dome cameras sharing a 2.1MP 1/3" CMOS sensor, 2.8–12mm motorized vari-focal lens, and HD-over-coax multi-format signal output. The comparison centers on form-factor and environmental hardening: the D4283WD is a standard indoor plastic dome, while the V4283WD is an aluminum vandal dome rated for outdoor and high-impact environments. Buyers cross-shopping these two are typically deciding between an interior deployment and an exposed or abuse-prone location.
In This Guide
How do the imaging specs compare?
Both cameras share an identical imaging core: 2.1MP/1080p 1/3" progressive-scan CMOS sensor with 1944×1092 active pixels, 0.03 lux minimum color illumination, Star-Light sense-up from ×2 to ×32, true 100dB WDR, Smart DNR 3D digital noise reduction, 1/30–1/30000 shutter speed range, and a 2.8–12mm motorized vari-focal lens covering 91°–28° HFOV and 46.8°–19.6° VFOV with auto-focus and P-iris. Frame rate is listed as variable on both; neither spec sheet provides a discrete maximum fps figure.
The D4283WD spec sheet notes a built-in microphone with 50Hz–10KHz frequency response and −38dB ±2dB sensitivity. The V4283WD spec sheet does not list audio sensitivity or frequency response figures, though a separate enrichment field on that model references two-way audio and a built-in mic. IR range is not stated in the D4283WD spec; the V4283WD enrichment field cites up to 10m typical. Both support 16 programmable privacy masks, BLC, de-fog, DRC, motion detection, mirror/flip, and gamma adjustment from 0.45 to 0.75.
What about installation and environment?

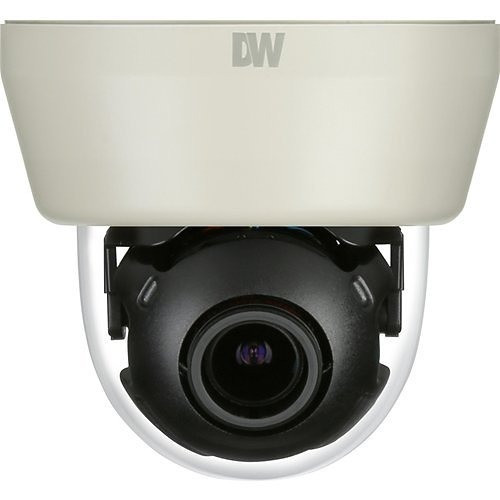

Environmental hardening is the primary differentiator. The D4283WD carries an IP66 rating (dust-tight, protected against powerful water jets) and is housed in plastic with a Snapit™ chassis; it is classified for indoor use. It measures 107.8×99.1mm and weighs 0.24kg. The V4283WD carries an IP68 rating (dust-tight, protected against continuous immersion) and an IK10 vandal resistance rating, housed in aluminum die-cast construction; it is classified for outdoor use. It measures 139×121.8mm and weighs 0.93kg—nearly four times heavier—reflecting the ruggedized enclosure.
Both cameras share the same operating temperature range (−40°F to 122°F / −40°C to 50°C), 10–90% non-condensing humidity tolerance, 24V AC / 12VDC power input, PoE Class 2, 2.3W maximum power draw, AWG #18 cable type, and multi-format HD-over-coax signal compatibility (CVBS, 960H, HD-Analog, HD-CVI, HD-TVI). Both list mounting accessories as optional and sold separately. The D4283WD spec lists Wall, Ceiling, and Rack mount types; the V4283WD spec lists Wall and Rack. Both carry a 5-year warranty.
Which fits your VMS and analytics better?
Signal-protocol integration is identical for both: Pelco C, Pelco D, and UTP built-in camera control; CVBS/960H, HD-Analog, HD-CVI, HD-TVI, and HD-over-coax output. The V4283WD enrichment fields note ONVIF compliance and H.264/MJPEG compression; these fields are absent from the D4283WD spec sheet, so ONVIF and compression format support cannot be confirmed for Product A from the provided data. Both list microSD storage support and Windows operating system compatibility in their spec fields, though microSD is a standard field entry rather than a detailed specification.
The D4283WD spec explicitly documents a built-in microphone (1 audio input, 50Hz–10KHz, −38dB ±2dB) and 1 alarm output. The V4283WD spec lists 1 alarm output but does not document audio sensitivity or frequency response in its core spec fields; the enrichment layer references two-way audio and a built-in mic without measurement values. Neither camera spec provides edge analytics (e.g., line crossing, intrusion detection) beyond motion detection and privacy masking.
Which should you choose: the D4283WD or the V4283WD?
Our take: The V4283WD is the stronger choice when the deployment site is outdoors, subject to physical abuse, or exposed to water ingress beyond jet spray, because it adds IK10 impact resistance, upgrades waterproofing from IP66 to IP68, and uses aluminum die-cast construction versus plastic—all at the same 2.3W power draw and identical imaging specifications. Conversely, the D4283WD is the appropriate choice for indoor, controlled environments where budget or ceiling aesthetics favor a lighter (0.24kg vs 0.93kg), lower-profile plastic dome with a documented built-in microphone spec (−38dB ±2dB, 50Hz–10KHz) that is not quantified on the V4283WD sheet. Both cameras share sensor, lens, WDR, low-light, and coax-protocol specifications exactly. Buyers should confirm ONVIF support and compression format directly with Digital Watchdog for the D4283WD before committing to an IP-VMS integration, as those fields are only documented for the V4283WD in the provided specifications.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Digital Watchdog D4283WD | Digital Watchdog V4283WD |
|---|---|---|
| SKU | DWC-D4283WD | DWC-V4283WD |
| Resolution | 2.1MP / 1080p (1944×1092) | 2.1MP / 1080p (1944×1092) |
| Image Sensor | 1/3" CMOS, progressive scan | 1/3" CMOS, progressive scan |
| Lens / Focal Length | 2.8–12mm motorized vari-focal, auto-focus, P-iris | 2.8–12mm motorized vari-focal, auto-focus, P-iris |
| HFOV / VFOV | 91°–28° / 46.8°–19.6° | 91°–28° / 46.8°–19.6° |
| Min. Illumination (Color) | 0.03 lux | 0.03 lux |
| Star-Light Sense-Up | ×2–×32 | ×2–×32 |
| WDR | True WDR 100dB | True WDR 100dB |
| IR Range | — (not specified) | Up to 10m (typical) |
| IP Rating | IP66 | IP68 |
| IK / Impact Rating | — (not specified) | IK10 |
| Housing Material | Plastic (Snapit™) | Aluminum die-cast (Snapit™) |
| Environment Rating | Indoor | Outdoor |
| Operating Temperature | −40°F to 122°F (−40°C to 50°C) | −40°F to 122°F (−40°C to 50°C) |
| Power Input | 24V AC / 12VDC, PoE Class 2, 2.3W max | 24V AC / 12VDC, PoE Class 2, 2.3W max |
| Signal Technology | CVBS/960H, HD-Analog, HD-CVI, HD-TVI, HD over Coax | CVBS, 960H, HD-Analog, HD-CVI, HD-TVI, HD-Coax |
| Audio | Built-in mic; 50Hz–10KHz; −38dB ±2dB; 1 in | Built-in mic referenced; sensitivity/response not specified |
| Alarm I/O | 1 output | 1 output |
| ONVIF | — (not specified in provided specs) | Yes (per enrichment field) |
| Video Compression | — (not specified in provided specs) | H.264; MJPEG (per enrichment field) |
| Edge Storage | microSD (listed) | microSD (listed) |
| Privacy Masks | 16 programmable | 16 programmable |
| Dimensions (H×W) | 107.8×99.1mm (4.24"×3.9") | 139×121.8mm (5.47"×4.79") |
| Weight | 0.24kg (0.53 lbs) | 0.93kg (2.05 lbs) |
| Warranty | 5 years | 5 years |
Frequently Asked Questions
Which should you choose: the D4283WD or the V4283WD?
The V4283WD is the stronger choice when the deployment site is outdoors, subject to physical abuse, or exposed to water ingress beyond jet spray, because it adds IK10 impact resistance, upgrades waterproofing from IP66 to IP68, and uses aluminum die-cast construction versus plastic—all at the same 2.3W power draw and identical imaging specifications. Conversely, the D4283WD is the appropriate choice for indoor, controlled environments where budget or ceiling aesthetics favor a lighter (0.24kg vs 0.93kg), lower-profile plastic dome with a documented built-in microphone spec (−38dB ±2dB, 50Hz–10KHz) that is not quantified on the V4283WD sheet. Both cameras share sensor, lens, WDR, low-light, and coax-protocol specifications exactly. Buyers should confirm ONVIF support and compression format directly with Digital Watchdog for the D4283WD before committing to an IP-VMS integration, as those fields are only documented for the V4283WD in the provided specifications.
Is the D4283WD or V4283WD better for low light?
Both cameras are identical in low-light performance based on the provided specifications: each uses the same 2.1MP 1/3" CMOS sensor, achieves 0.03 lux minimum color illumination, and supports Star-Light sense-up from ×2 to ×32. Neither has a low-light advantage over the other.
Can the D4283WD be used outdoors?
The D4283WD is rated IP66 (dust-tight, jet-water resistant) but is classified as an indoor dome in the provided specifications and uses a plastic housing. The V4283WD is the outdoor-rated model with IP68 waterproofing, IK10 vandal resistance, and aluminum die-cast construction. For outdoor or exposed installations, the V4283WD is the specified choice.
Do both cameras support the same coax signal formats?
Yes. Both support CVBS, 960H, HD-Analog, HD-CVI, HD-TVI, and HD-over-coax signal technologies, and both include Pelco C, Pelco D, and UTP built-in camera control. Either camera can replace or complement the other in an existing HD-over-coax system without changing the recorder or cabling infrastructure.
