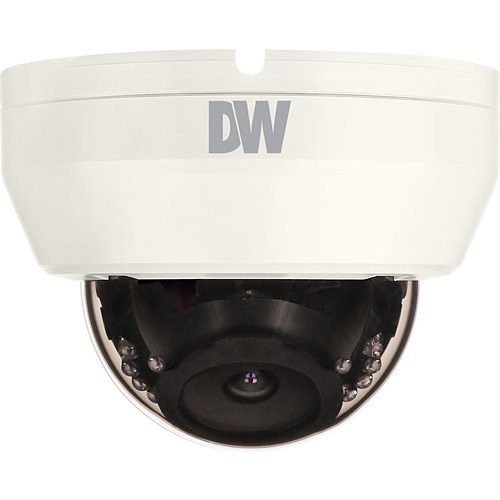

Digital Watchdog D3263WTIR vs Digital Watchdog V4283WD: Specification Comparison
Both the Digital Watchdog DWC-D3263WTIR and DWC-V4283WD are 2MP (1080p) analog-over-coax dome cameras sharing the same 1/3" CMOS sensor and vari-focal 2.8–12mm lens range. They are genuinely cross-shoppable for integrators choosing between an indoor IR dome and a hardened outdoor vandal dome within the same resolution class and signal-technology family (CVBS/960H, HD-Analog, HD-CVI, HD-TVI). The key differentiators are environmental rating, motorized vs. manual zoom, IR range, power requirements, and enclosure construction.
In This Guide
How do the imaging specs compare?
Both cameras share identical core imaging hardware: a 2.1MP/1080p 1/3" progressive-scan CMOS sensor with 1944×1092 active pixels, a 2.8–12mm vari-focal lens covering 91° to 28° HFOV, True WDR at 100dB, Smart DNR 3D noise reduction, Sense-Up from x2 to x32, and a shutter range of 1/30 to 1/30000. Color minimum illumination is 0.03 lux on both models. The D3263WTIR adds a B/W (IR) floor of 0.0 lux, explicitly spec'd; the V4283WD's B/W floor is not stated in the provided specifications.
The most meaningful imaging difference is lens actuation. The V4283WD adds auto-focus and motorized zoom (P-iris on both), eliminating the need to physically touch the lens during commissioning or remote re-aiming—an operational advantage at height or in finished ceilings. The D3263WTIR's lens is manually vari-focal with P-iris only. IR range diverges sharply: the D3263WTIR specifies 100 feet (approximately 30 m) Smart IR, while the V4283WD's provided specifications state only 'up to 10 m (typical).' Vertical FOV differs slightly—47.8°–18.7° on the D3263WTIR vs. 46.8°–19.6° on the V4283WD—a minor real-world delta.
What about installation and environment?
Environmental hardening separates these two cameras decisively. The V4283WD is rated IP68 (full submersion) and IK10 (highest impact rating per IEC 62262), with an aluminum die-cast Snapit housing—specified for outdoor deployment down to -40°F (-40°C). The D3263WTIR carries an IP66 rating (dust-tight, high-pressure water jet resistant) in a plastic indoor dome housing, rated to -4°F (-20°C) minimum. For any outdoor, perimeter, or high-vandalism location, only the V4283WD meets the enclosure requirement.
Power requirements differ and require attention at design time. The D3263WTIR accepts 12V DC or 24V AC and draws up to 4.35W; the spec sheet lists PoE as a power type but does not specify a PoE class or IEEE standard in the provided data. The V4283WD is spec'd for 24V AC and 12V DC with a maximum draw of only 2.3W, and its provided specifications list PoE Class 2 (802.3af) explicitly. Physical size and weight differ substantially: the D3263WTIR measures 4.72" H × 3.51" W and weighs 0.50 lbs, while the V4283WD measures 5.47" H × 4.79" W and weighs 2.05 lbs—relevant for junction box selection and ceiling load. Both ship with mounting accessories sold separately, and both support wall and ceiling (rack listed for D3263WTIR; wall listed for V4283WD).
Which fits your VMS and analytics better?
The V4283WD's provided specifications include explicit ONVIF compliance, H.264 and MJPEG compression, built-in two-way audio with microphone, and onboard microSD storage—features not listed in the D3263WTIR's provided specifications. If your VMS integration, edge recording redundancy, or audio verification workflows depend on any of these capabilities, the V4283WD is the only model confirmed to support them based on available data. Both cameras share Pelco C/D PTZ control and UTP built-in, 16 programmable privacy masks, motion detection, de-fog, DRC, BLC, and Star-Light Sense-Up—so analytics and image-enhancement feature parity is high at the camera-intelligence layer. For the D3263WTIR, ONVIF status, compression formats, audio, and edge storage are not confirmed in the provided specifications and should be verified against the full datasheet before specifying.
Which should you choose: the D3263WTIR or the V4283WD?
Our take: The DWC-V4283WD is the stronger choice when the installation site is outdoors, subject to vandalism, or requires network-VMS integration with onboard audio and edge storage. Its IP68/IK10 aluminum enclosure, -40°F cold-temperature rating, motorized auto-focus lens, PoE Class 2 (802.3af) compliance, ONVIF support, H.264/MJPEG compression, built-in microphone, and microSD slot address a broader set of professional deployment requirements. The DWC-D3263WTIR is the appropriate choice for protected indoor environments where a longer IR throw (100 ft vs. 10 m spec'd on the V4283WD) is the priority, the installation budget favors a lighter plastic dome, and signal-technology flexibility (12V DC or 24V AC accepted) simplifies retrofit wiring. Both carry a 5-year warranty and share identical sensor resolution and WDR performance.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Digital Watchdog D3263WTIR | Digital Watchdog V4283WD |
|---|---|---|
| Resolution | 2.1MP / 1080p | 2.1MP / 1080p |
| Active Pixels | 1944 × 1092 | 1944 × 1092 |
| Image Sensor | 1/3" CMOS, Progressive Scan | 1/3" CMOS, Progressive Scan |
| Lens / Focal Length | Vari-focal 2.8–12mm, Manual, P-iris | Vari-focal 2.8–12mm, Motorized AF, P-iris |
| HFOV Range | 91° – 28° | 91° – 28° |
| Min Illumination (Color / B&W) | 0.03 lux (color) / 0.0 lux (B/W) | 0.03 lux (color) / Not specified |
| IR Range | 100 ft (30 m) Smart IR | Up to 10 m (typical) |
| WDR | True WDR 100dB | True WDR 100dB |
| Signal Technology | CVBS/960H, HD-Analog, HD-CVI, HD-TVI | CVBS, 960H, HD-Analog, HD-CVI, HD-TVI, HD-Coax |
| IP Rating | IP66 | IP68 |
| IK / Impact Rating | — | IK10 |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) | -40°F to 122°F (-40°C to 50°C) |
| Housing Material | Plastic | Aluminum die-cast, Snapit housing |
| Power Input | 12V DC or 24V AC | 12V DC or 24V AC |
| Max Power Draw | 4.35W | 2.3W |
| PoE Class | Not specified in provided data | Class 2 (802.3af) |
| ONVIF | Not specified in provided data | Yes |
| Video Compression | Not specified in provided data | H.264, MJPEG |
| Audio | Not specified in provided data | Two-way, built-in mic |
| Edge Storage | Not specified in provided data | microSD |
| Privacy Masks | 16 programmable | 16 programmable |
| Dimensions (H × W) | 4.72" × 3.51" (120 × 89.4 mm) | 5.47" × 4.79" (139 × 121.8 mm) |
| Weight | 0.50 lbs (0.226 kg) | 2.05 lbs (0.93 kg) |
| Environment Rating | Indoor | Outdoor |
| Warranty | 5 Year | 5 Year |
Frequently Asked Questions
Which should you choose: the D3263WTIR or the V4283WD?
The DWC-V4283WD is the stronger choice when the installation site is outdoors, subject to vandalism, or requires network-VMS integration with onboard audio and edge storage. Its IP68/IK10 aluminum enclosure, -40°F cold-temperature rating, motorized auto-focus lens, PoE Class 2 (802.3af) compliance, ONVIF support, H.264/MJPEG compression, built-in microphone, and microSD slot address a broader set of professional deployment requirements. The DWC-D3263WTIR is the appropriate choice for protected indoor environments where a longer IR throw (100 ft vs. 10 m spec'd on the V4283WD) is the priority, the installation budget favors a lighter plastic dome, and signal-technology flexibility (12V DC or 24V AC accepted) simplifies retrofit wiring. Both carry a 5-year warranty and share identical sensor resolution and WDR performance.
Is the DWC-D3263WTIR or DWC-V4283WD better for low-light performance?
Both cameras reach a 0.03 lux color minimum and offer Star-Light Sense-Up from x2 to x32. The D3263WTIR additionally specifies a 0.0 lux B/W (IR) floor in the provided data, and its IR illuminator reaches 100 feet—significantly farther than the V4283WD's specified 'up to 10 m (typical).' For long-corridor or large-area indoor low-light coverage, the D3263WTIR's IR range is the stronger spec. The V4283WD's B/W floor is not stated in the provided specifications.
Can the DWC-V4283WD be installed outdoors where the DWC-D3263WTIR cannot?
Yes. The V4283WD is rated IP68 (continuous submersion) and IK10 (highest impact resistance) with an aluminum die-cast housing and an operating temperature down to -40°F (-40°C), making it suitable for outdoor perimeter, rooftop, and high-vandalism locations. The D3263WTIR carries an IP66 rating in a plastic indoor dome housing with a cold-temperature limit of -4°F (-20°C). Based on provided specifications, the D3263WTIR is not rated for outdoor or high-vandalism deployment.
Does either camera support ONVIF or onboard storage for VMS redundancy?
The DWC-V4283WD's provided specifications confirm ONVIF compliance, H.264 and MJPEG compression, built-in two-way audio, and microSD edge storage. These features are not listed in the DWC-D3263WTIR's provided specifications; buyers should verify against Digital Watchdog's full datasheet for that model before specifying it in an ONVIF or edge-recording architecture.
