APC by Schneider Electric BE425M vs APC by Schneider Electric BE425M-LM: Specification Comparison
Both products are 425 VA / 255 W standby (offline) UPS units from APC by Schneider Electric, designed for basic desktop or small-office power protection on a 120 V North American circuit. The BE425M is the standard North American retail SKU, while the BE425M-LM is a Latin America market variant of the same Back-UPS ES 6-outlet platform. Buyers evaluating these units are typically seeking entry-level battery backup for a workstation, network switch, or home office gear. This comparison examines runtime and battery characteristics, output quality and protection, and physical/environmental specifications.
In This Guide
- Which model delivers more usable runtime and battery capacity?
- How do the two units differ in output waveform, surge protection, and outlet layout?
- What do the physical specifications and certifications reveal about installation fit?
- Which should you choose: the BE425M or the BE425M-LM?
- Side-by-Side Specs
- FAQ
Which model delivers more usable runtime and battery capacity?
The BE425M provides explicit runtime data: 2 minutes at full load (425 VA / 255 W) and 10 minutes at half load (approximately 212 VA / 127 W), backed by a single lead-acid battery rated at 47 VAh with an 8-hour recharge time. These figures give installers a concrete sizing baseline for attached load calculations.
The BE425M-LM specifications do not include any runtime figures, battery capacity (VAh), recharge time, number of batteries, or battery chemistry. Buyers cannot determine how long the BE425M-LM will sustain a connected load from the provided spec sheet alone. For any deployment where runtime under outage conditions is a design requirement, the BE425M is the only model with documented data to work from.
How do the two units differ in output waveform, surge protection, and outlet layout?
Both units share a 425 VA / 255 W output capacity, 120 V nominal output, a 6-outlet NEMA 5-15R configuration, and a 180-joule surge energy rating. Transfer time on the BE425M is specified at 6 to 10 ms, which is within the tolerance of most IT equipment power supplies. The BE425M-LM does not specify a transfer time.
The most notable difference between the two is waveform type. The BE425M produces a stepped approximation to a sinewave during battery operation, while the BE425M-LM produces a square wave. Active PFC power supplies found in many modern workstations and servers can be sensitive to non-sinusoidal waveforms; a square wave is the least compatible output type. Neither unit is rated for active PFC loads, but the stepped approximation is generally considered preferable to a pure square wave for sensitive electronics.
The BE425M also documents its outlet breakdown explicitly: 4 outlets are battery-backed and surge-protected, while 2 outlets are surge-only. The BE425M-LM lists 6 NEMA 5-15R outlets but does not specify how many are battery-backed versus surge-only.
What do the physical specifications and certifications reveal about installation fit?

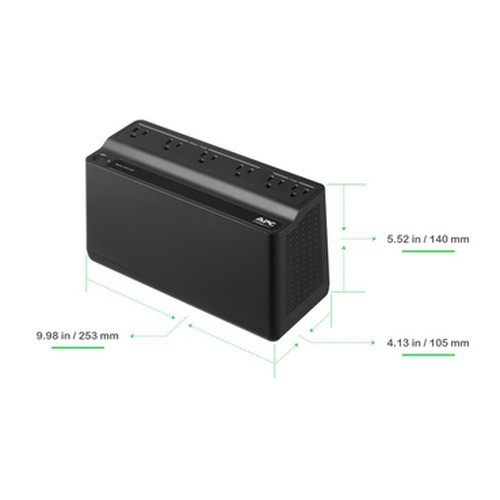

The BE425M provides complete physical data: dimensions of 5.52 x 9.98 x 4.13 inches (140 x 253 x 105 mm), a package weight of 6.55 lb, a 5-foot (1.5 m) input cord, and a noise level of 40 dBA. It carries CEC (California Energy Commission) and cTUVus safety certifications, and its maximum efficiency is listed at 98.5%.
The BE425M-LM lists a noise level of 40 dB and notes the presence of audible alarms including a low-battery alarm. Physical dimensions, weight, cord length, efficiency rating, and safety certifications are absent from the BE425M-LM specification sheet. The BE425M-LM also specifies input operation voltage as a min/max pair (88 V / 139 V) rather than a single adjustable range label, but the values are identical to the BE425M's 88–139 VAC input range.
Which should you choose: the BE425M or the BE425M-LM?
Our take: The BE425M is the stronger choice when complete, verifiable specification data is required for system design or procurement documentation. The BE425M carries documented runtime figures (2 min full load / 10 min half load), a specified transfer time of 6–10 ms, a stepped-approximation-to-sinewave output (versus the BE425M-LM's square wave), and holds CEC and cTUVus certifications with a stated 98.5% efficiency. The BE425M-LM omits runtime data, recharge time, battery chemistry, transfer time, outlet breakdown, cord length, physical dimensions, weight, efficiency, and certifications from its published spec sheet. The BE425M-LM is labeled as a Latin America market variant and may be appropriate only where that regional availability is the purchase driver. For any North American installation requiring documented runtime, certified safety compliance, or compatibility assurance with modern power supplies, the BE425M is the specifiable unit.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | APC by Schneider Electric BE425M | APC by Schneider Electric BE425M-LM |
|---|---|---|
| UPS Topology | Standby | Standby (Offline) |
| Load Capacity | 425 VA / 255 W | 425 VA / 255 W |
| Nominal Input Voltage | 120 VAC | 120 V (implied) |
| Input Voltage Range | 88–139 VAC | 88–139 V |
| Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | 50/60 Hz |
| Nominal Output Voltage | 120 VAC | 120 V |
| Waveform (on battery) | Stepped Approximation to Sinewave | Square Wave |
| Transfer Time | 6–10 ms | — |
| Total Outlets | 6 x NEMA 5-15R | 6 x NEMA 5-15R |
| Battery-Backed Outlets | 4 x NEMA 5-15R | — |
| Surge-Only Outlets | 2 x NEMA 5-15R | — |
| Surge Energy Rating | 180 Joules | 180 J |
| Full-Load Runtime | 2 Minutes | — |
| Half-Load Runtime | 10 Minutes | — |
| Battery Chemistry / Capacity | Lead-Acid / 47 VAh | — |
| Recharge Time | 8 Hours | — |
| Maximum Efficiency | 98.5% | — |
| Noise Level | 40 dBA | 40 dB |
| Audible Alarm | — | Yes (Low battery) |
| Certifications | CEC, cTUVus | — |
| Input Cord Length | 5 ft / 1.5 m | — |
| Dimensions (W x H x D) | 5.52 x 9.98 x 4.13 in / 140 x 253 x 105 mm | — |
| Package Weight | 6.55 lb | — |
Frequently Asked Questions
Which should you choose: the BE425M or the BE425M-LM?
The BE425M is the stronger choice when complete, verifiable specification data is required for system design or procurement documentation. The BE425M carries documented runtime figures (2 min full load / 10 min half load), a specified transfer time of 6–10 ms, a stepped-approximation-to-sinewave output (versus the BE425M-LM's square wave), and holds CEC and cTUVus certifications with a stated 98.5% efficiency. The BE425M-LM omits runtime data, recharge time, battery chemistry, transfer time, outlet breakdown, cord length, physical dimensions, weight, efficiency, and certifications from its published spec sheet. The BE425M-LM is labeled as a Latin America market variant and may be appropriate only where that regional availability is the purchase driver. For any North American installation requiring documented runtime, certified safety compliance, or compatibility assurance with modern power supplies, the BE425M is the specifiable unit.
Can I use the BE425M-LM in the United States instead of the BE425M?
The BE425M-LM is identified as a Latin America market variant (the '-LM' suffix). Both units share NEMA 5-15P/R plugs and 120 V operation, so physical connection is the same, but the BE425M-LM lacks CEC and cTUVus certifications documented for the BE425M. Whether the BE425M-LM meets local compliance requirements for a specific U.S. installation is not determinable from the provided specifications alone.
Does the waveform difference between the two models matter for my equipment?
Yes, for some equipment it does. The BE425M produces a stepped approximation to a sinewave on battery, while the BE425M-LM produces a square wave. Active PFC power supplies — common in modern PCs and servers — can malfunction or shut down on a square wave output. Neither unit's specifications explicitly claim active PFC compatibility, but the stepped approximation is the less problematic of the two waveforms for sensitive loads.
Which model should I choose if I need to know exactly how long my equipment will run during a power outage?
The BE425M is the only model with published runtime data in the provided specifications: 2 minutes at full load and 10 minutes at half load, with a 47 VAh battery and 8-hour recharge time. The BE425M-LM provides no runtime, battery capacity, or recharge figures. If runtime under outage is a design or compliance requirement, the BE425M is the only option with documented numbers to verify against.
