ACTi A86 vs ACTi E54: Specification Comparison

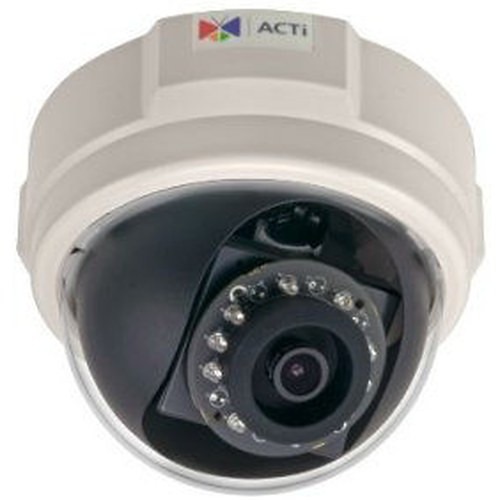

The ACTi A86 and E54 are both 5-megapixel dome cameras sharing the same resolution class, but they are engineered for fundamentally different deployment scenarios. The A86 is a motorized-zoom outdoor dome with full environmental hardening, while the E54 is a fixed-lens indoor dome with a compact ceiling-mount profile. This comparison examines their imaging capabilities, installation requirements, and integration features to help integrators and IT buyers assign each camera to the right application.
In This Guide
How do the imaging specs compare?
Both cameras deliver 5MP resolution, but the A86 provides a precisely documented sensor size of 1/2.8 inch, while the E54's sensor size is not specified in available documentation. The A86 uses a motorized varifocal lens spanning 2.7–13.5 mm with 5x optical zoom, giving installers post-mount field-of-view adjustment without physical lens changes. The E54 uses a fixed 3.6 mm F1.8 lens, which simplifies the optical assembly but locks the field of view at installation time and cannot be adjusted remotely.
On low-light performance, the A86 specifies a minimum illumination of 0.018 lux in color mode and 0 lux with IR active, with a documented IR range of 30 meters. The A86 also carries an Extreme WDR rating of 125 dB. The E54 lists WDR and IR Day/Night capability, but neither the dB value of its WDR, its minimum illumination figure, nor its IR range is specified in available documentation. Buyers requiring verified low-light and WDR numbers for formal design documentation can only confirm those figures on the A86.
What about installation and environment?
The A86 carries IP66 and IK10 ratings, confirming protection against high-pressure water jets and resistance to 20-joule mechanical impacts — making it suitable for outdoor perimeters, parking structures, and exposed mounting locations. Its operating temperature range is documented as -40°C to +50°C (-40°F to +122°F), covering harsh winter and high-heat environments. The E54 carries no specified IP or IK rating and no documented operating temperature range, which is consistent with its indoor classification but means it cannot be specified for any environment where moisture ingress, vandal resistance, or temperature extremes are a design requirement.
Both cameras draw power via IEEE 802.3af PoE. The A86 consumes up to 13W at PoE Class 3, which is within the 802.3af budget but at the upper end; switch port power budgeting should account for this. The E54's specific wattage and PoE class are not documented beyond the 802.3af standard reference. The A86 supports wall, pole, pendant, corner, and rack mounting options. The E54 is specified for ceiling mount only. The A86's physical dimensions are documented as Ø139.38 mm × H129.75 mm; the E54's dimensions are not specified.
Which fits your VMS and analytics better?
The A86 supports ONVIF Profiles S, G, T, and Q, providing broad VMS compatibility including event handling (Profile G), metadata streaming (Profile T), and device configuration (Profile Q). The E54 supports ONVIF Profile S only, which covers basic video streaming but excludes the extended interoperability of the additional profiles. Integrators targeting platforms that leverage Profile G for edge recording management or Profile T for analytics metadata should account for this gap.
The A86 includes documented on-camera analytics: Video Motion Detection, People Counting, and Smoke Detection. The E54 has no documented analytics capabilities. On audio, the A86 provides two-way audio with microphone input, line input, and line output connections. The E54 has no specified audio support. Edge storage capability is not specified for either model. The A86's broader analytics and audio support make it the better fit for sites requiring on-camera intelligence or two-way communication without an additional audio device.
Which should you choose: the A86 or the E54?
Our take: The A86 is the stronger choice when the deployment requires outdoor installation, verified environmental hardening, adjustable field of view, or on-camera analytics. Compared to the E54, the A86 documents a 125 dB Extreme WDR rating versus an unquantified WDR on the E54, a minimum illumination of 0.018 lux in color mode versus no specified figure on the E54, and IR coverage to 30 meters versus an undocumented IR range. The A86 also adds ONVIF Profiles G, T, and Q beyond the Profile S supported by both, and includes People Counting and Smoke Detection analytics absent on the E54. The E54 may be appropriate for straightforward indoor ceiling-mount deployments where a fixed 3.6 mm field of view is acceptable and advanced analytics, audio, or environmental ratings are not required — but buyers should note that most of its specifications are undocumented and cannot be used for formal design verification.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | ACTi A86 | ACTi E54 |
|---|---|---|
| Resolution | 5 MP (2592×1944) | 5 MP (2560×1920) |
| Image Sensor Size | 1/2.8" | — |
| Lens / Focal Length | 2.7–13.5 mm, 5x motorized zoom | 3.6 mm fixed, F1.8 |
| Min Illumination | 0.018 lux (color); 0 lux (IR on) | — |
| IR Range | 30 m | — |
| WDR | Extreme WDR, 125 dB | WDR (dB not specified) |
| Max Frame Rate | 30 fps | — |
| Video Compression | H.265; H.264; MJPEG | — |
| IP Rating | IP66 | — |
| IK / Impact Rating | IK10 | — |
| Operating Temperature | -40°C to +50°C | — |
| Power / PoE | PoE 802.3af Class 3, 13W; or DC 12V | PoE 802.3af (wattage not specified) |
| ONVIF Profiles | S, G, T, Q | S only |
| Edge Analytics | VMD; People Counting; Smoke Detection | — |
| Audio | Two-way (Mic-in, Line-in, Line-out) | — |
| Mount Type | Wall; Pole; Pendant; Corner; Rack | Ceiling |
| Dimensions | Ø139.38 mm × H129.75 mm | — |
Frequently Asked Questions
Which should you choose: the A86 or the E54?
The A86 is the stronger choice when the deployment requires outdoor installation, verified environmental hardening, adjustable field of view, or on-camera analytics. Compared to the E54, the A86 documents a 125 dB Extreme WDR rating versus an unquantified WDR on the E54, a minimum illumination of 0.018 lux in color mode versus no specified figure on the E54, and IR coverage to 30 meters versus an undocumented IR range. The A86 also adds ONVIF Profiles G, T, and Q beyond the Profile S supported by both, and includes People Counting and Smoke Detection analytics absent on the E54. The E54 may be appropriate for straightforward indoor ceiling-mount deployments where a fixed 3.6 mm field of view is acceptable and advanced analytics, audio, or environmental ratings are not required — but buyers should note that most of its specifications are undocumented and cannot be used for formal design verification.
Can I use the E54 outdoors if I mount it under a soffit?
The E54 carries no IP or IK rating in its available specifications. Without a documented ingress-protection rating, it cannot be specified for any location where moisture, dust, or physical impact is a design consideration, including sheltered outdoor installations. The A86, rated IP66 and IK10, is the appropriate choice for any outdoor or semi-exposed location.
Will both cameras work with my existing ONVIF-compatible VMS?
Both cameras support ONVIF Profile S, which covers basic video streaming and is recognized by most ONVIF-compatible VMS platforms. However, the A86 also supports Profiles G, T, and Q, enabling deeper integration features such as edge event recording management, metadata streaming for analytics, and remote device configuration. If your VMS leverages those extended profiles, only the A86 will take full advantage of them.
Does the A86's 5x motorized zoom mean it can pan and tilt like a PTZ camera?
No. The A86 is a zoom dome, not a PTZ camera. Its motorized varifocal lens adjusts focal length remotely between 2.7 mm and 13.5 mm, allowing field-of-view changes during commissioning or reconfiguration without a technician physically touching the lens. However, the camera head itself does not pan, tilt, or rotate under remote command during live operation. A PTZ camera would be required if continuous pan, tilt, and zoom control during operation is needed.
