Bottom line

Warehouse access readers need IP65+ weather rating, simple credential types (proximity or keypad), and OSDP/Wiegand wiring for dock and perimeter gates. Your choice hinges on credential type, mounting constraints, and power availability at the gate location.

Selecting the right access reader for warehouse dock and gate entry depends on environmental durability, credential simplicity, and integration with your existing control system.

• IP Rating & Weather Sealing. Dock doors and gates face rain, dust, and temperature swings. IP65 minimum handles splash and dust; IP67 adds full submersion protection. Industrial sites often benefit from the higher standard, especially at gate entries.
• Credential Type. Proximity/RFID readers are fastest for high-throughput dock entry; keypads work where you want PIN backup or visitor codes. Multi-tech readers (proximity + keypad) add cost but eliminate credential switching.
• Wiring Standard & Simplicity. OSDP and Wiegand are the warehouse industry defaults. Confirm your controller supports whichever standard the reader outputs—this matters more than the reader's feature set.
• Power Architecture. Some readers run on 12V DC from the access controller; others need PoE+ or AC power on-site. Gate locations often lack nearby power—know what's available before spec.
• Form Factor & Mounting. Readers ship as standalone readers, trim rings, or full surface-mount enclosures. Tight spaces (narrow stiles, roll-up doors) require compact form; open gates tolerate larger housings.
• Operating Temperature Range. Warehouse entries in unheated docks or outdoor gates in cold climates need readers rated to -40°F minimum. Check specs if your site experiences seasonal extremes.
• Connector Type & Field Serviceability. Screw-terminal wiring is easier to troubleshoot and replace in high-vibration dock environments than proprietary connectors.

What IP rating do I really need for warehouse dock doors?

IP65 handles normal dock spray and dust; IP67 adds protection against temporary submersion (heavy rain, hose-down). Most covered dock canopies work fine at IP65. Choose IP67 if your gate is fully exposed to weather or if your facility pressure-washes the entry area.

Do I need a multi-tech reader or can I use separate proximity and keypad readers?

Multi-tech readers save space and wiring but cost more upfront. Separate readers give you flexibility to replace one type without touching the other. For high-traffic docks, multi-tech is simpler; for backup or low-traffic gates, separate readers are often more economical.

What's the difference between Wiegand and OSDP for warehouse gates?

Wiegand is the older standard—simpler wiring, less intelligence in the reader itself, but proven reliability in noisy dock environments. OSDP is newer and offers better security and diagnostics but requires controller support. Most warehouse controllers support both; confirm yours does before ordering.

Can I power a reader with PoE+ if there's no network cable at my gate?

No—PoE+ requires a network switch and cable run. If your gate location has no network infrastructure, choose a reader with 12V DC power from the access controller or AC power hardwired on-site. Running new cabling is expensive; confirm power availability first.

Which reader works best in unheated docks during winter?

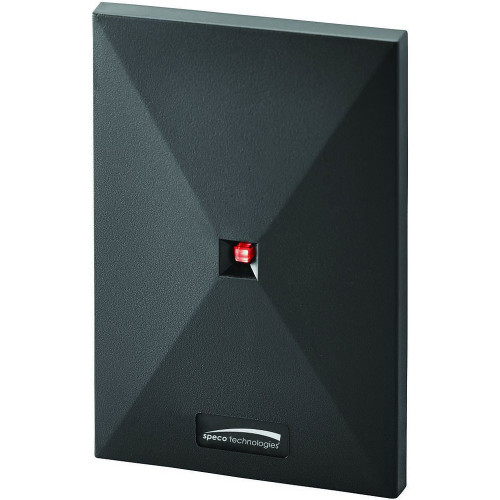

The Speco AP500HA is rated -40 to 149°F, making it the most cold-tolerant option here. Other readers on this list may not specify low-temperature operation. If your warehouse is unheated or your gate faces wind-chill, check the reader's full datasheet for minimum operating temperature.

Do I need a separate trim ring or enclosure, or do these readers mount directly?

Most readers ship as bare readers; P345-SPACER includes a spacer trim ring, while the Comelit 909020116 includes an enclosure. If your door frame is recessed or you need a protective backbox, budget extra for trim rings or surface-mount enclosures. Ask your integrator about form-factor compatibility with your existing door frame.
