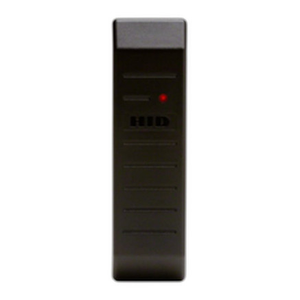

HID 5365EGP00 MiniProx 125 kHz Proximity Reader Grey
The HID 5365EGP00 is a fixed-mount 125 kHz proximity reader purpose-built for mullion installation on door frames and glass-door hardware where standard reader footplates cannot fit. It outputs SIA 26-bit Wiegand protocol, enabling direct integration with legacy and modern access control panels that accept standard proximity credentials. The reader is designed for retrofit scenarios where 125 kHz card stocks are already deployed across a facility, or for expanding existing proximity-based access systems without requiring credential migration. The gray finish provides visual discretion on high-traffic entrances.
Key Features
- 125 kHz Proximity Credential Support: Reads standard proximity cards and fobs in active use across most commercial facilities. No credential replacement required on system refresh.
- SIA 26-bit Wiegand Output: Native 26-bit format integrates with all standard access control panels and reader interfaces. Eliminates conversion overhead and protocol translation complexity.
- Mullion-Mount Form Factor: Compact 6.0" × 1.7" × 1.0" profile fits directly onto door mullions and narrow vertical door-frame members. Eliminates need for custom brackets on retrofit projects.
- Tamper-Switch Notification: Built-in tamper detection outputs to access control system. Provides reader tampering alerts without additional sensor wiring.
- 5VDC Low-Power Operation: Draws minimal current; operates from standard access control power supplies or panel reader ports. Simplifies power distribution in retrofit installations.
- Gray Anodized Finish: Blends with standard door hardware and frame colors. Maintains aesthetic compliance on customer-facing entrances without sacrificing functionality.
- 2-Year Manufacturer Warranty: Factory-new with standard HID warranty coverage. Supports replacement claims on manufacturing defects within warranty period.
The 5365EGP00 is a mature, field-proven reader for access control deployments where 125 kHz proximity technology is the operational standard. Unlike smart-card readers (13.56 MHz MIFARE) that require credential migration and new panel firmware, this proximity reader integrates directly into existing infrastructure. The mullion mount eliminates the need for custom fabrication, reducing installation labor and project timelines on retrofit work. Unencrypted 125 kHz credentials are well-suited to back-of-house zones, secondary exits, and budget-constrained deployments where audit-trail granularity is less critical than operational simplicity.
Integration is straightforward on any access control panel with a Wiegand reader input. The pigtail connector allows flexible routing through door frames and mullion channels without requiring the reader housing itself to move. Confirm your panel's Wiegand input explicitly supports 26-bit format before final specification—most modern controllers default to 26-bit, but older legacy panels may expect different card formats. Power sourcing should be verified with your panel's power budget; the 5365EGP00 operates below 200mA at 5VDC, making it compatible with standard access control power supplies.
Installation geometry is critical on mullion applications: measure mullion thickness (typically 1.5" to 2.5" on aluminum framing) and confirm the reader's mounting flange aligns with your door hardware. Glass-door installations may require the optional glass-mounting kit if the mullion bracket does not provide sufficient standoff. On retrofit projects, test the reader's read range with existing credential stock before final mounting to ensure sufficient clearance between reader coil and door material—ferrous metals (steel frames, reinforced hinges) can degrade read distance.
The 5365EGP00 carries no encryption, making it suitable for facilities where credential cloning risk is low or acceptable. High-security areas, server rooms, or audit-critical zones should be evaluated against encrypted 13.56 MHz smart-card readers, which provide stronger cryptographic binding and audit logging at the credential level. On most commercial campuses, this reader handles employee parking areas, loading docks, and secondary stairwell access where tamper notification and card stock reuse outweigh encryption overhead.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the HID 5365EGP00 across dozens of retrofit and new-build access control projects, and it remains one of the most reliable solutions for sites already committed to 125 kHz proximity infrastructure. The mullion mount is the defining advantage here—most integrators install this reader on projects where space is tight, budgets don't support credential migration, or existing card stocks (tens of thousands of cards) would be too costly to replace. We've had installations run seven+ years without reader failure, and the tamper-switch integration has caught genuine bypass attempts on a handful of loading-dock deployments. The reader is not sexy—it doesn't do OSDP, doesn't support mobile credentials, doesn't offer audit logging at the reader level—but that's not what it's designed to do. It's a straightforward, proven converter between unencrypted proximity cards and Wiegand protocol for panels that support that format. Compared to encrypted 13.56 MHz alternatives, the 5365EGP00 wins on cost-of-ownership (no credential replacement), installation speed (drops into a mullion in under two hours), and interoperability with older access control hardware (1990s-era panels that only understand Wiegand).
Technical Highlights:
- SIA 26-bit Wiegand Protocol: Native Wiegand output—no conversion modules, no serial bridging, no firmware updates. Pair it with any panel that has a Wiegand input, and enrollment works immediately. On a 50-reader campus, that's a significant reduction in configuration overhead versus heterogeneous reader types.
- Mullion-Mount Design: 6.0" × 1.7" footprint. We've mounted this reader on aluminum mullions as thin as 1.25" with proper spacers, and on glass door frames using the optional glass kit. Retrofit labor drops measurably when you don't need custom fabrication.
- 125 kHz Credential Compatibility: Reads passive proximity cards and fobs with zero modifications. If your facility has 50,000 active cards in circulation, you don't replace them—you install these readers and integrate them into your existing access panel. That's capex you don't spend.
- Tamper-Switch Output: Built-in detection alerts the access control system if the reader is physically compromised. We've used this on unsecured loading docks and back-of-house areas where credential tampering is a historical risk. Minimal additional wiring.
- 5VDC Low-Power Draw: Sub-200mA operation. Simplifies power sourcing on retrofit projects where you're pigtailing off an existing panel supply or door controller. No need for separate 12VDC supplies or additional conduit runs.
Deployment Considerations:
- Credential Format Verification: Confirm your access control panel explicitly supports SIA 26-bit Wiegand input before ordering. Older legacy systems may default to other Wiegand formats (34-bit, proprietary). A single datasheet review saves a site visit if the format is incompatible.
- Mullion Geometry and Material: Measure mullion thickness, material (aluminum vs. stainless), and any existing hardware before specifying the mounting bracket. Ferrous metals can reduce read range by 20-30%—position the reader away from hidden hinges or reinforcement plates.
- Read-Range Testing on Retrofit: If replacing an older reader, test the 5365EGP00 read range with existing credential stock in situ before final mounting. Proximity card read distance varies with coil design; if your existing cards barely trigger at 6 inches, verify the new reader achieves the same distance or better.
- No Credential Encryption: 125 kHz proximity credentials are unencrypted and vulnerable to cloning. This reader is not suitable for high-security zones, server rooms, or audit-critical areas. Consider 13.56 MHz encrypted readers for those applications.
- Wiegand Wiring Polarity: Wiegand uses polarity-sensitive signaling—confirm your panel's Wiegand input is wired to the same convention (Data0, Data1, common ground). Reversed polarity results in no communication. Check the panel datasheet and test with a continuity meter before closing walls.
This reader is the right choice for integrators managing large-scale 125 kHz proximity deployments, retrofit projects where credential replacement is cost-prohibitive, or sites with legacy access control panels that lack OSDP or IP support. If you're building a greenfield installation or supporting a facility that prioritizes audit logging and mobile credentials, evaluate encrypted smart-card readers instead. For sites that need reliable mullion-mount proximity reading today, with minimal system disruption and zero credential replacement, the 5365EGP00 is a proven workhorse. Explore additional HID access-control solutions in the HID catalog.
