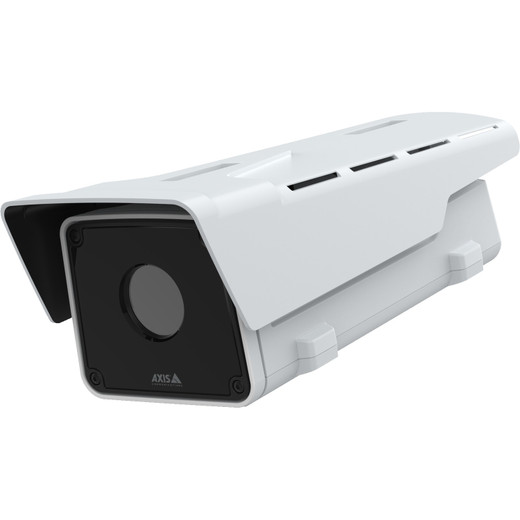

Axis Q2101-TE Thermal IP Camera 7mm - 02650-001

We've deployed the Axis Q2101-TE across refineries, data centers, and perimeter fencing where conventional cameras simply don't work. The thermal-only approach is intentional: there's no visible-light fallback, which means the camera's value is absolute clarity on thermal phenomena. In a fog bank or during a blinding sandstorm, a visible camera is blind; the Q2101-TE's uncooled microbolometer doesn't care. The 40mK sensitivity is the real engineering win—it's tight enough to spot a person at 100+ meters on a cold night, but also precise enough for equipment monitoring. We've caught overheating circuit boards three days before they would have failed, and that early warning alone pays for the camera. The 7mm lens (55° FOV) is the sweet spot for focused surveillance: narrower than a 4mm (better resolution), wider than a 13mm (better situational awareness). For perimeter work, pair it with a visible-light wide-angle on the same pole, and you've got both intrusion detection (thermal) and forensic detail (visible). Bandwidth-wise, Zipstream is critical on 16+ camera sites; we've seen bitrate reductions from 5.2Mbps to 3.1Mbps on the same scene without visible quality loss.

Technical Highlights:

• 40mK NETD @ F1.0: This is exceptional sensitivity for an uncooled sensor. Means you're detecting sub-degree temperature swings—critical for predictive maintenance (bearing heat rise, motor overload) and intrusion detection (human body at 150m+). Cooled sensors (FLIR Boson, etc.) are marginally better, but cooled cameras cost 3–5x more, require cryogenic maintenance, and are overkill for most perimeter work.
• 384x288 Native, Upscaled to 768x576: Don't mistake upscaling for native resolution—you're not creating detail that wasn't there. But upscaling improves compatibility with legacy NVR GUIs that expect 576p or 720p, and it smooths the thermal image for display without interpolation artifacts. For network streaming, send native 384x288 to save bitrate; upscale only on playback if needed.
• H.264 + Zipstream: Thermal video doesn't compress as aggressively as visible video, but Zipstream still buys 30–50% reduction by identifying static/low-motion regions. On a static perimeter shot (fence-line camera), savings are marginal; on a high-traffic gate or busy loading dock, Zipstream makes a measurable difference.
• PoE Class 4 (~15W draw): This is below the 30W limit of 802.3at (PoE+), so your existing PoE+ switch ports can handle it. No special power budget reserved. In cold climates, the 40 mK sensitivity doesn't degrade, but the camera's own electronics draw more power at -40°C—keep this in mind on power-constrained sites.
• IP66 + -40°C to 60°C Operating Range: The housing and lens design are sealed against rain and dust; thermal sensors don't lose accuracy at temperature extremes the way visible sensors do. We've installed Q2101-TE units in Siberian substations and Middle Eastern petrochemical plants with no re-calibration between seasons.
• Audio Detection + 4 Alarm I/O: The audio detection is basic (no speech/sound classification, just presence/absence), but it pairs well with thermal: if motion + audio trigger simultaneously, confidence in intrusion goes up. The 4 relay outputs are open-collector, so they drive most 3rd-party sirens, gate locks, or strobes without additional drivers.

Deployment Considerations:

• Thermal-Only Means No Visible Fallback: This is not a dual-spectrum camera. If you need to identify a face, read a license plate, or capture visible detail, mount a separate visible-light camera on the same bracket. Thermal is for heat events; visible is for forensics. Don't expect one to do both.
• Scene Contrast Matters More Than Light: Thermal range improves with large ΔT (temperature differential between target and background). On a 20°C night, a human (37°C) stands out sharply; on a 30°C day, a human and the ground temperature are close, reducing contrast and effective range. Plan coverage zones knowing this; a perimeter at dusk (large ΔT) will outperform the same perimeter at midday (small ΔT).
• Reflective Surfaces and Glass Are Thermal Mirrors: Unlike visible cameras (which see through glass), thermal lenses see reflections of the lens housing and surroundings. Never mount pointing directly at reflective metal or large glass areas; angle slightly off-axis. Outdoor mounting near metal roofs can create false hotspots.
• Lens Dust and Moisture Degrade Throughput: The 7mm thermal lens is uncoated glass (typical for LWIR). Dust, salt spray, or condensation reduces signal. Install IP66 lens hoods or rain shields in high-dust or marine environments. Monthly visual inspection is worth the effort—a thin dust layer can degrade range by 20–30%.
• Network Bandwidth: Plan for 3–5 Mbps per Camera at 30fps: Thermal video is information-dense despite lower pixel count. Don't assume thermal bitrate is lower than visible; it often isn't. Size your network link and recording storage accordingly. Gigabit PoE switches are standard; 100Base-T is inadequate for sites with more than 2–3 thermal cameras.

The Axis Q2101-TE is for integrators and end-users who understand thermal's role: perimeter intrusion (heat signature), equipment monitoring (early failure detection), and process measurement (temperature validation). If your project requires visible license-plate capture or facial forensics, thermal alone is insufficient—pair it with a visible camera. For pure thermal workloads (fire detection, equipment hot-spot monitoring, cold-zone intruder detection), this is a mature, reliable platform. Explore the full Axis catalog for complementary visible and thermal models.
