IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Add to Cart The item has been added
Axis

SKU: 02251-001

Axis TU6004-E 8m Cable 4-Pack IP66 - 02251-001

IP66 outdoor cables 4-pack, 8m reach for Axis F-series modular units
- Four 8-meter cables rated IP66/IP6K9K for washdown and outdoor spray
- 40mm minimum bend radius tolerates tight conduit and structural routing
- Direct fit for Axis F21, F72, and F41 modular camera platforms
In stock · Ships same business day

$108.24 $104.99 Save $3.25

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02793-001

Axis TU6007-E 1M SMA FAKRA Cable 4-Pack - 02793-001

Four 1M SMA FAKRA cables, IP66/IP67-rated for outdoor modular cameras
- 1-meter length × 4 cables per pack; covers small multi-camera nodes or spares
- IP66/IP67 connectors resist dust, spray, and brief submersion in wet environments
- 50 Ohm impedance, 0–3 GHz; 3mm diameter with 30mm bend radius for tight routing
In stock · Ships same business day

$47.41 $45.99 Save $1.42

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02970-004

Axis W701 Mk II 8-Bay Docking Station - 02970-004

8-bay docking station for simultaneous charging and data offload
- Charge and transfer data from 8 cameras at once at 100 Mbps each
- Gigabit Ethernet connection integrates directly into enterprise networks
- Low power consumption (120 W max) runs continuously in dispatch centers
In stock · Ships same business day

$652.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBF-100B1

Hanwha SBF-100B1 Backbox for Fisheye Cameras

Aluminum backbox for Hanwha fisheye cameras with corrosion-resistant finish
- Lightweight aluminum construction resists corrosion in outdoor and high-moisture environments
- Engineered for Hanwha fisheye range with standard ceiling and wall mounting
- Maintains level camera positioning for full panoramic coverage in retail and commercial surveillance
In stock · Ships same business day

$49.00 $32.99 Save $16.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-302F

Hanwha SBP-302F Ceiling Tile Support Plate

Ceiling tile support plate for Hanwha X series and panoramic cameras
- Dual mounting holes (12.85" and 7.20") fit six camera models with one SKU
- Durable construction rated for indoor drop-ceiling environments year-round
- Simplifies flush-mount installation in offices, retail, and institutional spaces
In stock · Ships same business day

$168.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SHP-1680FPW

Hanwha SHP-1680FPW Ceiling Flush Mount

Ceiling flush mount for Hanwha dome cameras, plenum-rated aluminum
- Low-profile in-ceiling design integrates discreetly into commercial spaces
- Plenum-rated aluminum construction meets fire safety standards
- Compatible with 6 Hanwha camera models including XNP and HCP series
Special Order · Ships in 2-3 weeks

$159.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SLA-T1080F

Hanwha SLA-T1080F 2MP Fisheye Lens Module

187° fisheye lens module for ultra-wide surveillance coverage
- 2MP @ 60fps with 187° field of view captures panoramic scenes in single frame
- 0.03 Lux low-light sensitivity maintains visibility in near-darkness conditions
- 120dB WDR and 8-meter cable for flexible mounting in high-contrast spaces
Special Order · Ships in 2-3 weeks

$310.00 $232.99 Save $77.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SLA-T4680VA

Hanwha SLA-T4680VA 4.6mm Pinhole Lens Module

2MP pinhole lens module, 4.6mm fixed, sees in 0.06 lux near-darkness
- 73° horizontal field of view captures office entrances and conference rooms
- F2.5 aperture operates in dimly lit hallways without supplemental IR lighting
- RJ12 connection integrates with compatible Hanwha IP camera systems
In stock · Ships same business day

$215.00 $161.99 Save $53.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: CB-DE4A

Hikvision CB-DE4A Junction Box for DS-2DE4A PTZ Cameras

Aluminum junction box for DS-2DE4A PTZ cameras with IP-rated weatherproof sealing
- IP-rated weatherproof enclosure protects connections from rain, dust, and moisture
- Aluminum alloy housing resists corrosion in coastal and high-humidity environments
- Bottom and side cable outlets route connections down or horizontally without strain
In stock · Ships same business day

$28.00 $19.99 Save $8.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: CB155

Hikvision CB155 Junction Box, White

IP66 aluminum junction box for outdoor surveillance cable terminations
- IP66 rating blocks dust and water jets at outdoor wall-mount cable runs
- Aluminum alloy with spray treatment resists corrosion in harsh climates
- Waterproof gasket seal keeps moisture and contaminants away from connections
In stock · Ships same business day

$39.00 $28.99 Save $10.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: DS-1227ZJ-DM44

Hikvision DS-1227ZJ-DM44 In-Ceiling Mount

Aluminum in-ceiling mount for Hikvision dome cameras in drop-tile or drywall
- Aluminum alloy construction resists corrosion in humid indoor environments
- Flush-mount design hides camera lens and housing above finished ceiling
- Secure platform maintains consistent field of view without drift over time
In stock · Ships same business day

$52.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: JBPW-L-G

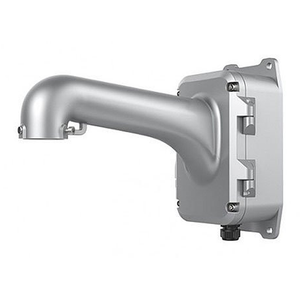

Hikvision JBPW-L-G Speed Dome Junction Box

Aluminum junction box for Hikvision Speed Dome cameras, 22 lbs capacity
- Waterproof rubber sealing rated for outdoor wall-mounted installations
- 24 VAC, 3A power adapter with organized cable routing via multiple outlets
- Aluminum alloy construction with surface spray treatment for durability
Special Order · Ships in 2-3 weeks

$183.00 $132.99 Save $50.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: PC130T

Hikvision PC130T Pendant Cap for Mini Turret Camera

Aluminum pendant cap for Hikvision mini turret cameras
- Suspends camera below ceiling for clean sightlines in retail and warehouses
- Aluminum alloy construction resists corrosion in temperature-variable environments
- Weatherproof design shields connections from dust and rain splash indoors
In stock · Ships same business day

$35.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: PP1

Hikvision PP1 Pendant Mounting Bracket, White

Pendant ceiling mount with IP67 waterproof aluminum for Hikvision cameras
- IP67-rated aluminum alloy resists corrosion in outdoor and high-humidity environments
- Extendable arm adjusts camera height and angle for optimal downward viewing
- Organized cable routing protects wiring from UV, pinching, and weather exposure
In stock · Ships same business day

$35.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: WMP-L

Hikvision WMP-L Wall Mount PTZ - Long

Wall mount for Hikvision PTZ cameras with waterproof aluminum construction
- Aluminum alloy resists corrosion in outdoor and salt-air environments
- Full waterproof design protects fasteners and connection points from rain
- Long format prevents interference with larger PTZ lens housings and motors
In stock · Ships same business day

$52.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
i-PRO

SKU: WV-QCN500-W

i-PRO WV-QCN500-W Corner Mount Bracket for Dome Cameras

Corner mount bracket for i-PRO dome cameras at 90-degree wall intersections
- Mechanical bracket design eliminates blind spots at building corners and wall junctions
- White finish blends into interior and exterior surfaces for reduced visual impact
- Steel construction holds dome cameras in fixed position without motorized drift
In stock · Ships same business day

$135.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Axis TU6004-E 8m Cable 4-Pack IP66 - 02251-001

Axis TU6007-E 1M SMA FAKRA Cable 4-Pack - 02793-001

Axis W701 Mk II 8-Bay Docking Station - 02970-004

Hanwha SBF-100B1 Backbox for Fisheye Cameras

Hanwha SBP-302F Ceiling Tile Support Plate

Hanwha SHP-1680FPW Ceiling Flush Mount

Hanwha SLA-T1080F 2MP Fisheye Lens Module

Hanwha SLA-T4680VA 4.6mm Pinhole Lens Module

Hikvision CB-DE4A Junction Box for DS-2DE4A PTZ Cameras

Hikvision CB155 Junction Box, White

Hikvision DS-1227ZJ-DM44 In-Ceiling Mount

Hikvision JBPW-L-G Speed Dome Junction Box

Hikvision PC130T Pendant Cap for Mini Turret Camera

Hikvision PP1 Pendant Mounting Bracket, White

Hikvision WMP-L Wall Mount PTZ - Long

i-PRO WV-QCN500-W Corner Mount Bracket for Dome Cameras

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
