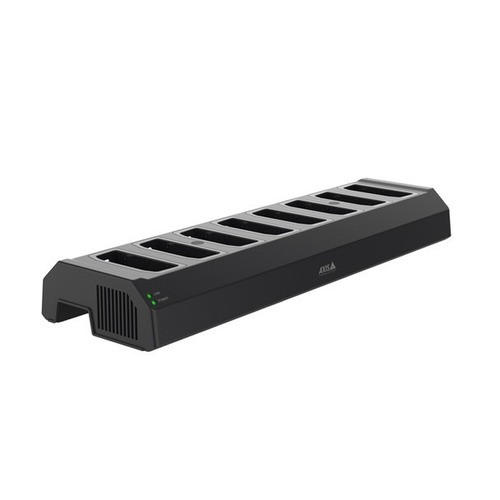

Axis 02970-004 W701 Mk II 8-Bay Docking Station
Overview
The Axis 02970-004 is a purpose-built docking station for organizations deploying multiple body-worn cameras across mobile or field security operations. It centralizes the charging and data offload workflow for up to eight Axis body-worn cameras simultaneously, eliminating the manual logistics of managing individual chargers and direct camera connections. For law enforcement, security teams, and mobile surveillance crews, this reduces operational friction — cameras stay ready, evidence transfers faster, and downtime gets scheduled instead of reactive.
Key Features
- 8-bay simultaneous capacity: Charge and offload data from eight cameras at the same time, cutting turnaround time between field deployments and evidence archival. No queuing or sequential charging.
- 100 Mbps per-camera throughput: Data transfer speed of 100 Mbit/s per bay means a full SD card offload takes minutes, not hours — important when evidence needs to move into a video management system the same shift.
- Gigabit Ethernet (10/100/1000BASE-T): Connects to your enterprise network at full speed. No bottleneck between the station and your evidence storage or VMS.
- Low power draw (12 V DC, max 120 W): 120 W maximum across all eight bays averages 15 W per camera. Run it continuously in a dispatch center without strain on facility power infrastructure or uninterruptible power supplies.
- Compact, portable form factor: At 860 g (1.9 lb), it ships with a 12 V power supply and fits on a desk, in a vehicle, or at a field command post. No external cooling required — plastic construction rated for 0–40 °C operating range, suitable for both climate-controlled offices and seasonal field deployment.
- Enterprise-grade networking protocols: Supports IPv4, IPv6, HTTPS, DNS, NTP, and DHCP — integrates directly into managed network environments without custom routing or firewall exceptions beyond standard Ethernet.
- 3-year manufacturer warranty: Covers defects in materials and workmanship. Axis provides technical support throughout the warranty period.
- Full compliance certifications: EMC (CISPR 35, CISPR 32 Class A), safety (UL/cUL, CE), and environmental (IEC 60068 series). RoHS and REACH compliant — meets procurement requirements for government and regulated enterprises.
When to Choose This Model
Select the Axis 02970-004 if you operate six or more body-worn cameras and need centralized, simultaneous charging and evidence management. The 8-bay configuration avoids the cost and clutter of individual wall-mount chargers while ensuring every camera is ready for the next shift. Ideal for precinct briefing rooms, dispatch centers, evidence management stations, and mobile command vehicles.
When to Choose Something Different
If you have fewer than three cameras or operate a single-operator model where cameras dock one at a time, a simpler charger or individual power supplies may be more cost-effective. If your network infrastructure does not support Ethernet access in the docking area, or if your cameras are incompatible with the Axis W701 Mk II mechanical interface, verify compatibility with your camera model or consult the manufacturer before ordering.
Integration & Compatibility
The W701 Mk II pairs with Axis body-worn cameras designed for the docking interface — confirm your specific camera model supports this station. As an accessory, it requires a standard Ethernet port and a 12 V power source (included); integration into a network video recorder or VMS is handled at the software level after evidence transfer. No special drivers or proprietary software are required beyond your existing video management platform's camera import workflow.
What's in the Box
- 1x Axis W701 Mk II docking station
- 1x 12 V power supply
- Mounting screws
- Installation guide
Frequently Asked Questions
Q: Can I connect the W701 Mk II to a Power over Ethernet (PoE) switch instead of a separate 12 V power supply?
A: No. The station requires a dedicated 12 V DC power input. The included power supply plugs into AC; there is no PoE option for this accessory. PoE powers the cameras themselves during field use, not the docking station.
Q: What is the maximum data transfer time for a full camera memory card?
A: Transfer speed is 100 Mbps per bay. For a typical 256 GB SD card at full capacity (which is rare in practice), throughput would be limited by the camera's card write speed and interface. Real-world transfers typically complete in 10–30 minutes depending on card size and network conditions.
Q: Does the 02970-004 work with all Axis body-worn cameras?
A: The W701 Mk II is designed for Axis body-worn cameras with matching dock connectors. Verify your specific camera model supports the W701 Mk II interface before purchase. Check the camera's technical documentation or contact the manufacturer for compatibility confirmation.
Q: What happens if one bay fails — can I still use the other seven?
A: Each bay operates independently. If a single dock port fails, the other seven bays remain functional. Faulty bays should be reported to Axis support under warranty.
Q: Is the docking station IP-rated for outdoor use?
A: No. The W701 Mk II is rated for indoor deployment with 0–40 °C operating range. It is not IP-rated for rain or immersion. Use indoors or in a weatherproof enclosure if field deployment is necessary.
Q: Can I mount the station on a wall or does it require a desk?
A: The installation guide and evidence specify mounting hardware (screws) are included. Wall mounting is possible; consult the installation guide for mounting hole locations and weight-bearing requirements.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02970-004 (often searched as 02970 004) solves a real operational pain point: when you have six or more body-worn cameras in field rotation, managing per-unit chargers and manual offloads becomes a logistics nightmare. The 8-bay simultaneous-dock architecture means all your cameras are charging and offloading at once — not queued, not rotated. That's the core value proposition, and it's hard to replicate with cheaper single-bay alternatives.
Technical Highlights:
- 100 Mbps per-bay throughput: Enough bandwidth to move evidence files from eight cameras to your NVR or evidence server in parallel without choking the network. A typical 64 GB recording at H.265 moves in under 10 minutes per camera when the network isn't saturated.
- 12 V DC, 120 W maximum across all eight bays: That's 15 W average per bay — trivial power draw. You can run this 24/7 in a dispatch center or evidence room on a standard UPS without noticeable load. No cooling fan means silence in the evidence management space.
- Gigabit Ethernet (10/100/1000BASE-T): The station will negotiate at whatever speed your network offers, but gigabit connectivity means future-proofing when your facility upgrades switches or adds higher-bandwidth cameras.
Deployment Considerations:
- Indoor-only operation (0–40 °C). If your command post or dispatch center has temperature swings (unheated seasonal field structures), verify the operating range fits your real-world environment. No IP rating means no dusty or wet outdoor locales.
- Requires a dedicated 12 V power supply — not PoE. This is a minor infrastructure requirement (standard outlet, included PSU) but means you can't just daisy-chain it onto a PoE injector or midspan.
- Camera dock compatibility is mechanical. Verify your specific Axis body-worn model (e.g., W701, W701L, or successor cameras) supports the W701 Mk II interface before deploying the station. A mismatch means wasted equipment.
Best fit: precinct briefing rooms, evidence management centers, and mobile command vehicles where teams rotate cameras daily and evidence must transfer to the VMS the same shift. For organizations with fewer than four cameras or single-operator squads, the cost and real estate of an 8-bay station don't justify the purchase — a single-bay or wall charger array makes more sense.
