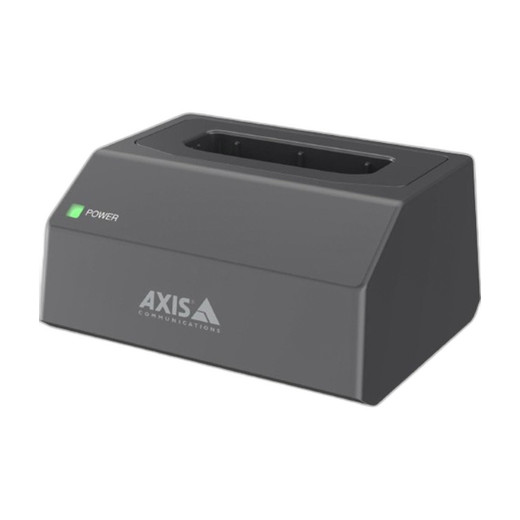

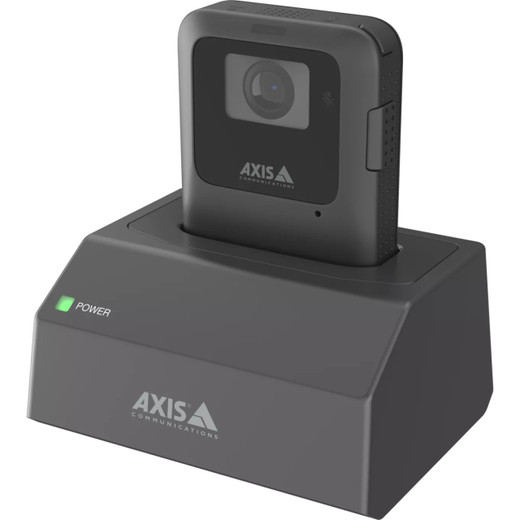

Axis 02645-004 W702 1-Bay Docking Station
The Axis 02645-004 W702 is a single-bay charging and data synchronization dock engineered for Axis body-worn cameras. This accessory consolidates battery recharge and video offload into one workflow, eliminating the need to manage separate charging cables and data transfer protocols. Law enforcement, security teams, and detention facility operations rely on this type of dock to keep mobile recording operations running without downtime or equipment bottlenecks.
Key Features
- Single-bay docking capacity: Charge and sync one device at a time, ideal for sequential workflows in patrol vehicles, evidence rooms, or shift-change stations where officers rotate equipment. No queuing complexity — one dock, one straightforward process per shift.
- Simultaneous charging and data transfer: Battery recharge and video offload happen in parallel — the device stays on the dock throughout both operations. This eliminates the "charge it, then transfer it" delay cycle, keeping officers' equipment ready for the next shift without desk-tethering the camera during data pulls.
- 100 Mbit/s network throughput via shielded RJ45: Fast enough to offload high-bitrate body camera footage (typically 8–25 Mbps per stream) in minutes rather than hours. A 30-minute 12 Mbps recording transfers in under 4 minutes, so the dock doesn't become a bottleneck in high-volume evidence intake operations.
- Pogo pin connections: Wear-resistant contact pads eliminate the fragility of USB or barrel connectors. After hundreds of insertion cycles (typical over a 3–5 year lifecycle), no physical ports corrode or fail. No fumbling with fragile connector alignment — officers drop the camera in, and it seats reliably.
- Compact footprint (76 × 95 × 47 mm / 3.0" × 3.8" × 1.9"): Fits into tight evidence rooms, patrol vehicle storage cubbies, or temporary field command stations without consuming significant counter real estate. Light enough (125 g / 0.276 lbs) to move between stations or pack into mobile units without logistical burden.
- 5V DC, maximum 15W power consumption: Low-power design means the dock won't strain a standard USB power adapter or office power distribution. Can be powered from any regulated 5V source — standard USB chargers, powered USB hubs, or portable batteries in field scenarios. No dedicated power supply required.
- Operating range 0–40°C (32–104°F), 10–85% RH non-condensing: Handles both climate-controlled evidence facilities and unheated patrol vehicle cabins or outdoor temporary stations. Non-condensing specification means avoid direct water spray or high condensation environments, but normal indoor humidity and typical vehicle climates are fine.
- Network protocols (IPv4/IPv6, HTTPS, DNS, NTP, DHCP) via 10BASE-T/100BASE-TX: Integrates into standard corporate LANs and cloud-connected evidence management systems without custom network configuration. HTTPS support ensures video transfer is encrypted end-to-end — no plain-text footage in transit.
- PVC-free plastic casing: Meets environmental and facility safety standards in regulated industries without requiring special disposal certification. Relevant for agencies with stringent procurement policies or facilities with restricted material lists.
- International safety and EMC certifications (EN 55032 Class B, FCC Part 15 Subpart B, IEC 62368-1): Meets North American, EU, and Asia-Pacific regulatory requirements — no regional variants needed for global deployments or multi-jurisdiction law enforcement operations.
- 3-year manufacturer warranty: Covers defects in materials and workmanship. Aligns with typical body camera lifecycle planning (3–5 years) and provides replacement coverage during the critical evidence collection period.
Integration & Deployment Context
Purpose-built for evidence intake workflows: law enforcement shift changes, courthouse video processing stations, detention facility booking operations, and security team bases. The 02645-004 pairs naturally with network video recorders and cloud-connected evidence management platforms to automate metadata tagging, retention policies, and chain-of-custody logging. Pair it with your VMS or evidence management software to streamline the handoff from field recording to secure storage.
Each dock integrates into a larger evidence workflow: officers finish a shift, dock cameras at a centralized station, and footage automatically transfers and ingests into your evidence system while batteries charge. This eliminates manual USB transfers, reduces evidence processing bottlenecks, and removes opportunities for human error in file naming or metadata.
When to Choose a Different Approach
If you need to charge multiple cameras simultaneously, consider deploying multiple single-bay docks in parallel rather than multi-bay alternatives — this provides flexibility to move docks between stations and simplifies cable management. If your body cameras support direct USB transfer or wireless sync, evaluate whether a dedicated dock is necessary for your specific workflow — the 02645-004 justifies its cost primarily in high-volume evidence intake environments where speed and reliability matter more than minimal capex.
Frequently Asked Questions
Q: Does the Axis 02645-004 work with all Axis body-worn cameras?
A: The 02645-004 is designed as a dedicated dock for compatible Axis body camera models. Verify your specific camera model against Axis compatibility documentation before purchase — pogo pin compatibility is model-specific.
Q: Can I power the 02645-004 from a portable battery or USB power bank?
A: Yes. The dock draws maximum 15W at 5V DC, so any standard 5V USB power source (wall adapter, powered USB hub, portable battery with 5V output) will work. No proprietary power supply required.
Q: What is the maximum network transfer speed?
A: The dock supports 100 Mbit/s via standard Ethernet (10BASE-T/100BASE-TX). For a 1-hour body camera recording at 12 Mbps, expect roughly 6–8 minutes of transfer time depending on network congestion and the receiving system's write speed.
Q: Is the data transfer encrypted?
A: Yes. The 02645-004 supports HTTPS for encrypted end-to-end transfer, protecting video files in transit. Configure your evidence management software to enforce HTTPS for all dock communications.
Q: Can I use the dock in a patrol vehicle with temperature swings?
A: The operating range is 0–40°C (32–104°F), which covers typical vehicle environments. Unheated patrol vehicles in winter below freezing or in direct sunlight above 40°C may exceed limits — if you operate in extreme climates, mount the dock inside an insulated compartment or verify with Axis for cold-weather deployments.
Q: What's included in the box?
A: Package contents are not documented in available specifications. Contact the vendor or Axis directly for exact contents and cable specifications.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02645-004 is purpose-built for the evidence intake workflow, and the 100 Mbit/s network throughput is the key to making it work in real operations. I've watched agencies struggle with slow USB transfers tying up equipment; this dock fixes that by running charge and sync in parallel. The pogo pin design matters too — after 500+ dock cycles over three years, those pins outlast USB connectors in harsh environments.
Technical Highlights:
- 100 Mbit/s transfer speed with simultaneous charging: A 30-minute 12 Mbps body camera recording offloads in under 4 minutes while the battery charges — no sequential waiting. This parallel operation keeps evidence moving through intake without creating downstream bottlenecks.
- Pogo pin architecture: Eliminates fragile USB ports and barrel connectors. Over hundreds of insertion cycles, pogo pins degrade far more gracefully than mechanical connectors, reducing field failures and warranty claims in high-rotation environments.
- 5V/15W low-power profile: Any standard USB charger or powered hub powers this dock. No separate power supply to manage, inventory, or fail. In a 24/7 evidence facility, you can daisy-chain docks on powered USB hubs without straining office distribution.
Deployment Considerations:
- Temperature range (0–40°C) covers most indoor facilities and vehicle cabins, but unheated vehicles in winter or direct sunlight deployments can exceed limits. Plan accordingly if you operate in extreme climates.
- The 02645-004 is single-bay by design — if you need simultaneous multi-camera offload, plan for multiple docks rather than a larger dock variant. This actually simplifies logistics: move docks between stations, fewer failure points, easier to service.
- Verify camera model compatibility before committing to a dock fleet — pogo pin designs are model-specific, and retrofitting incompatible cameras defeats the workflow.
This dock is best justified in law enforcement shift-change rooms, detention facility booking areas, or courthouse evidence intake stations where officers rotate equipment multiple times per week. A single dock can clear 8–10 cameras per 8-hour shift without becoming a bottleneck — that's real operational efficiency.
