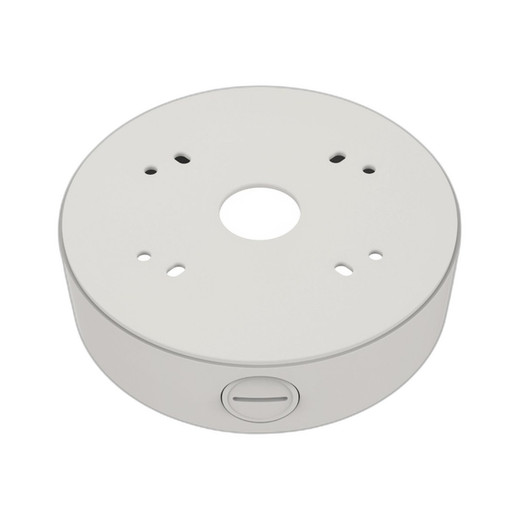

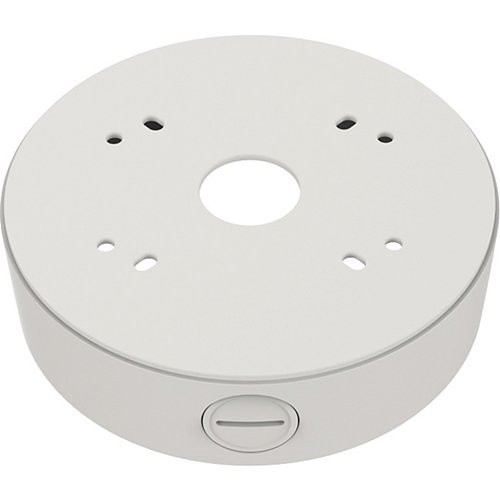

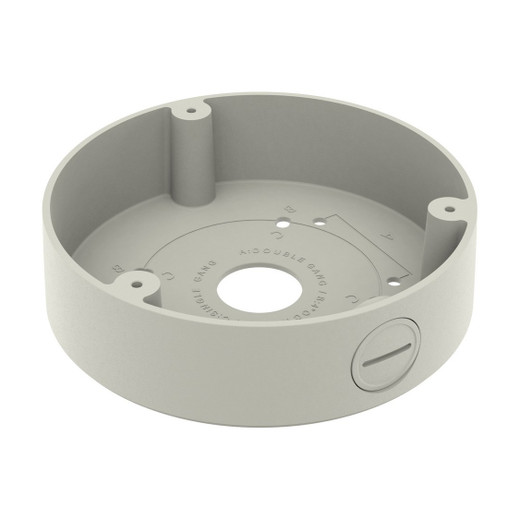

Hanwha SBF-100B1 Aluminum Backbox for Fisheye Cameras
The Hanwha SBF-100B1 is a precision-engineered aluminum backbox designed to provide stable, secure mounting for Hanwha fisheye IP cameras. If you're deploying panoramic surveillance in retail, municipal, or commercial environments, this accessory ensures your camera stays level and protected while maintaining the optical integrity required for 180–360-degree coverage.
Key Features
- Aluminum Construction: Lightweight yet rigid material resists corrosion and vibration, critical when a mounting platform failure can leave your entire coverage dead. Aluminum won't rust like steel and doesn't add unnecessary weight to ceiling or wall substrates.
- Corrosion-Resistant Design: Weatherproof finish handles temperature swings, humidity, and direct rain exposure without degradation—essential if you're mounting outdoors or in high-moisture environments like warehouses or coastal facilities.
- Seamless Compatibility: Engineered specifically for the Hanwha fisheye camera range, meaning proper mechanical fit, electrical passthrough alignment, and support for the optical geometry fisheye sensors demand. No adapter hassles, no guesswork about load ratings.
- Secure Mounting Platform: Delivers stable camera positioning so that the ultra-wide field of view stays level. A tilted fisheye lens wastes panoramic coverage and complicates video analytics alignment downstream.
- Easy Installation: Designed for integrators—no exotic tools or custom fabrication required. Standard mounting points match typical ceiling and wall infrastructure across most commercial buildings.
- Proven for Demanding Environments: Deployed across retail chains, public facilities, and infrastructure protection applications where fisheye cameras need reliable, weather-resistant support over years of operation.
Integration & Compatibility
The SBF-100B1 (often searched as SBF 100B1) integrates with the Hanwha NVR and surveillance platform ecosystem, providing the mechanical foundation your camera needs. Once mounted, the fisheye lens connects to your PoE switch and network infrastructure using standard IP connections—no special cabling or power tricks introduced by the backbox itself.
This backbox does not introduce latency, affect frame rate, or impose codec constraints. Its role is purely mechanical: keep the camera stable, protect it from weather, and ensure proper alignment for the field of view your deployment demands.
When to Choose a Different Mounting Solution
If you need recessed or flush ceiling mounting with minimal profile, or if your deployment calls for a compact pendant-style hanging solution, consider alternative mounting kits within the Hanwha fisheye accessory family—your integrator can advise based on ceiling type and aesthetic requirements. The SBF-100B1 is straightforward and robust; some integrators may prefer specialized enclosures for vandal-prone public spaces, though this backbox's aluminum construction is already quite durable.
What's in the Box
- 1 x Hanwha SBF-100B1 Backbox
Frequently Asked Questions
Q: Is the SBF-100B1 compatible with all Hanwha fisheye camera models?
A: The SBF-100B1 is engineered for the Hanwha fisheye camera range. Verify your specific camera model against Hanwha's compatibility matrix or consult your integrator to confirm fit before ordering.
Q: Can I mount the SBF-100B1 both indoors and outdoors?
A: Yes. The aluminum construction and corrosion-resistant finish handle indoor retail, commercial, and outdoor surveillance deployments. Temperature and humidity extremes are tolerated, though you should confirm your specific climate zone against the camera's operating temperature range.
Q: Does the backbox require any special wiring or power connections?
A: No. The SBF-100B1 is a passive mounting accessory. All wiring and power connections are handled by the camera itself via your PoE network infrastructure.
Q: What tools do I need to install the SBF-100B1?
A: Standard installation hardware (screws, anchors) and basic hand tools typical for mounting security equipment. Refer to the mounting guide included with the backbox for substrate-specific fastening recommendations.
Q: Can I use this backbox with third-party fisheye cameras?
A: The SBF-100B1 is designed and tested for Hanwha fisheye models. Mechanical compatibility with other brands is not guaranteed and should not be assumed.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBF-100B1 is a straightforward but essential piece of infrastructure for any Hanwha fisheye deployment. Its aluminum construction and corrosion-resistant finish mean you're not fighting rust or material degradation over a 3–5 year operating window—a real cost avoidance when labor to remount a camera in a high ceiling or outdoor location runs $500+.
Technical Highlights:
- Aluminum Material: Provides rigidity without excess weight, critical for ceiling mounts where load limits are often overlooked. Corrosion resistance eliminates zinc-plating failures common in humid or salty environments.
- Weatherproof Design: Handles thermal cycling and direct moisture exposure without performance loss—non-negotiable for outdoor retail canopies, parking structures, and warehouse perimeters where temperature swings can exceed 80°F daily.
- Fisheye-Specific Engineering: Supports the precise optical alignment panoramic sensors require. A sloppy mount introduces tilt, which warps the 180–360-degree field and makes downstream video analytics (people counting, loitering detection) unreliable.
Deployment Considerations:
- Verify mounting substrate compatibility before installation—drywall anchors won't work in drop ceilings, and concrete requires hammer drill anchors. The backbox itself is rugged, but the install is only as good as the substrate.
- The SBF-100B1 is passive—it adds no power draw, no network latency, and no maintenance burden. Its only job is to stay level. Don't overthink it, but don't skimp on fasteners either.
For retail or municipal deployments where fisheye panoramic coverage is the primary requirement, the SBF-100B1 is a no-nonsense choice. It won't wow anyone, but it won't fail you either—and in surveillance, boring reliability beats exciting failure every time.
