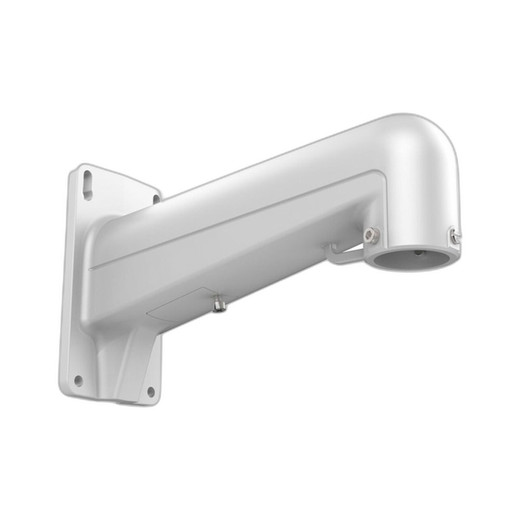

Hikvision WMP-L Wall Mount PTZ - Long
Overview
The Hikvision WMP-L is a dedicated wall-mounting solution engineered to support pan-tilt-zoom cameras in outdoor and exposed indoor surveillance deployments. Built from aluminum alloy with full waterproof protection, this long-format mount delivers the structural integrity required for extended-reach PTZ installations where vibration, weather, and sustained mechanical motion are daily realities. The WMP-L is purpose-built for facilities integrators and IT architects who need predictable, code-compliant stability without custom fabrication.
Key Features
- Aluminum Alloy Construction: Resists corrosion in salt-air and industrial environments — meaning less maintenance overhead and longer asset lifecycle than steel. Aluminum also dissipates heat from motor-driven PTZ movements, reducing thermal stress on the mount and camera housing.
- Waterproof Design: Eliminates water ingress into fasteners and connection points. Critical in perimeter deployments where rain runs down the wall and collects at mounting interfaces — a common failure point in inadequate mounts.
- Extended Reach Form Factor: The long-format design provides the standoff distance needed for PTZ cameras with larger lens housings and pan-tilt motors, preventing interference between the camera body and the mounting surface.
- Safety Rope Included: A critical component for technician safety during installation, maintenance, and lens cleaning. The rope serves as a secondary retention point when working at height or in confined spaces — compliance requirement in many jurisdictions.
- 3× Safety Load Rating: Installation surface must support three times the combined weight of the camera and mount. This design margin accounts for dynamic loads from rapid PTZ movements, vibration harmonics, and worst-case wind gusts — not just static weight.
- Wall-Mounted Deployment: Ideal for building facades, perimeter walls, and elevated installation points where ceiling or pendant mounts are not feasible. Distributes load across a larger surface area than smaller bracket designs.
Integration & Compatibility
The WMP-L is engineered to support Hikvision PTZ camera models. Before purchase, verify your specific PTZ camera's weight and mounting interface specifications against the WMP-L's load rating and fastener pattern. Most modern PTZ cameras use standardized 1/4"-20 or M6 connection points, but confirm with your equipment list to avoid integration delays.
Installation requires a structural wall capable of bearing 3× the combined load. Concrete, reinforced masonry, and steel framing are ideal; gypsum wallboard is not. Fastening method — anchors, bolts, or welding — depends on substrate material and local code requirements. Have your installation contractor review the load calculation before site work begins.
The inclusion of a safety rope means you'll also need appropriate rope storage and inspection procedures as part of your maintenance protocol. Check rope condition quarterly if the mount is in a UV-intensive environment.
Deployment Scenarios
Deploy the WMP-L in perimeter monitoring at industrial facilities, warehouse access points, and building facades where PTZ coverage is required above ground level. Also suitable for weather-exposed environments — parking structures, loading docks, and exterior fence lines. Avoid direct mounting over pedestrian areas unless a secondary safety mechanism (cable retention, shroud) is added to meet fall-object hazard codes.
Frequently Asked Questions
Q: Does the WMP-L work with non-Hikvision PTZ cameras?
A: The WMP-L is designed and tested for Hikvision PTZ models. Compatibility with other brands depends on matching fastener patterns, weight limits, and mounting interfaces. Consult the camera's installation guide and compare thread sizes and load ratings before mounting.
Q: What is the maximum camera weight the WMP-L can support?
A: The specification requires the wall surface to support 3× the combined weight of the camera and mount. The maximum supported weight depends on your wall substrate — consult your structural engineer or contractor for your specific installation surface.
Q: Is a separate power conduit required for PTZ motors when using the WMP-L?
A: The WMP-L is a mechanical mount only. Power and control cabling for the PTZ camera must be routed separately — typically through conduit along the wall or through a wire management channel. Plan cable runs during site survey.
Q: Can the WMP-L be used indoors?
A: Yes. While designed for outdoor durability, the WMP-L functions in controlled indoor environments — warehouse ceilings, loading bays, and covered structures. The waterproof design adds no downside in dry installations.
Q: Does the WMP-L include fasteners for wall mounting?
A: The mount includes a safety rope. Fasteners (anchors, bolts, washers) must be selected based on your wall substrate and local building codes. Consult your installer or structural engineer for appropriate fastening hardware.
Q: How do I service or replace the safety rope?
A: The rope should be inspected quarterly for wear or UV degradation. Replacement rope is a standard item — contact your vendor or Hikvision support for part numbers compatible with the WMP-L attachment points.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WMP-L (often searched as WMP L) is a straightforward, no-compromise accessory that solves a specific problem: anchoring heavy PTZ cameras to vertical surfaces without vibration creep or weather-related fastener corrosion. If your deployment calls for wall-mounted pan-tilt-zoom cameras and you're building to code, this mount handles it with aluminum durability and a sensible 3× safety margin on load rating.
Technical Highlights:
- Aluminum Alloy with Waterproof Sealing: Corrosion resistance translates directly to longer intervals between maintenance inspections and lower lifecycle cost — especially relevant in coastal or high-humidity deployments where salt air corrodes steel fasteners within months.
- 3× Load Margin: Not arbitrary — this accounts for dynamic stress from rapid pan and tilt movements. A PTZ camera executing 60° pan sweeps generates harmonic loads that static load ratings miss. The 3× buffer keeps the mount in the elastic zone, preventing micro-fractures at the weld or fastener interface.
- Extended Reach Design: Long-format geometry reduces cantilevered bending moment on the wall attachment point — the farther the camera center-of-gravity sits from the wall, the greater the rotational force. The long format distributes that force across a larger fastener pattern.
Deployment Considerations:
- Wall substrate is non-negotiable. Concrete or reinforced masonry only; gypsum board will fail under dynamic PTZ loads. Have a structural engineer sign off on anchor sizing before installation.
- The included safety rope is not decorative — it's a code requirement in most jurisdictions when working at height. Inspect it quarterly and budget for replacement every 2–3 years if the mount is in direct UV.
- Cable routing is your problem, not the mount's. PTZ motors draw significant current and generate EMI — run power and control in separate conduits, and use shielded cable for control signals. Plan this before wall penetrations are cut.
The WMP-L is the right choice for warehouse and industrial perimeter deployments where you need PTZ coverage on vertical surfaces and don't want to retrofit custom brackets or worry about corrosion failures. It's not for ceiling mounts, pendant installations, or indoor-only environments where a lighter bracket would suffice — but for exterior facade and wall-mounted PTZ work, it's a solid, specification-driven selection.
